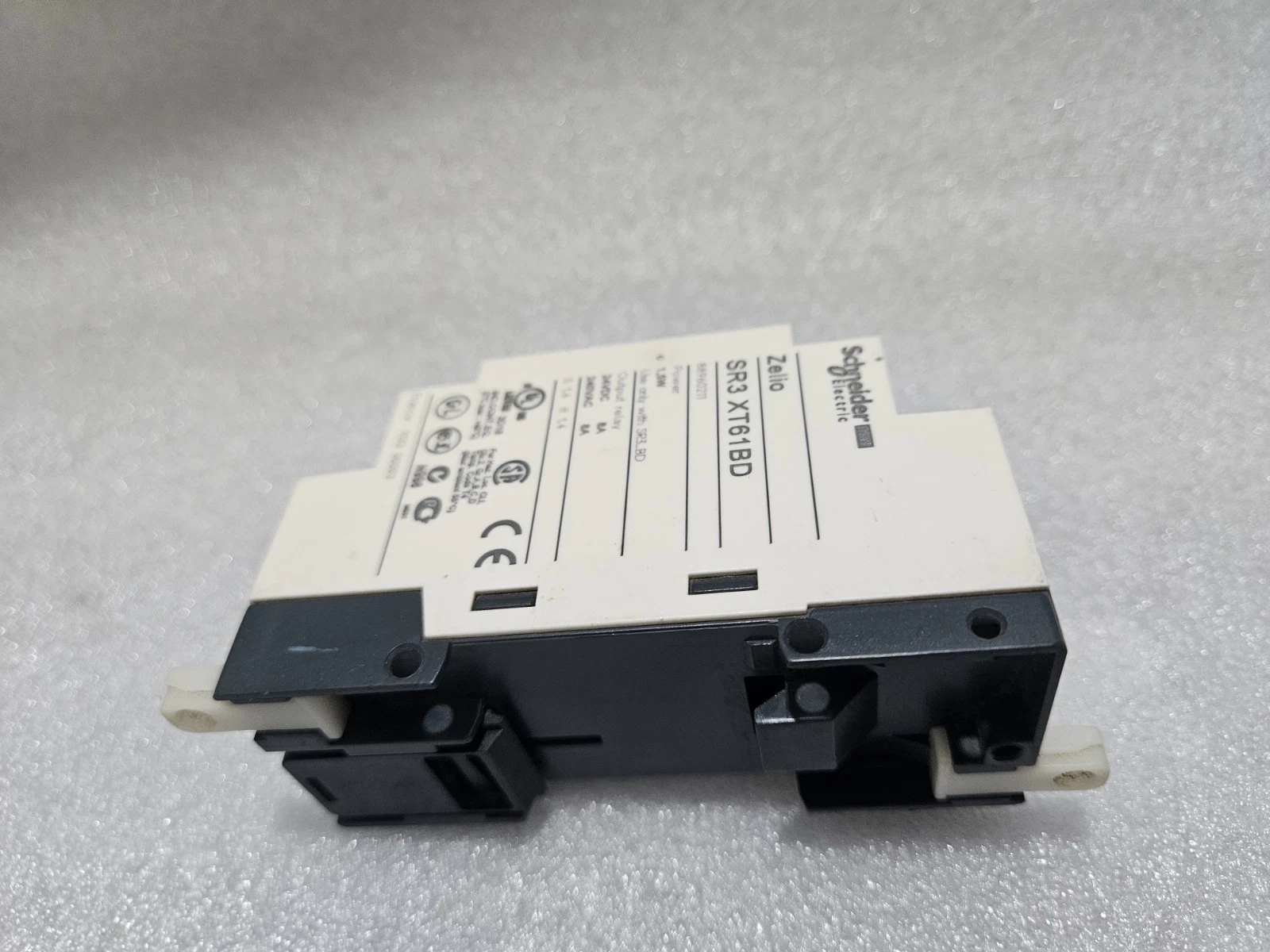

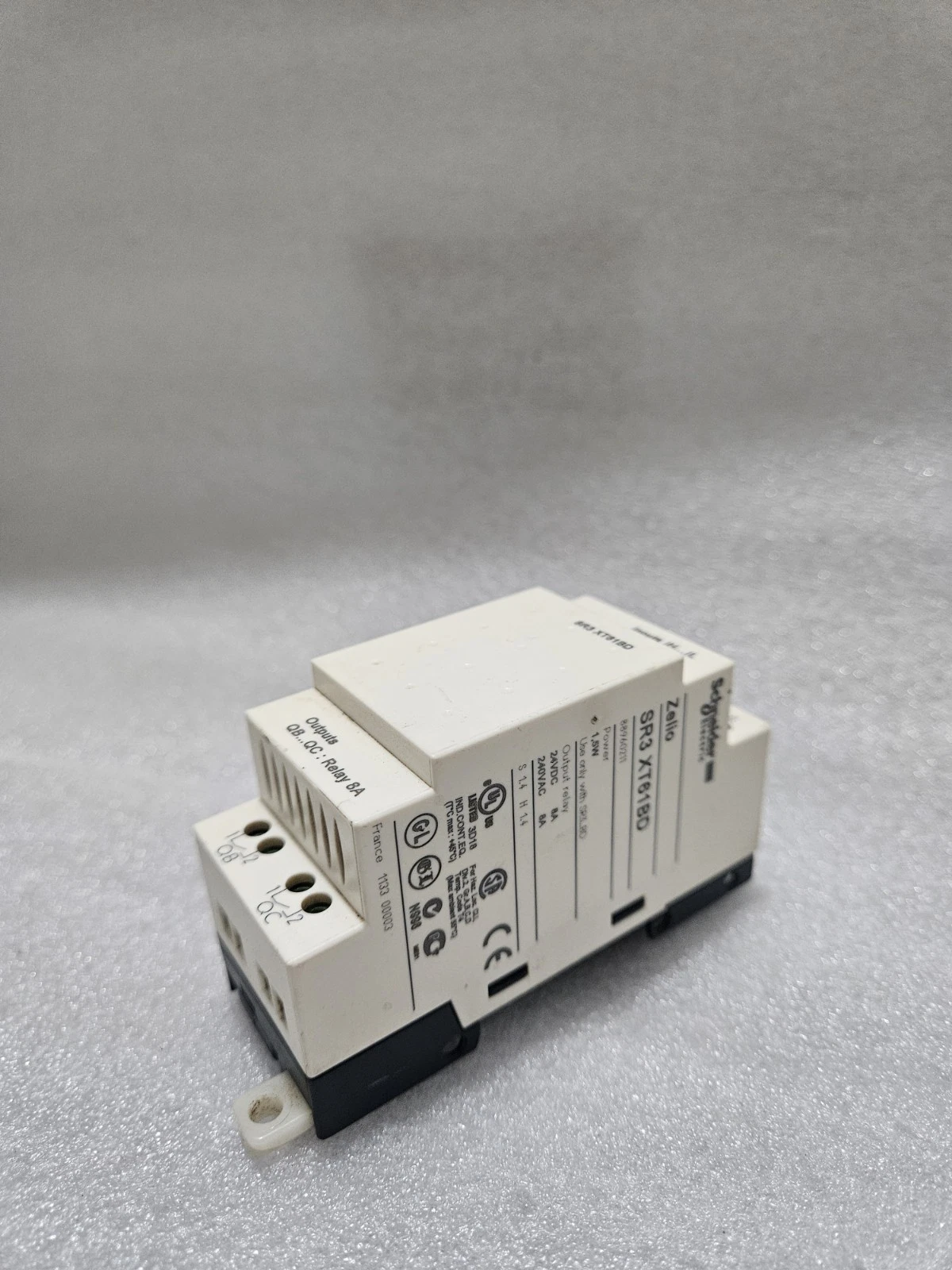

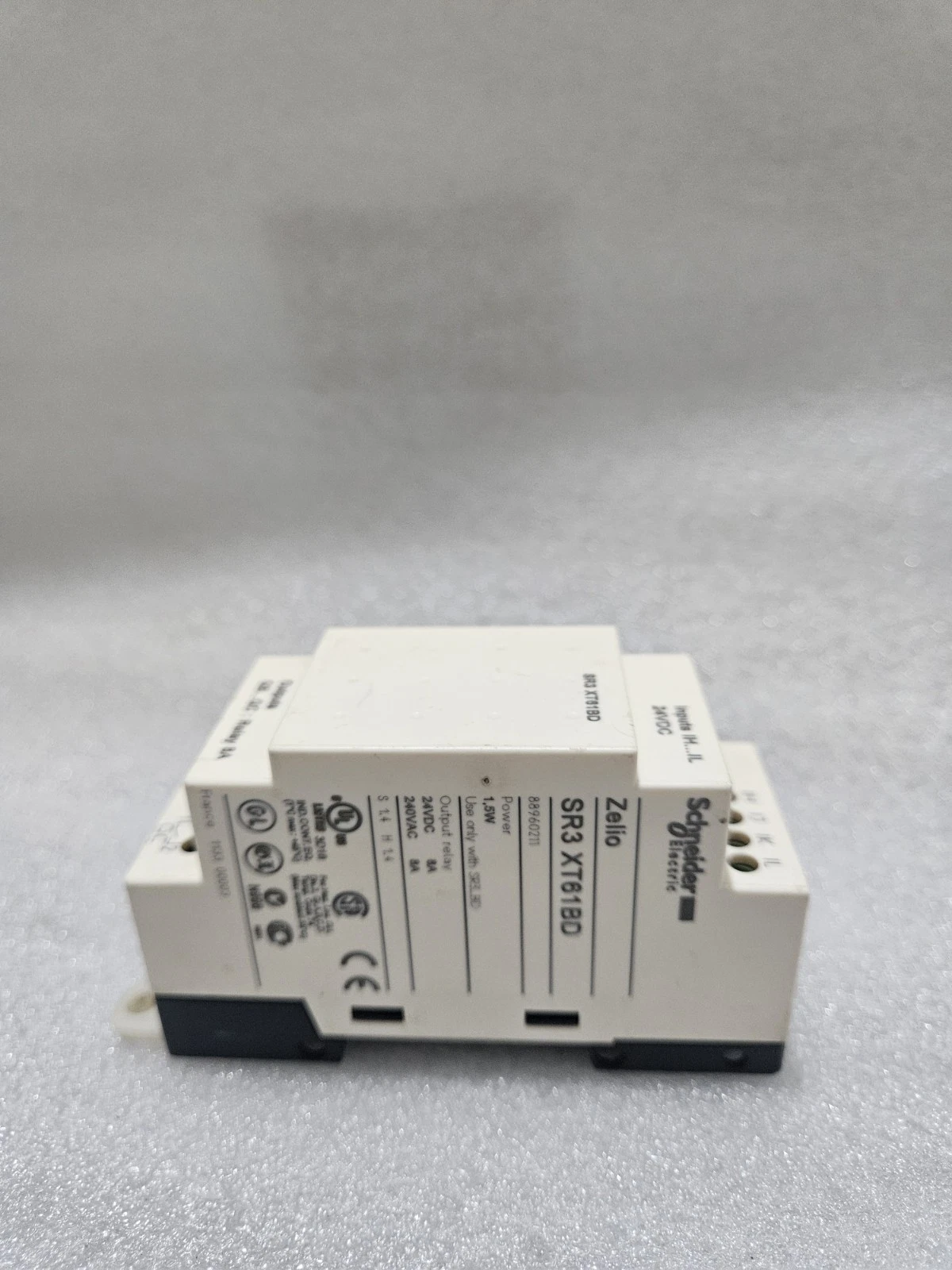

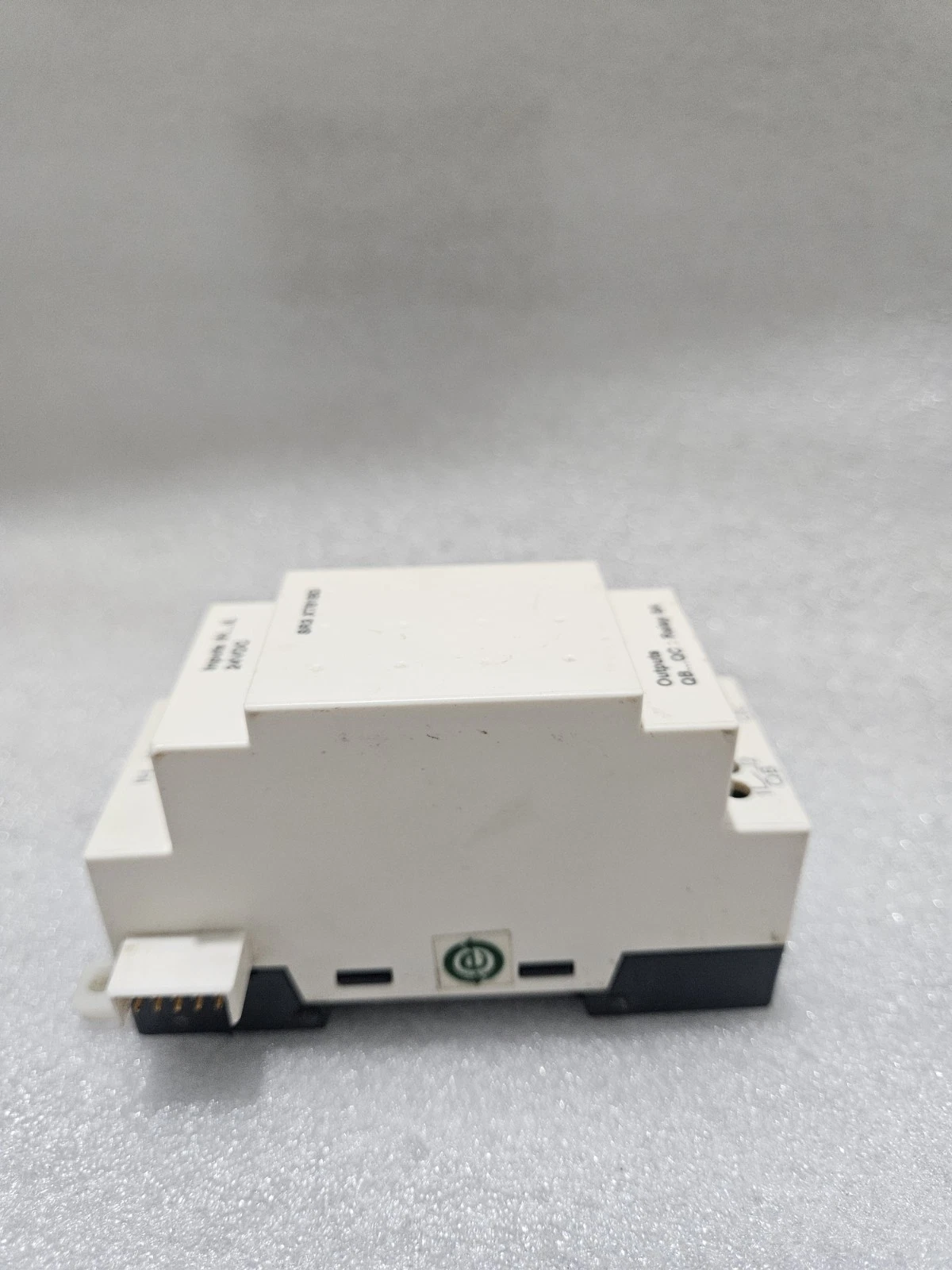

SCHNEIDER ELECTRIC SR3 XT61BD Used Working Zelio Logic I/O Extension

Product Overview

The Schneider Electric SR3 XT61BD is a versatile Digital I/O Expansion Module designed specifically for the Zelio Logic smart relay series (SR3). This module is an essential component for increasing the automation capacity of a Zelio base controller, adding 6 additional discrete points (4 inputs and 2 outputs). As a Used Working unit, it provides a cost-effective way to scale up machine control systems, such as small-scale lighting, HVAC, or conveyor logic, while maintaining the user-friendly programming environment of the Zelio Soft 2 platform.

Key Features

• Compact I/O Expansion: Adds 4 Digital Inputs and 2 Relay Outputs to any compatible Zelio Logic SR3 base unit.
• 24V DC Operation: Engineered for standard industrial control circuits, ensuring seamless power compatibility with 24V DC Zelio controllers.
• Versatile Digital Inputs: The 4 inputs are designed for 24V DC signals from switches, proximity sensors, or limit switches.

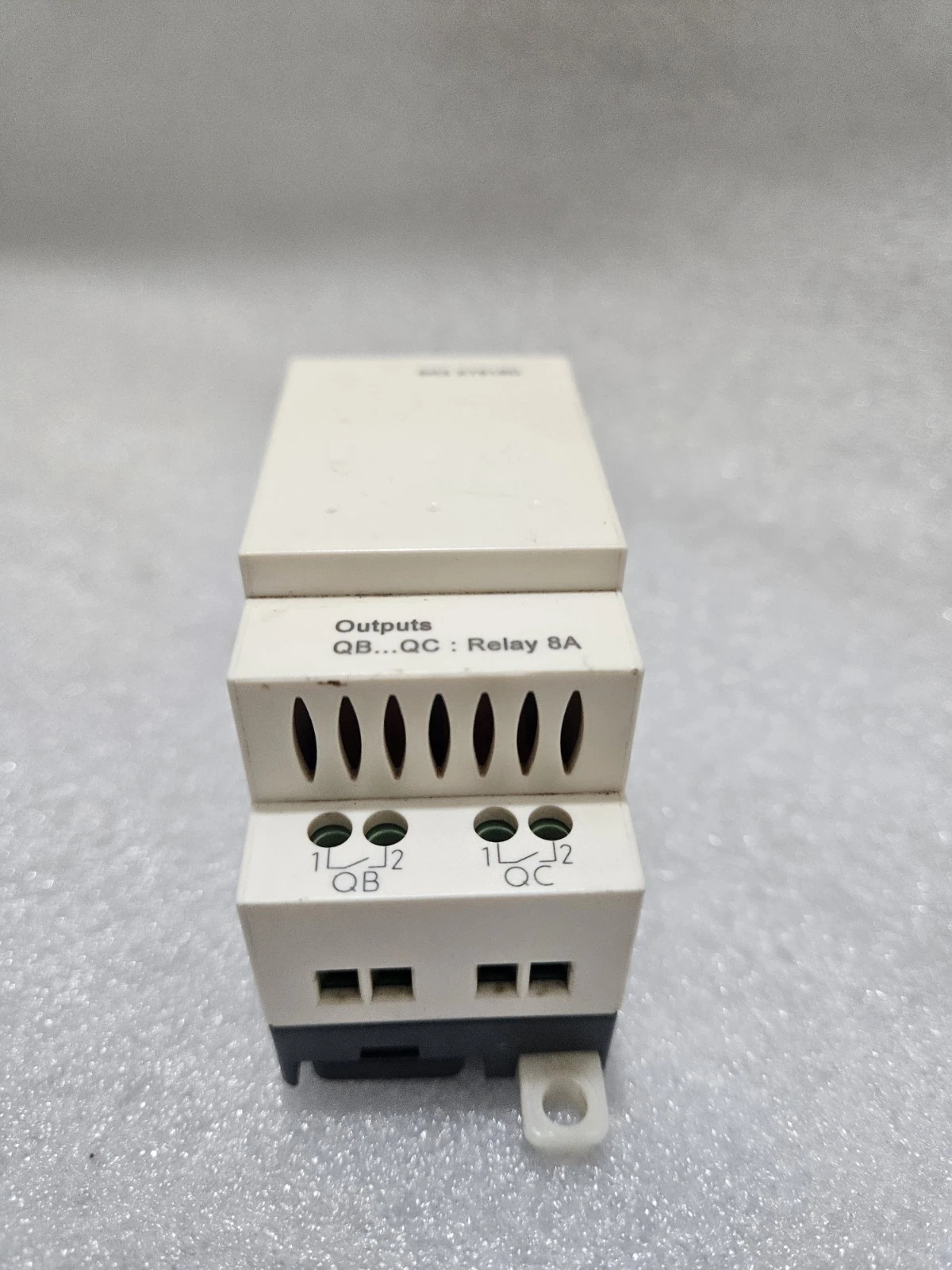

• Reliable Relay Outputs: Features 2 integrated relay outputs capable of switching both AC and DC loads, providing high flexibility for different actuator types.
• Direct Bus Connection: Snaps easily onto the side of the Zelio Logic base controller, establishing an immediate data and power link without external bus wiring.
• Diagnostic LEDs: Equipped with front-facing status indicators for every input and output point, simplifying on-site troubleshooting and commissioning.
• Space-Saving Design: Maintains a slim profile on the DIN rail, allowing for high-density I/O configurations in small electrical enclosures.

Item Condition (Used Working)

• Functional Status: Used Working. This expansion module has been professionally bench-tested with a Zelio SR3B261BD base controller. All 4 inputs and 2 relay outputs have been verified for stable signal switching.

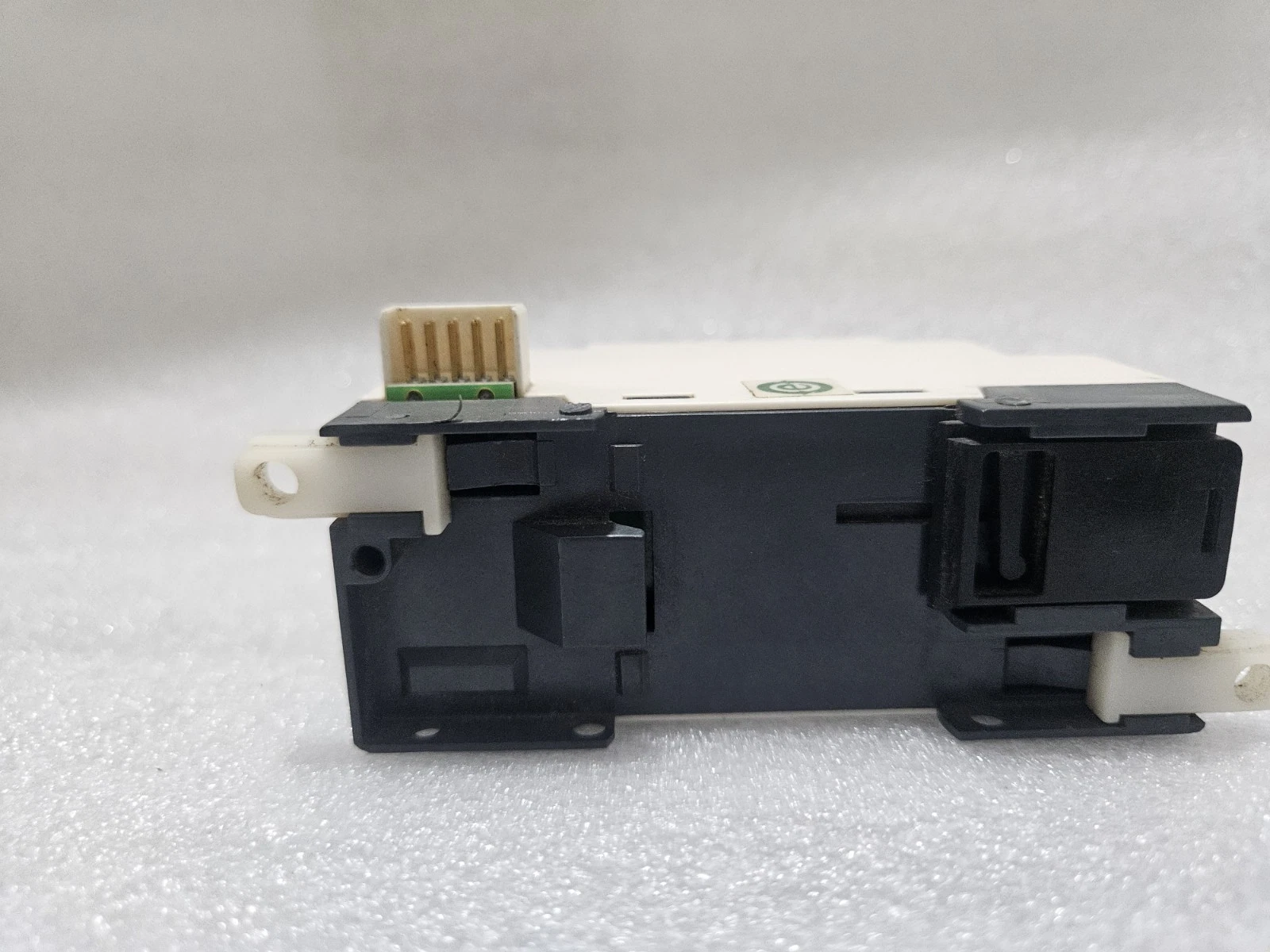

• Physical State: Clean industrial condition. The side-connector pins are straight and clean. The DIN rail mounting clip is fully functional.
• Technical Integrity: No "I/O Error" flags were triggered during the hardware handshake test. The unit has been handled in an ESD-safe environment and cleared of industrial dust.
• Note: Professional installation is recommended. This module is an expansion unit and requires a compatible Zelio Logic SR3 base controller (24V DC version) to operate.

Package Includes

1. 1 x Schneider Electric SR3 XT61BD Zelio Logic Expansion Module
