PRO-FACE EXM-DDI8DT Used Working GP4000 Series Expansion Module

Product Overview

The Pro-face EXM-DDI8DT is a high-performance Digital I/O Expansion Module specifically designed for the GP4000 Series (specifically the GP4000M modular HMI units). This compact module allows users to integrate local control logic directly into their HMI setup, effectively combining visualization and discrete I/O handling in one footprint. Featuring 8 Digital Inputs (24V DC) and 8 Transistor Outputs (Source), it is an ideal solution for small-scale automation tasks where space is at a premium. This Used Working unit is a reliable choice for maintaining or expanding Pro-face modular HMI systems without the need for an external PLC.

Key Features

• Modular Integration: Designed to click directly onto the rear of GP4000M Series modular HMIs, providing a seamless hardware link.
• Dual Functionality: Equipped with 8 discrete inputs and 8 source-type transistor outputs, offering a balanced I/O mix for sensing and acting.
• High-Density Design: Packaged in a slim, rugged industrial housing that minimizes cabinet depth requirements.
• 24V DC Logic: Standard industrial voltage compatibility for easy integration with common sensors, switches, and small solenoids or relays.
• Status Indicators: Includes front-facing LED diagnostics for each I/O point, allowing for rapid visual troubleshooting during machine operation.
• Flexible Connectivity: Utilizes a removable terminal block (check photos) or high-quality headers to simplify wiring and field maintenance.
• Pro-face Reliability: Built to the high standards of Schneider Electric’s Pro-face brand, ensuring long-term durability in demanding environments.

Item Condition (Used - Working)

• Functional Status: Used - Working. This module has been professionally decommissioned from a functional GP4000 system. It has been bench-tested for signal response across all input and output channels.
• Physical State: Shows minor signs of industrial use, such as light scuffs on the plastic casing. The mounting interface is clean and free of damage.
• Technical Integrity: The internal circuitry is stable, and the I/O status LEDs are fully functional. The unit is ready to be recognized by your GP-Pro EX software configuration.

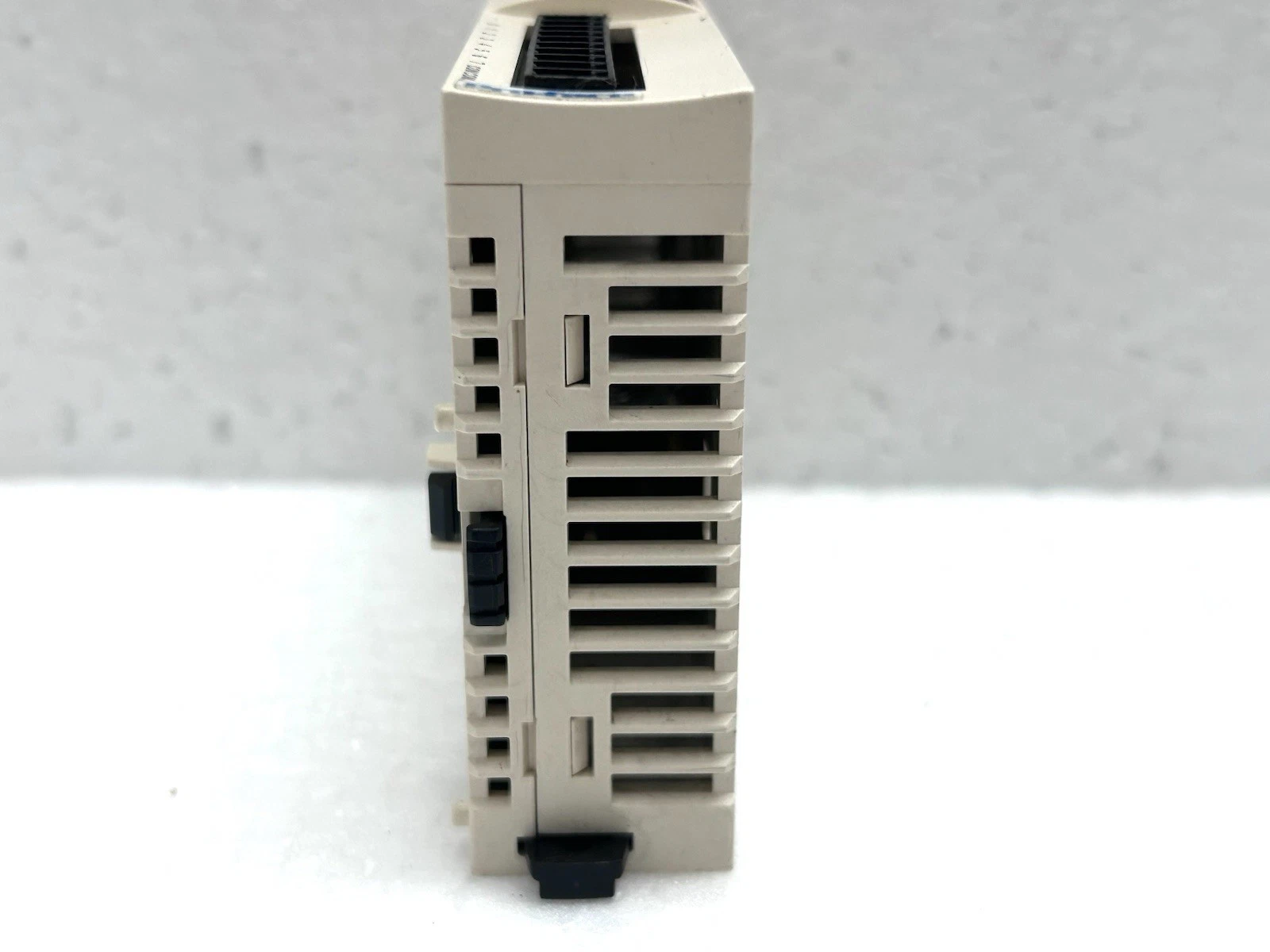

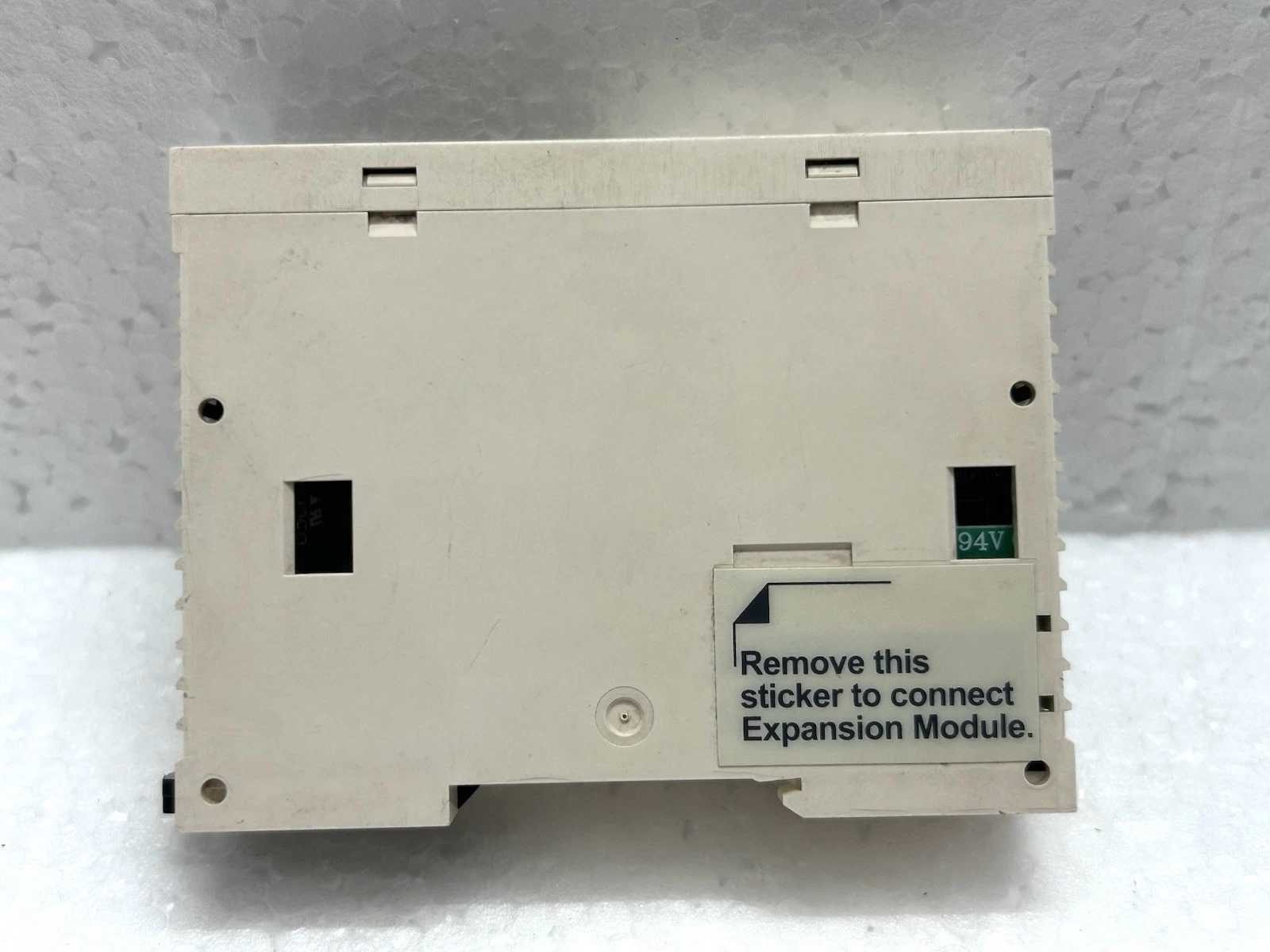

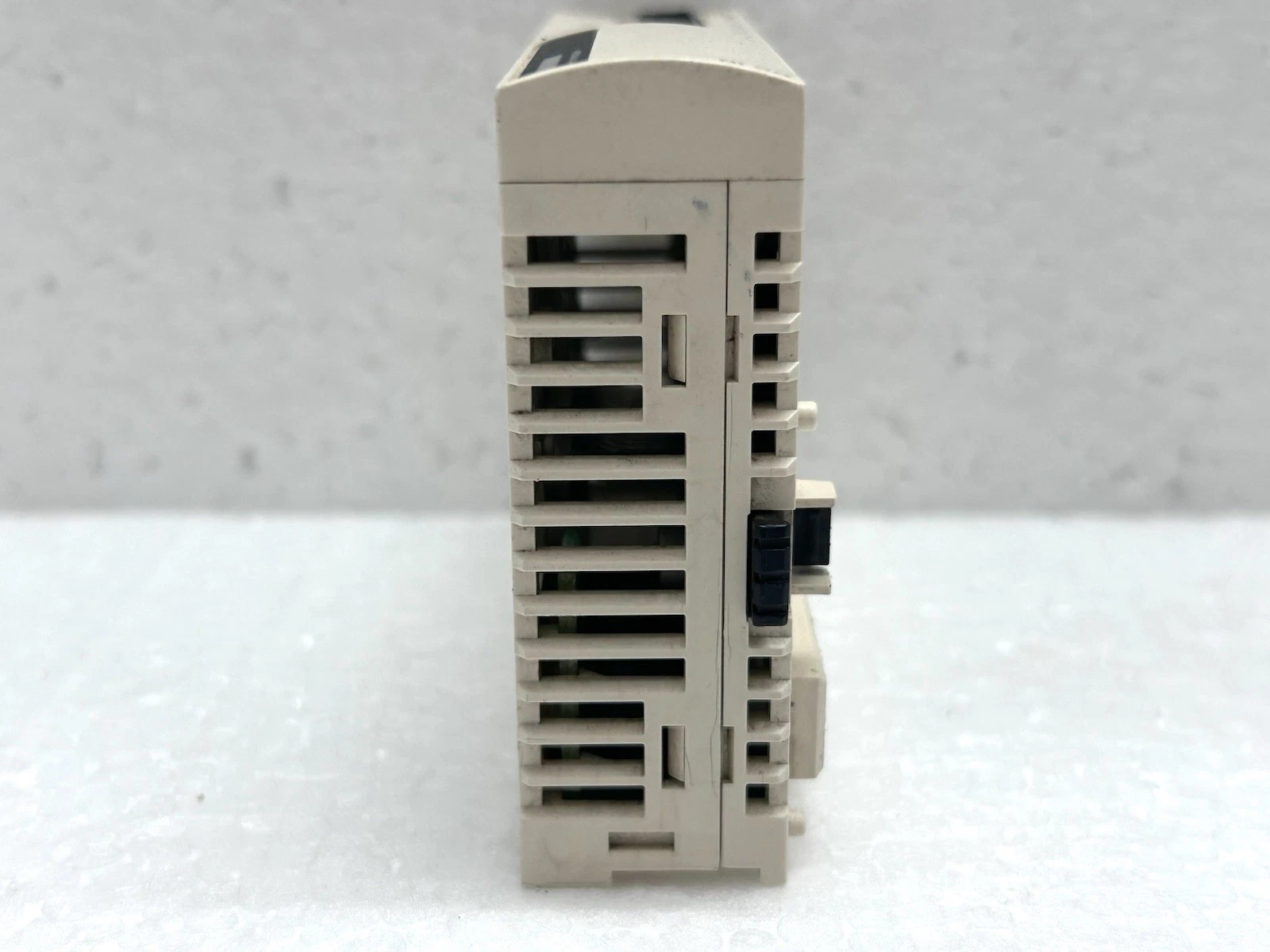

• Visual Reference: Please refer to the high-resolution images to verify the terminal configuration and connector status; the unit pictured is the exact EXM-DDI8DT you will receive.

Package Includes

1. 1 x Pro-face EXM-DDI8DT Expansion Module (Used)
2. Note: Does not include original packaging, the HMI head unit, or mounting screws unless shown in the photos.
