PR ELECTRONICS 5225.2 Used Working Signal Converter Modules

Product Overview

The PR Electronics 5225.2 is a professional-grade Programmable f/I-f/f Converter (Frequency-to-Current/Frequency-to-Frequency). This versatile module is designed to convert pulse or frequency signals from various sensors—such as NPN/PNP, NAMUR, or tacho-generators—into standard analog signals (current/voltage) or relay outputs. Part of the 5000 series, it is widely used for speed monitoring, flow measurement, and pulse counting in demanding industrial processes. As a Used - Working unit, it offers a high-performance solution for signal conditioning with the legendary stability and precision associated with PR Electronics.

Key Features

• Versatile Pulse Input: Accepts inputs from NPN, PNP, NAMUR, contact closures, and tacho-generators with a wide frequency range.
• Dual Output Capability: Provides a programmable analog output (0/4...20 mA or 0...10V) and a frequency/relay output for simultaneous control and monitoring.
• Galvanic Isolation: Features 3-port 2.3 kVAC galvanic isolation between input, output, and power supply to eliminate ground loops and protect control systems.
• Programmable via PC: Can be easily configured using the PReset software and a serial communications interface to set specific input ranges and output characteristics.
• High Accuracy: Delivers high conversion accuracy and stability, even in electrically noisy environments.

Item Condition (Used/Working)

• Functional Status: This module has been professionally removed from an active control cabinet. It has been bench-tested to verify that it accurately processes frequency inputs and generates the corresponding analog output.
• Physical State: Shows standard signs of industrial use, such as minor scuffs on the plastic housing. The DIN rail mounting clip is secure, and all terminal screws are present and functional.

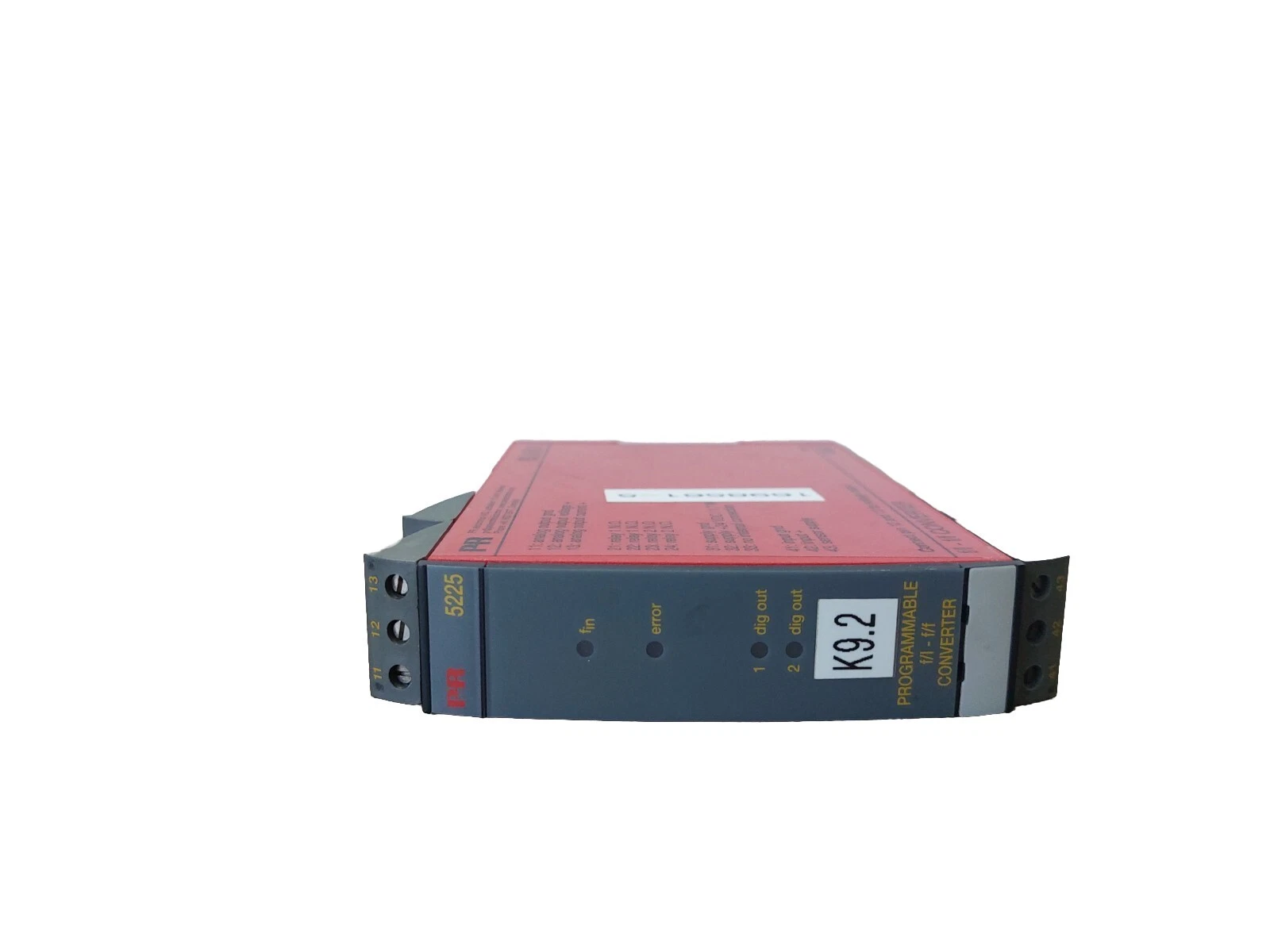

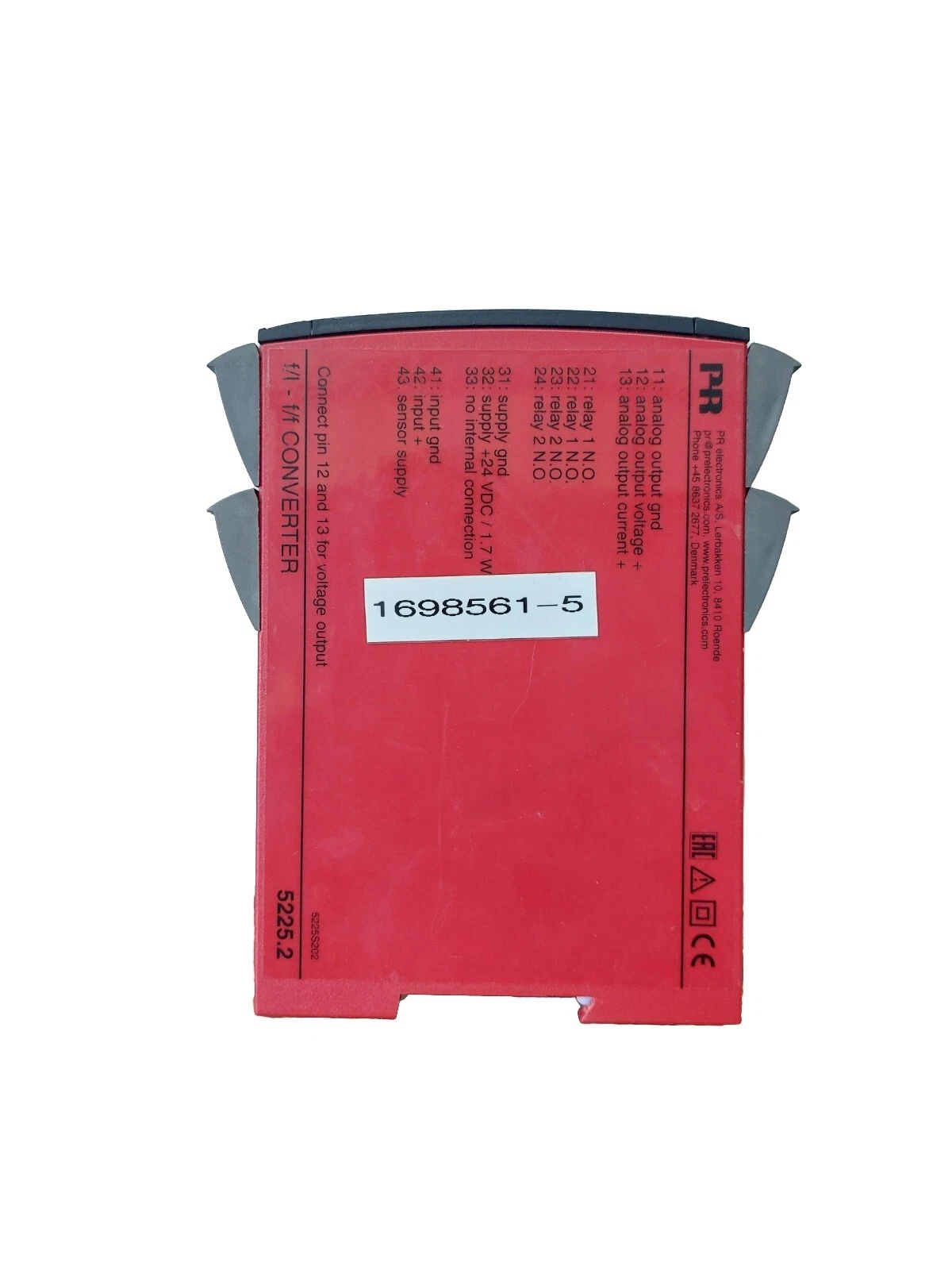

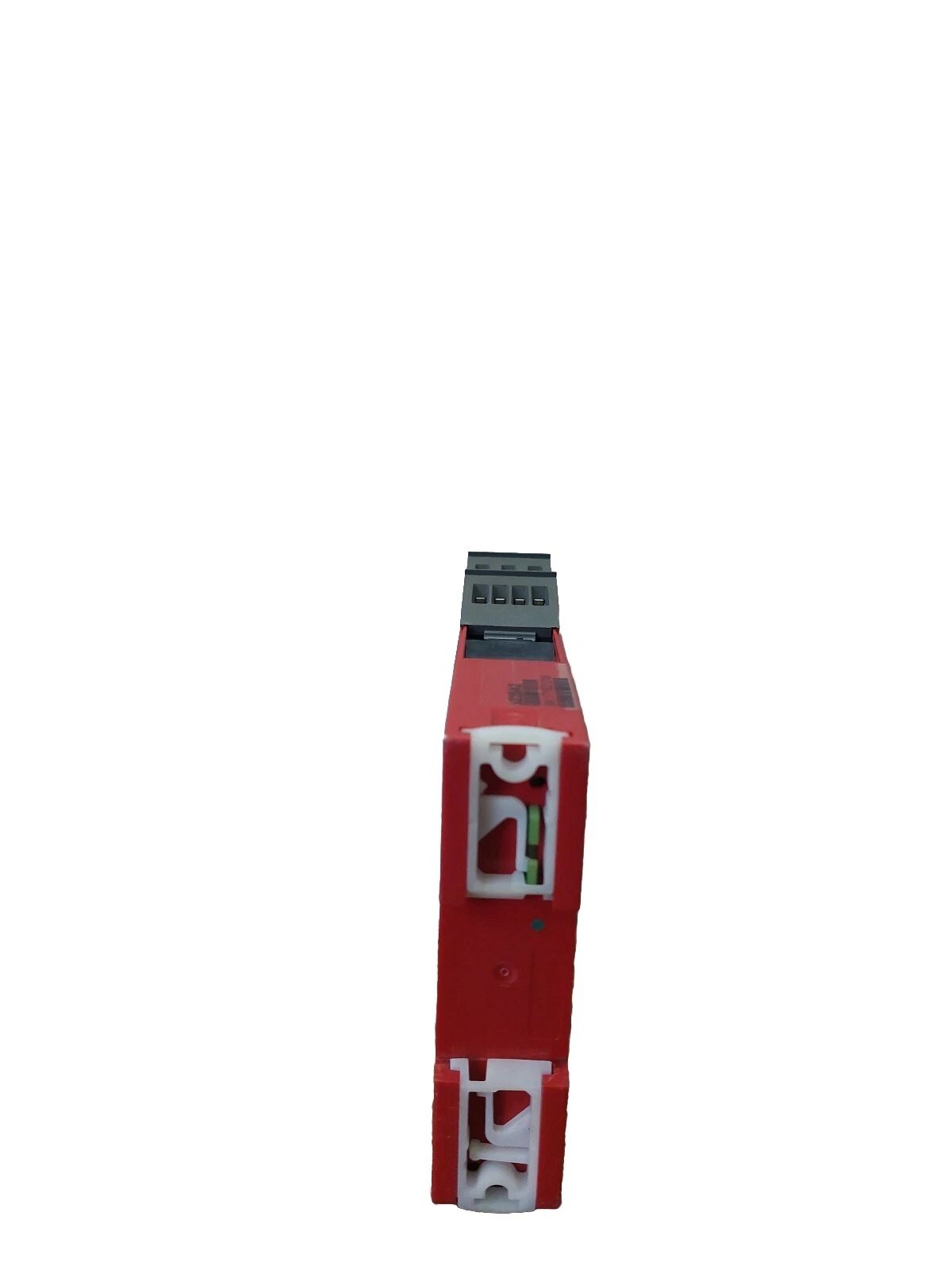

• Visual Reference: Please refer to the high-resolution images to verify the specific power supply version (e.g., 24VDC or Universal AC/DC); the unit pictured is the exact 5225.2 module you will receive.
• Note: Programming requires the PR Electronics 5900-series communications interface, which is not included.

Package Includes

1. 1 x PR Electronics 5225.2 Signal Converter Module
2. Note: Includes only the module. Programming cables, software, and DIN rails are not included.
