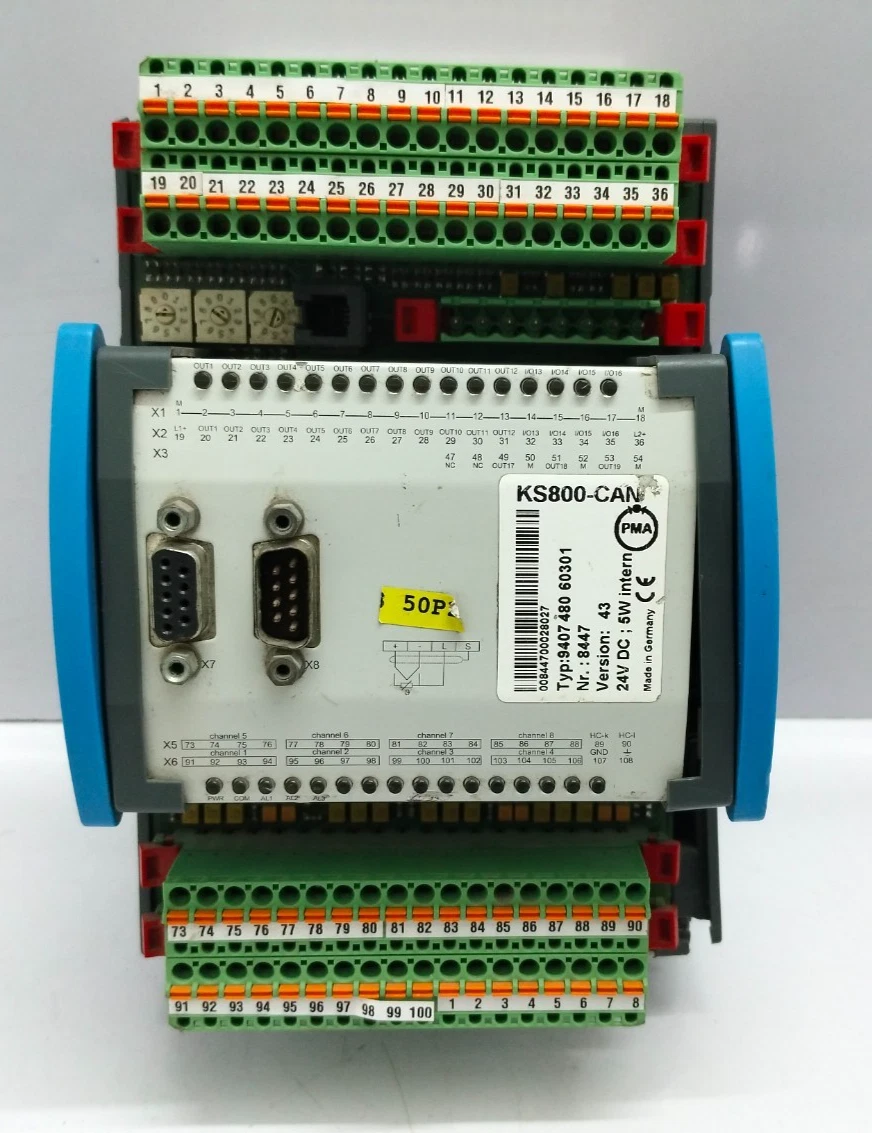

PMA KS800-CAN (9407 480 60301) Used Working KS 800 Temp Controller

Product Overview

The PMA KS800-CAN (9407 480 60301) is a high-performance, rail-mounted Multi-Loop Temperature Controller designed to manage up to 8 independent control zones simultaneously. Engineered by PMA (a West Control Solutions brand), this unit is a staple in the plastics processing, packaging, and textile industries for precise thermal management. This specific model features an integrated CAN/CANopen interface, allowing it to function as a standalone intelligent node within a distributed industrial network. As a Used Working unit, it offers a high-density, space-saving solution for complex multi-zone heating and cooling applications.

Key Features

• 8-Channel Multi-Loop Control: Independently manages up to 8 zones, supporting 2-point, 3-point, cascade, and stepping motor control configurations.
• Integrated CANopen Interface: Features a dedicated CANbus port for high-speed data exchange of process parameters and configuration settings with a master PLC or HMI.
• Universal Input Support: Compatible with a wide range of sensors including Thermocouples (Type L, J, K, N, S, R), Pt100 (RTD), and Melt Pressure sensors (mV).
• Advanced "Self-Tuning" Logic: Automatically optimizes PID parameters for each zone to ensure rapid start-up times and oscillation-free temperature stability.
• Flexible Diagnostic Monitoring: Includes heating current monitoring for each loop to detect heater break or actuator failure in real-time.
• Specialized Start-Up Circuit: Features a selectable start-up function (e.g., reduced power for hot-runner molds) to increase heating element life.
• Rugged Rail-Mount Housing: Designed for 35mm DIN rail installation with plug-in terminal blocks for simplified wiring and maintenance.

Item Condition (Used Working)

• Functional Status: Used Working. This controller has been professionally bench-tested. All 8 input channels have been verified for signal accuracy, and the CANopen communication port is stable.

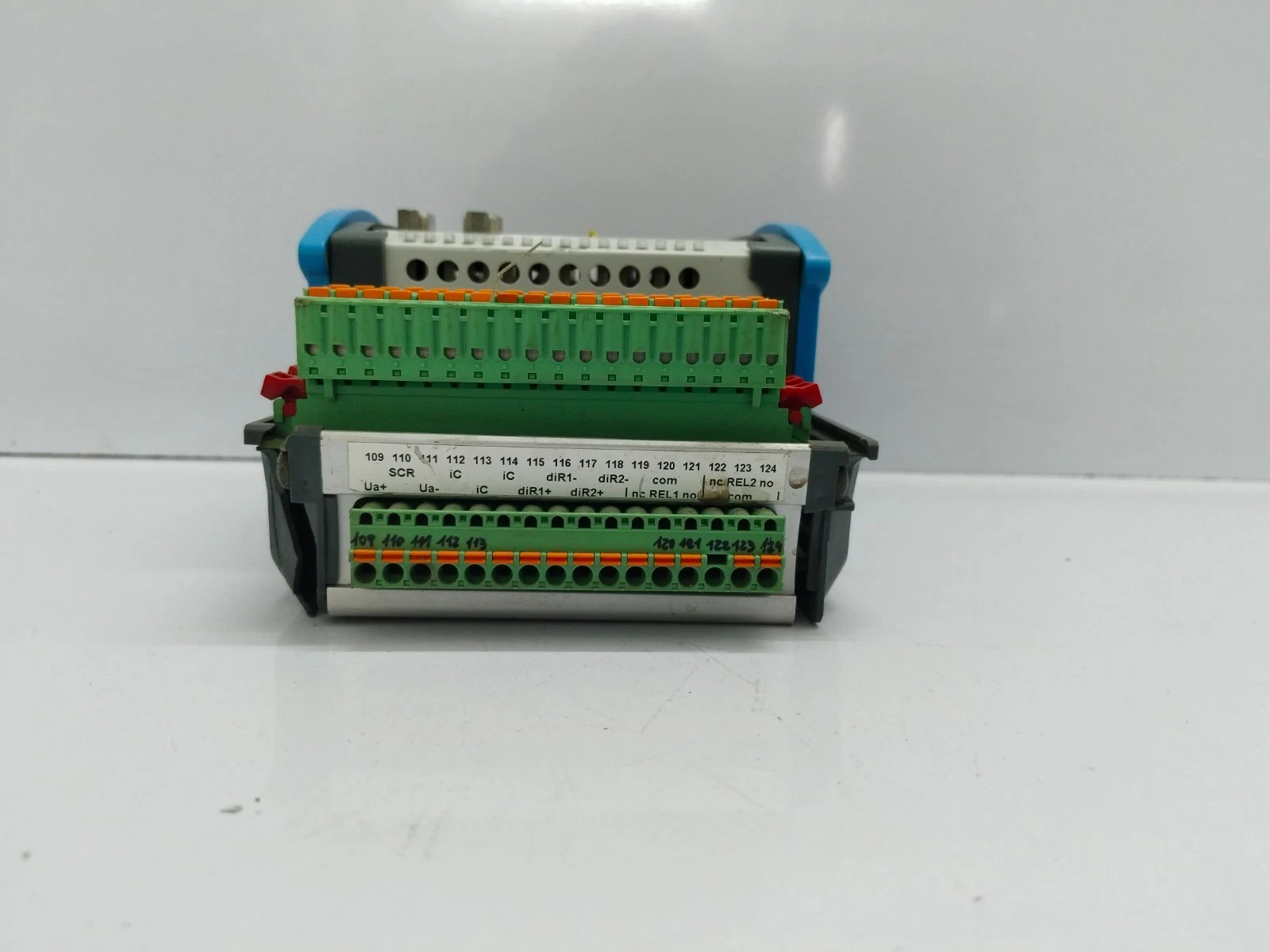

• Physical State: Clean industrial condition. The terminal blocks are included and the screw terminals are in excellent shape. The plastic housing shows standard signs of cabinet mounting but remains intact.

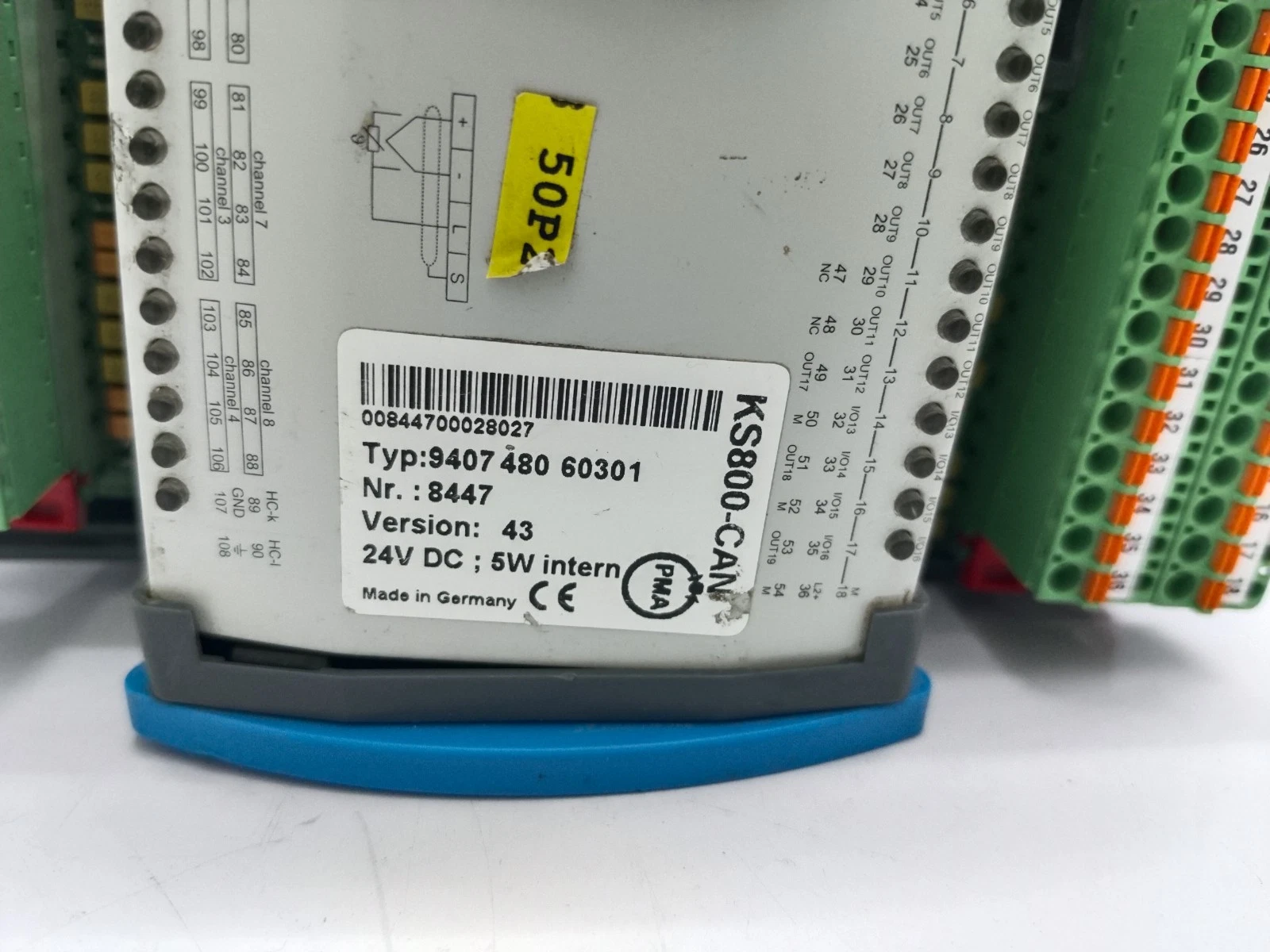

• Technical Integrity: Firmware Version 43 (VER:43) is installed. The internal logic has been cleared of previous process configurations. All status LEDs (Power, Run, Error) have been verified for correct operation.
• Note: Professional installation and configuration via the "BlueControl" engineering tool or a CANopen master are required. This unit operates on a 24V DC power supply.

Package Includes

1. 1 x PMA KS800-CAN Multi-Loop Temperature Controller
