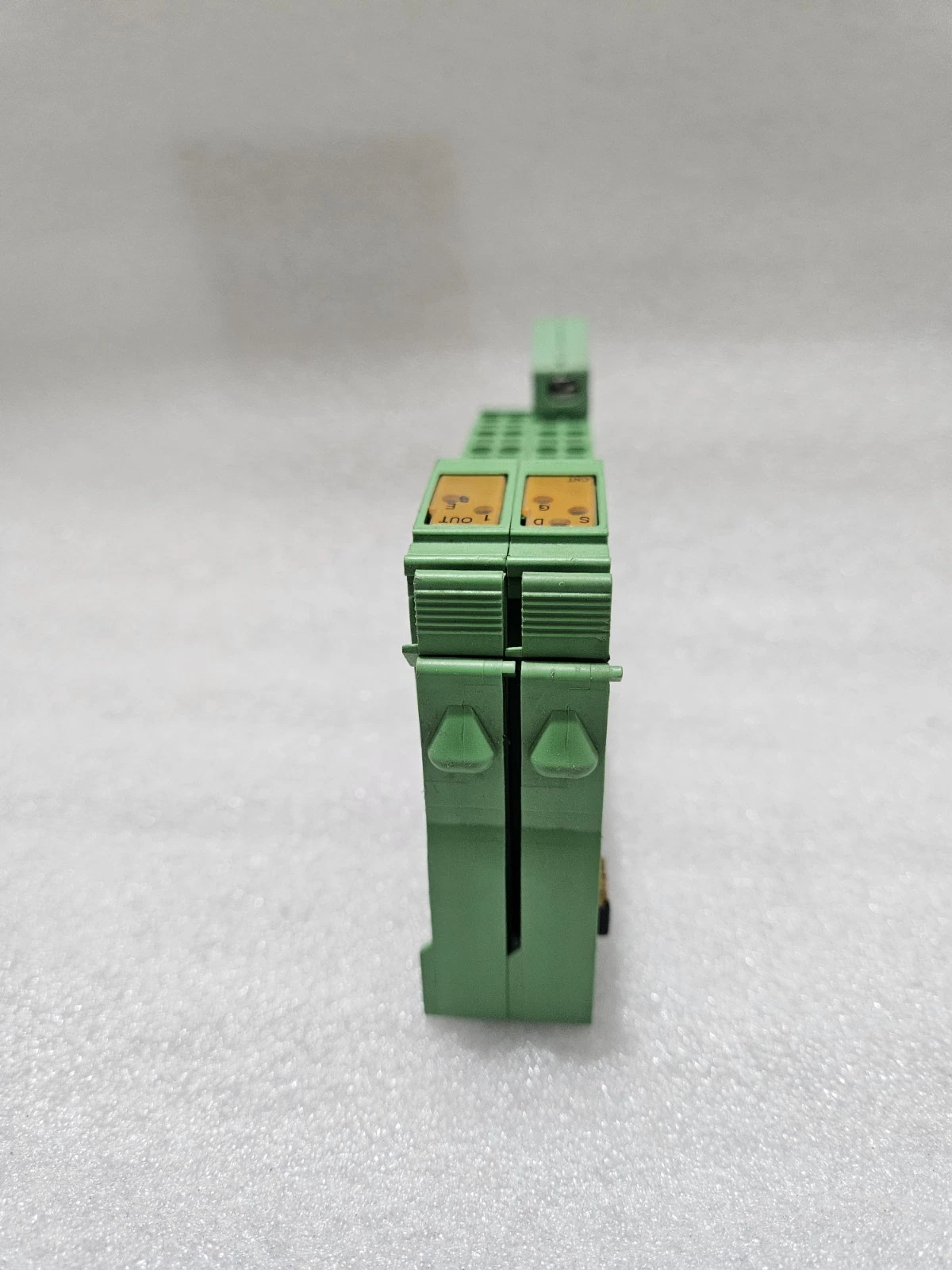

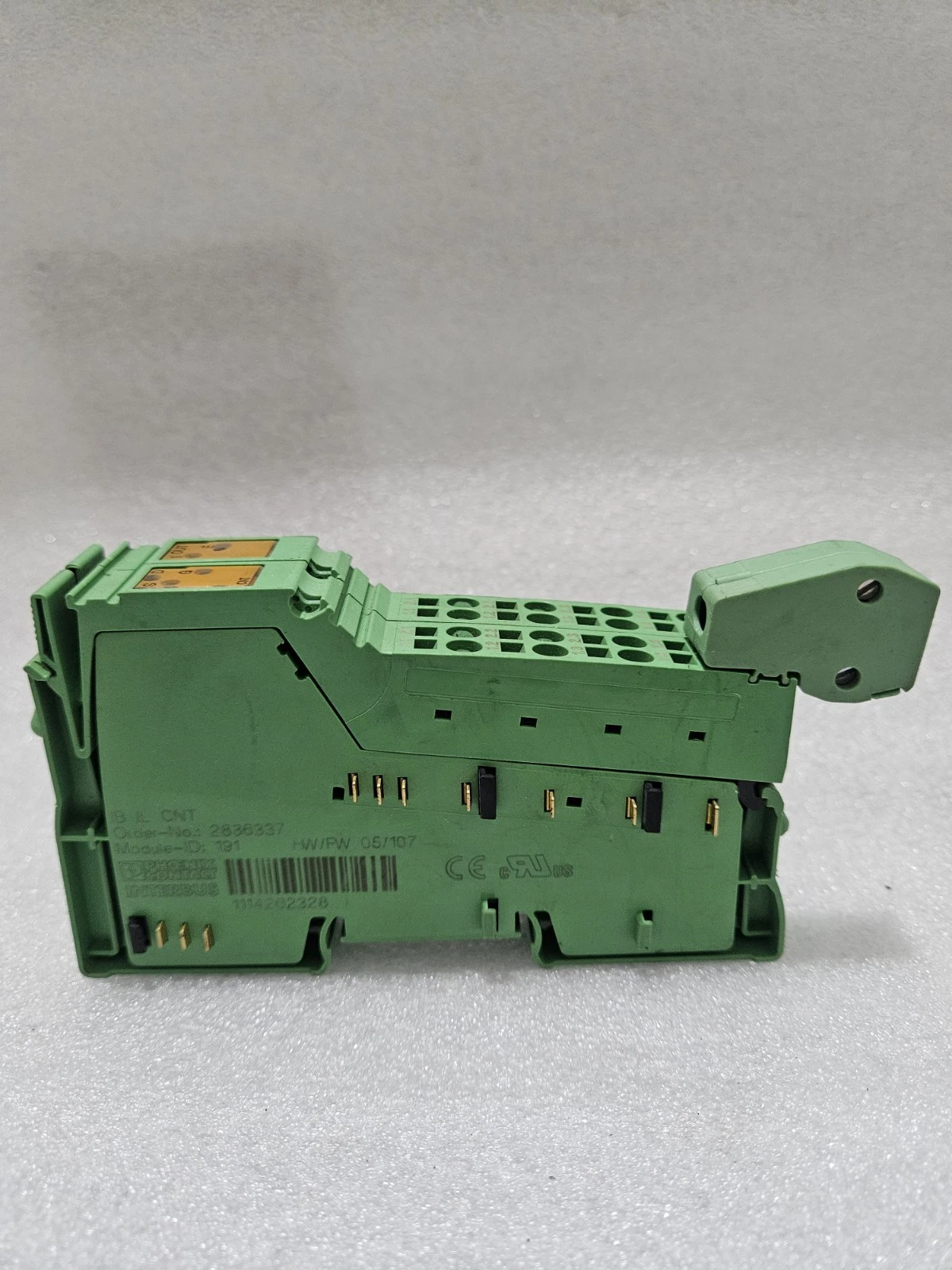

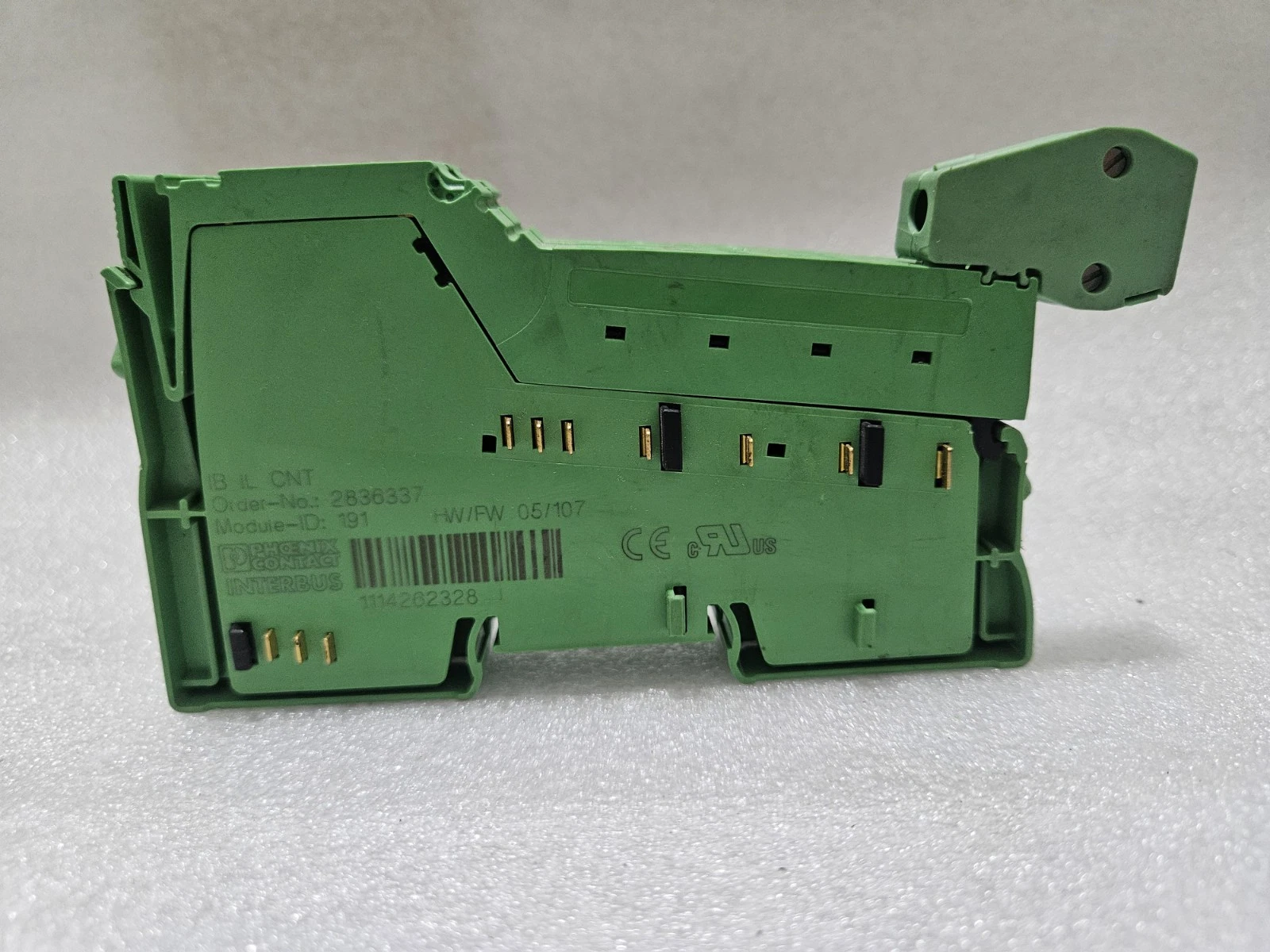

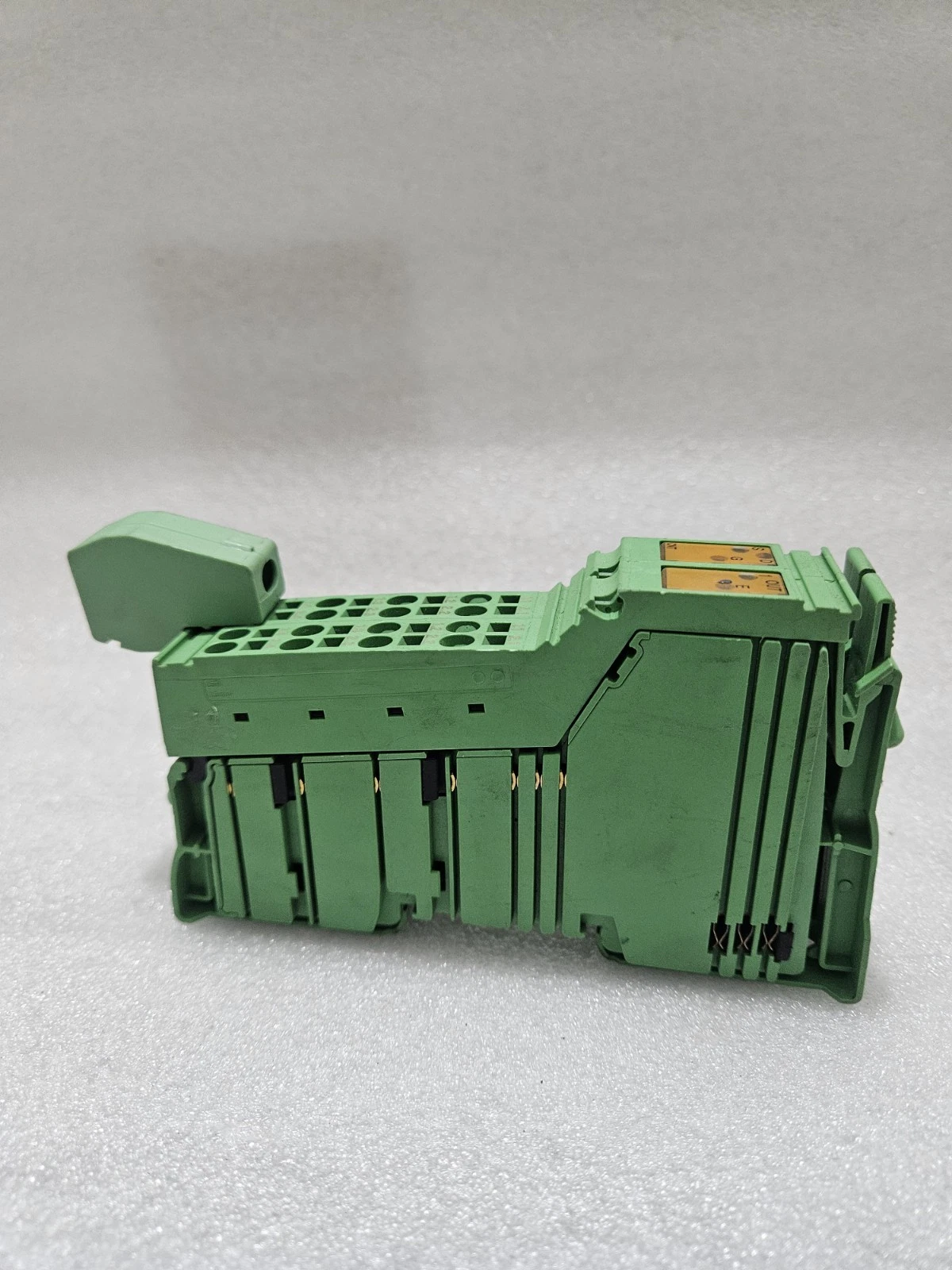

PHOENIX CONTACT IB IL CNT Used Working Counter Module

Product Overview

The Phoenix Contact IB IL CNT is a high-performance Counter/Positioning Module designed for the Inline automation system. This specialized I/O terminal is engineered to process rapid pulse sequences from sensors, rotary encoders, and linear measurement systems. It is an essential component for applications requiring precise distance measurement, frequency counting, or position detection within a PLC-controlled environment. As a Used Working unit, this module provides a reliable and cost-effective interface for high-speed counting tasks in material handling, packaging, and general industrial automation.

Key Features

• Versatile Counting Modes: Supports multiple operating modes including event counting, frequency measurement, and period length measurement.
• High-Speed Processing: Capable of handling input frequencies up to 100 kHz, ensuring accurate tracking of fast-moving industrial processes.
• Integrated Control Outputs: Equipped with an onboard digital output that can be triggered directly by the counter value (e.g., reaching a setpoint), reducing system latency.
• Flexible Signal Inputs: Compatible with a variety of signal sources, including 24V DC initiators, incremental encoders, and proximity switches.
• Inline Modular Design: Features a slim "Inline" form factor that snaps easily into a Phoenix Contact station, utilizing the INTERBUS or PROFINET local bus for data transfer.
• Diagnostic LEDs: Includes status indicators for the local bus, power supply, and counting inputs, facilitating rapid on-site troubleshooting.

Item Condition (Used Working)

• Functional Status: Used Working. This module has been professionally bench-tested. The high-speed counter inputs have been verified for pulse accuracy, and the internal bus communication is fully operational.
• Physical State: Clean industrial condition. The plastic housing and DIN rail locking mechanisms are intact. The wiring terminals are in good shape with no signs of arcing or damage.
• Technical Integrity: The internal logic circuits and optocouplers are functioning within original factory specifications. It has been handled in an ESD-safe environment and is ready for integration.
• Note: Professional installation is recommended. Please ensure your Inline controller’s firmware supports the IB IL CNT module for seamless hardware recognition.

Package Includes

1. 1 x Phoenix Contact IB IL CNT Counter/Positioning Module
2. Standard Inline Connector Plugs (Attached)
