MOXA EDS-208A Used Working Industrial Switch

Product Overview

The Moxa EDS-208A is an entry-level 8-port Industrial Unmanaged Ethernet Switch designed for heavy-duty applications in harsh environments. Part of the EtherDevice™ Series, this switch supports IEEE 802.3 and IEEE 802.3u with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. As a Used Working unit, it provides a rugged, "plug-and-play" networking solution that excels in high-vibration, high-EMI (electromagnetic interference) industrial settings where constant uptime is non-negotiable.

Key Features

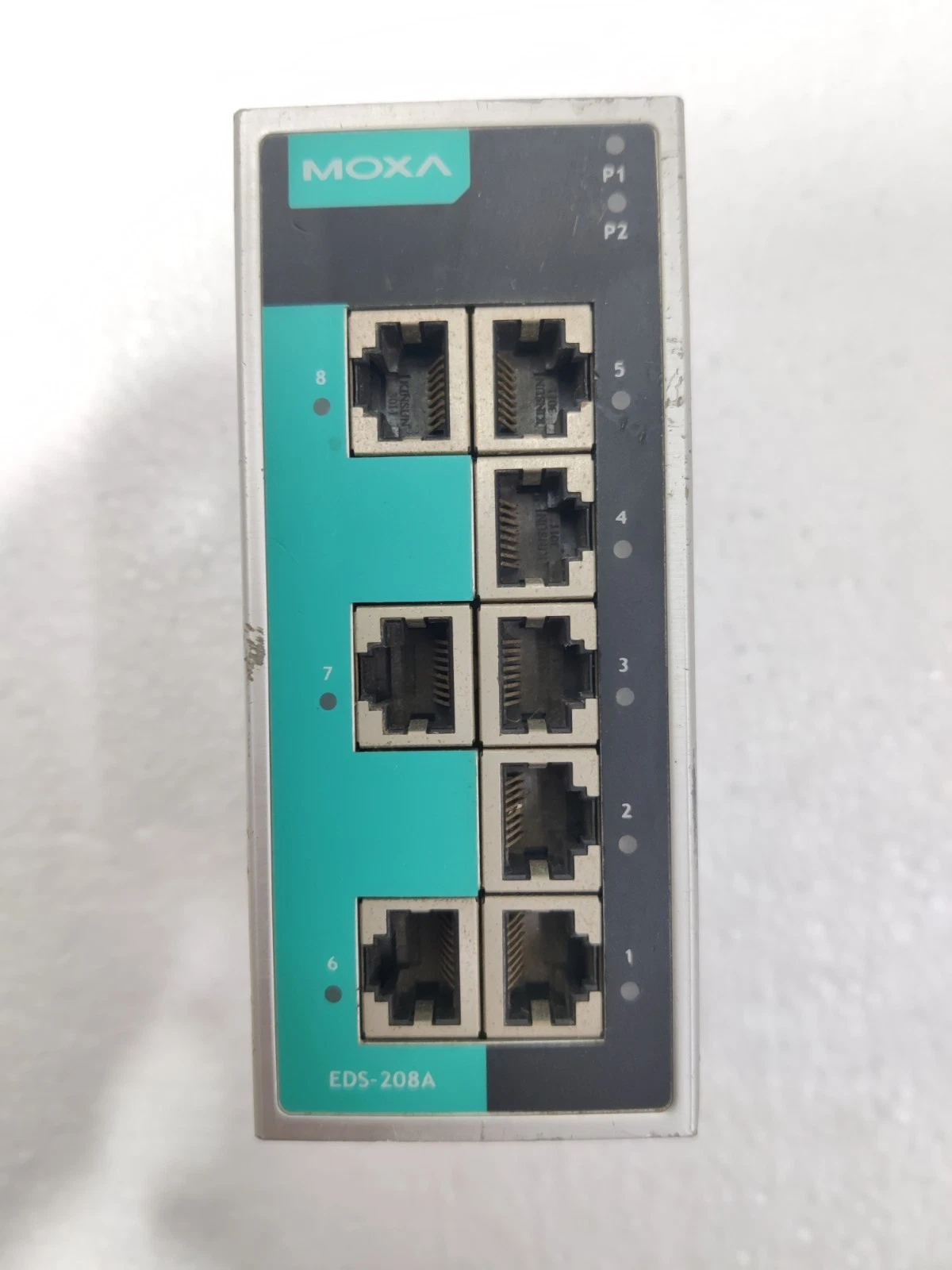

• 8 Fast Ethernet Ports: Provides 8 x 10/100BaseT(X) RJ45 ports with auto-negotiation and auto-MDI/MDI-X crossover.

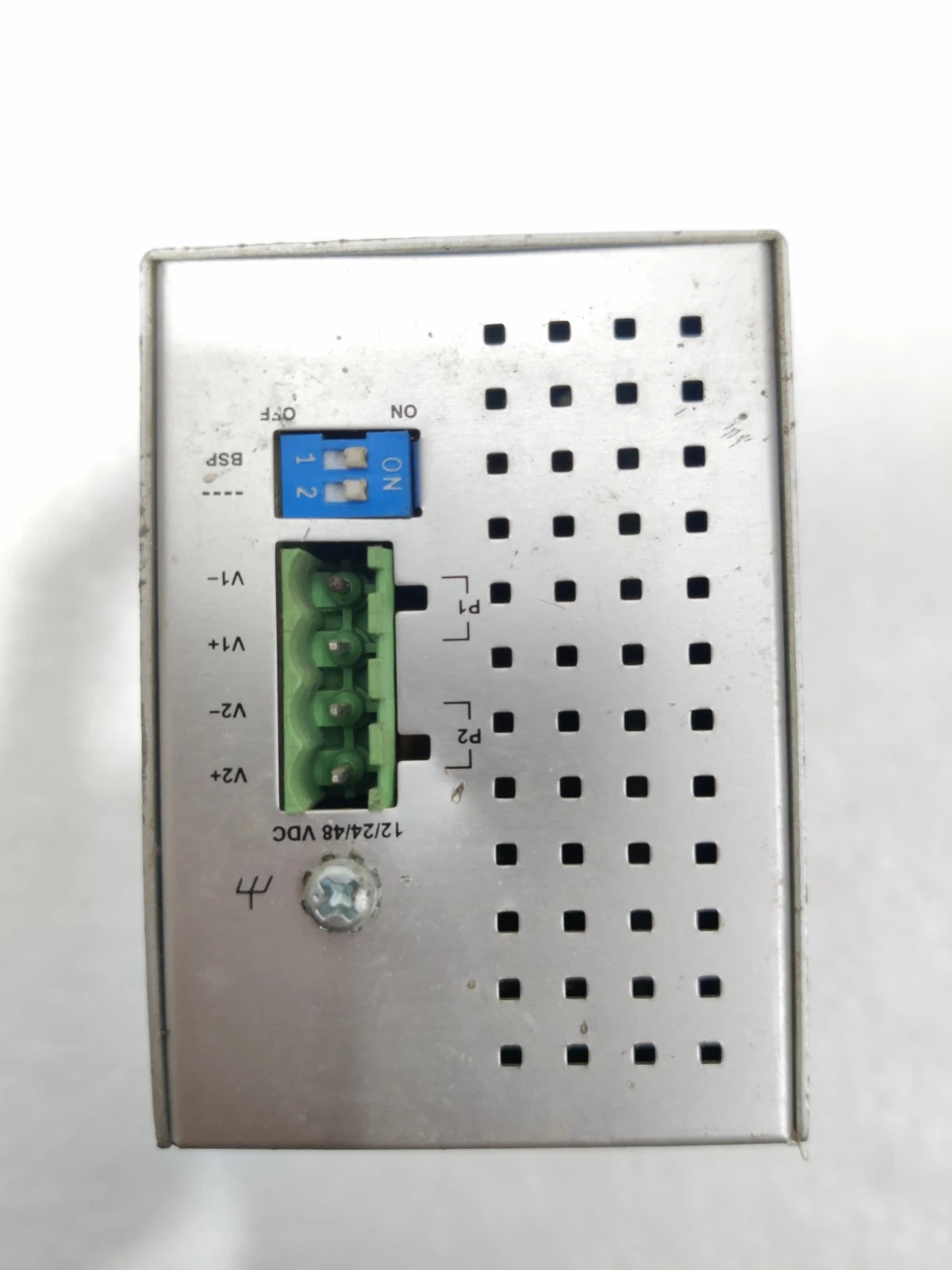

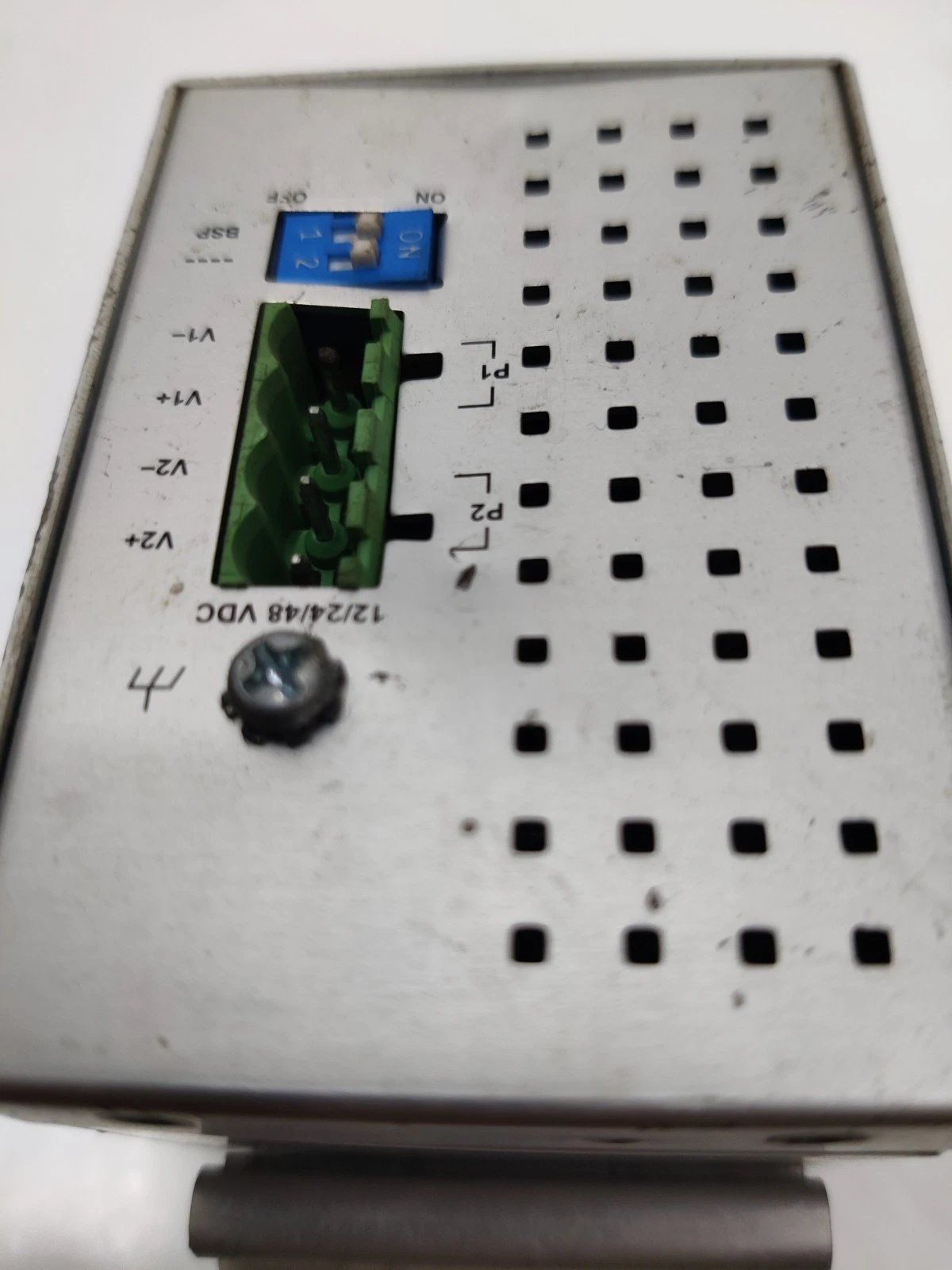

• Redundant Power Inputs: Features dual 12/24/48V DC power inputs, allowing for a secondary power source to ensure network reliability.
• Rugged IP30 Housing: Encased in a high-strength aluminum housing that is fanless and designed for efficient heat dissipation.
• Intelligent Broadcast Storm Protection: Includes an integrated DIP switch to enable or disable broadcast storm protection, preventing network congestion.

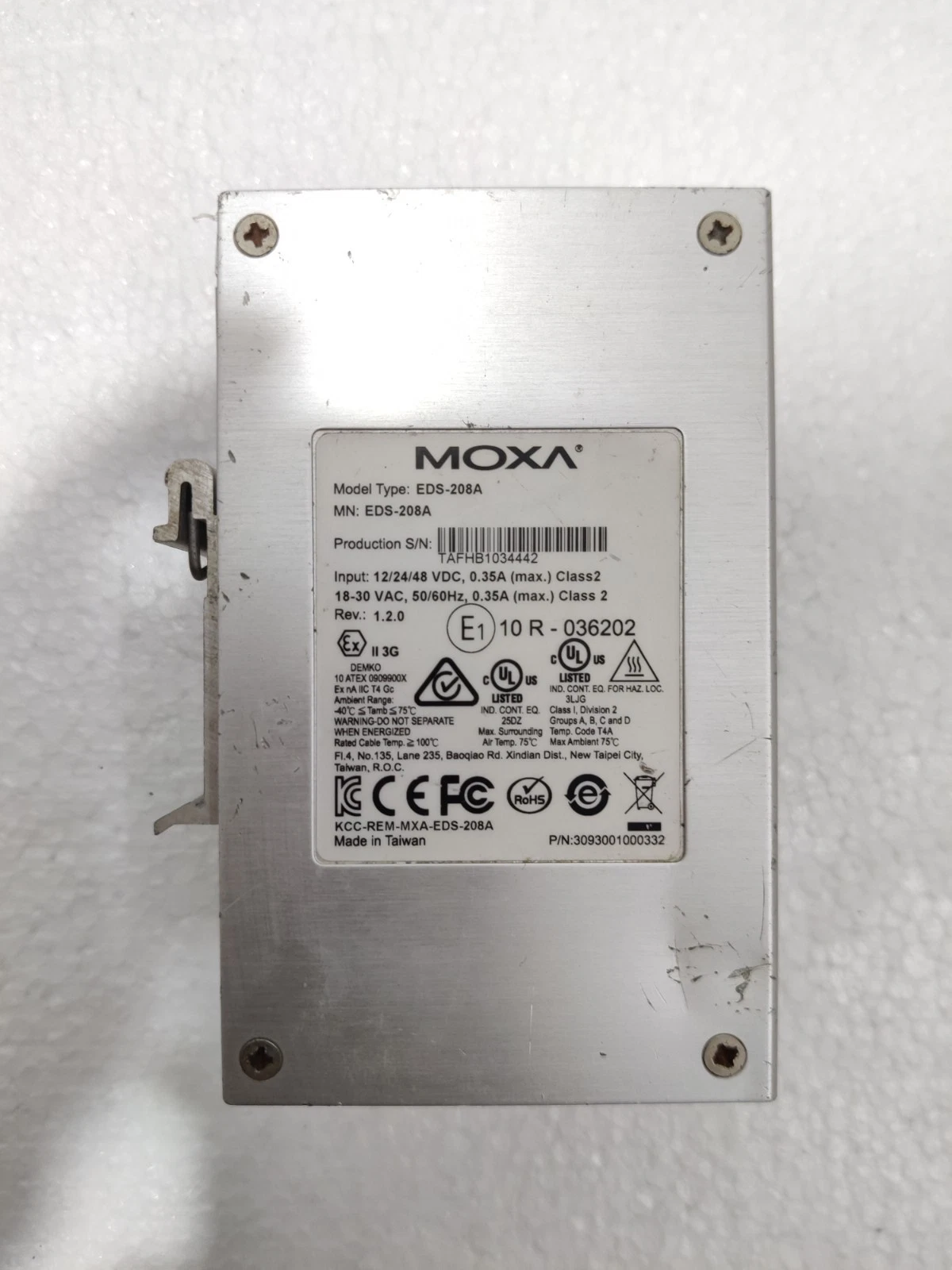

• Industrial Certifications: Built to meet global standards including Class I Division 2 (hazardous locations), CE, and FCC.
• Extreme Temperature Support: Engineered to operate reliably across a standard temperature range of -10°C to 60°C.

Item Condition (Used Working)

• Functional Status: Used Working. This switch has been professionally bench-tested. Each of the 8 RJ45 ports has been verified for link stability and full data throughput.

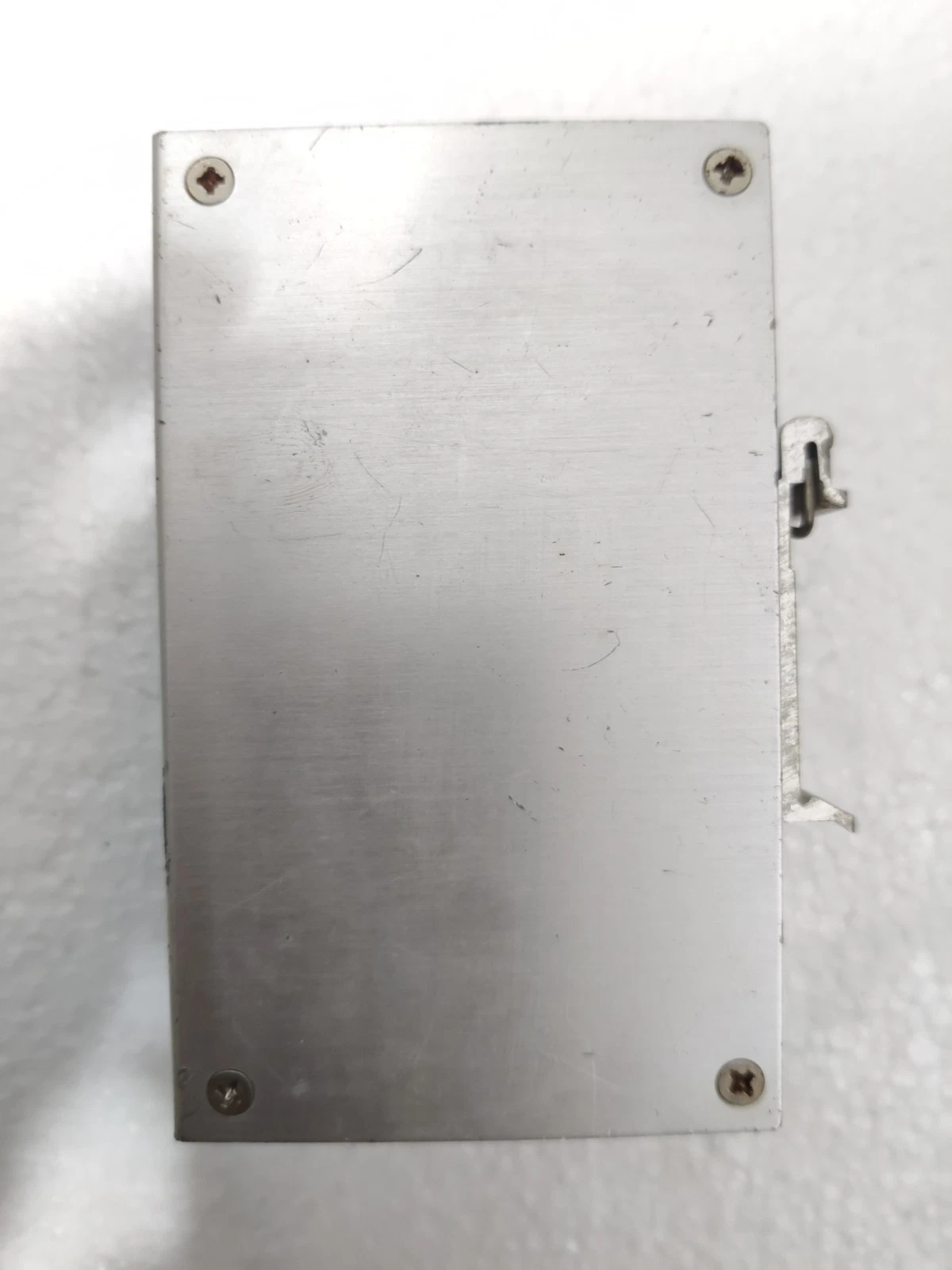

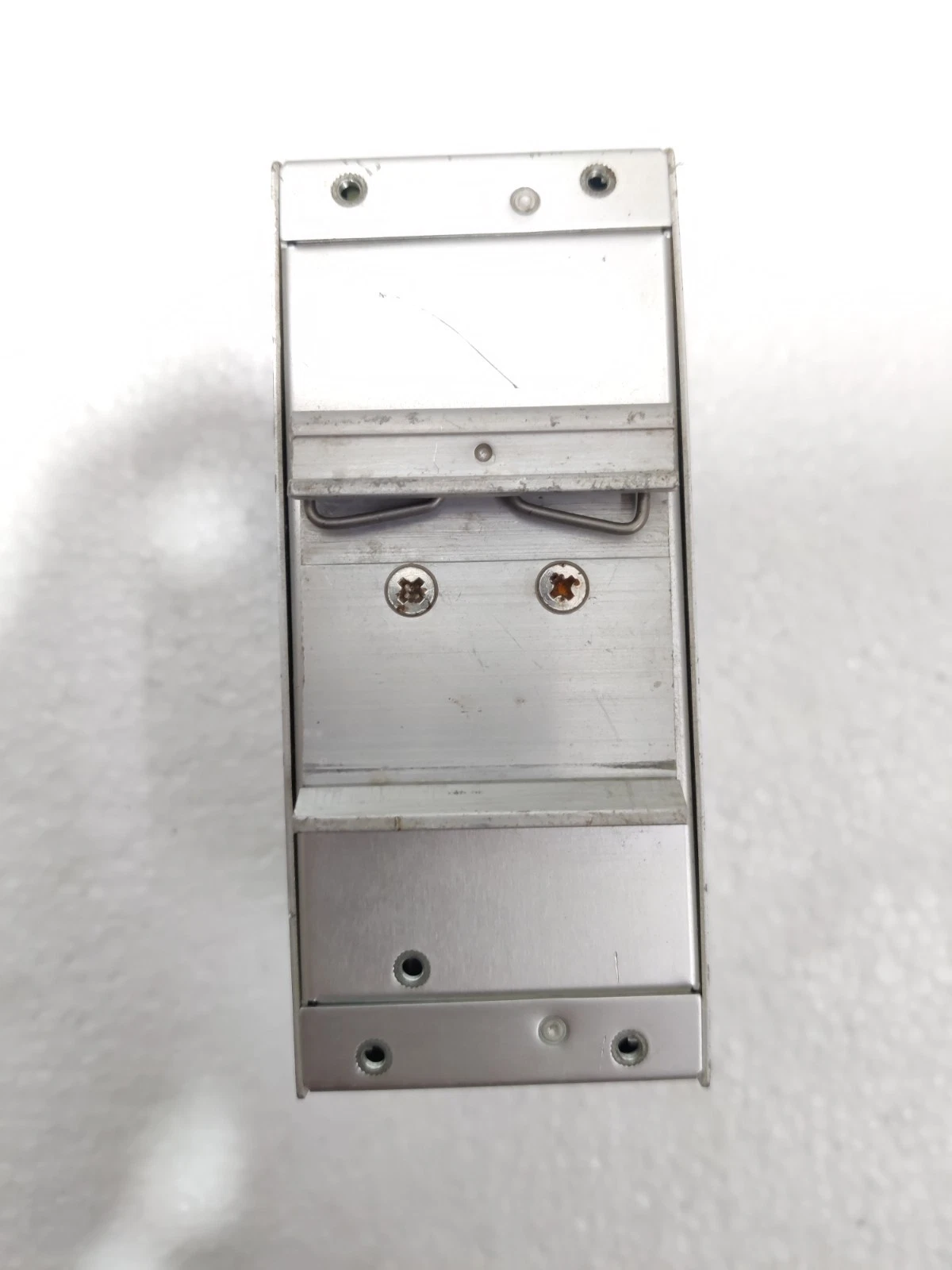

• Physical State: Clean industrial condition. The aluminum casing is robust with no significant dents. The DIN rail mounting clip is firm and functional.
• Technical Integrity: Both redundant power input terminals have been verified. The unit has been handled in an ESD-safe environment and is free of internal dust or corrosion.
• Note: Professional installation is recommended. This is an unmanaged switch; please ensure your network does not require managed features (like VLANs) for this specific installation point.

Package Includes

1. 1 x Moxa EDS-208A 8-Port Unmanaged Industrial Ethernet Switch
2. Removable Terminal Block for Power Input (Attached)
