MITSUBISHI FX2N-2AD Used Working MELSEC FX2N Modules

Product Overview

The Mitsubishi FX2N-2AD is a high-precision analog-to-digital converter module from the reliable MELSEC FX2N series. This module allows for the integration of two analog input channels (voltage or current) into your FX series PLC, converting real-world signals from sensors—such as pressure transducers, flow meters, or thermocouples—into digital data for processing. As a Used - Working unit, it provides an economical way to add analog sensing capabilities to your automation system without the cost of a brand-new module.

Key Features

• Dual Channel Input: Features 2 independent analog input channels that can be configured for either voltage or current signals.
• Flexible Signal Ranges: Supports standard industrial ranges including 0 to 10V DC, 0 to 5V DC, and 4 to 20mA.
• High Resolution: Offers 12-bit resolution, ensuring accurate data representation for precise process monitoring.
• Compact Integration: Designed to be mounted directly to the right side of an FX2N, FX3U, or FX3G base unit using the integrated extension ribbon cable.
• Optocoupler Isolation: Provides electrical isolation between the analog input terminals and the PLC's internal circuitry to prevent noise interference.

Item Condition (Used/Working)

• Functional Status: This module has been professionally removed from a decommissioned, functional system. It has been bench-tested to verify that both analog channels accurately convert signals across the full scale and communicate with the CPU.

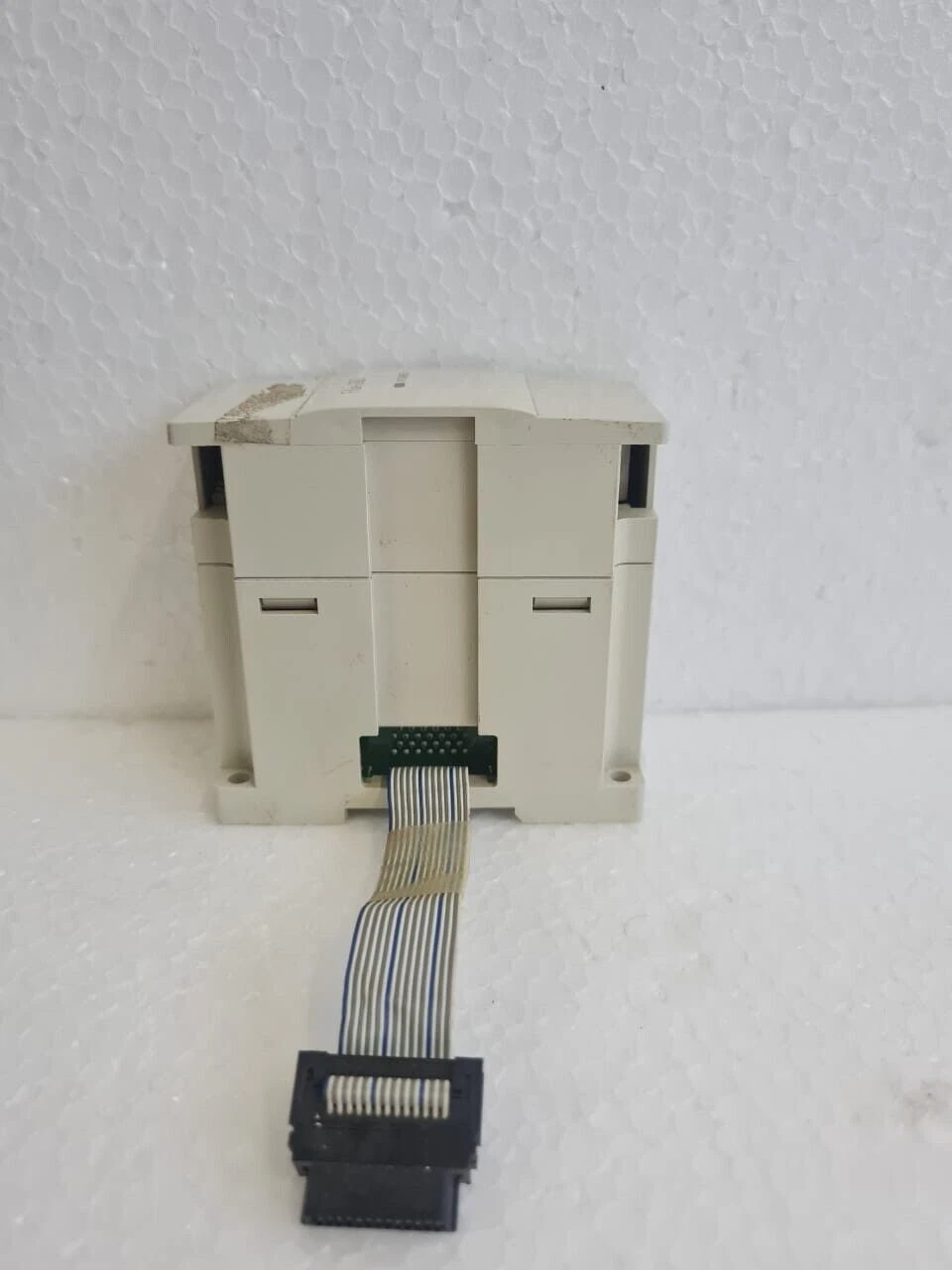

• Physical State: Shows standard industrial wear, such as minor scuffs on the plastic casing. The terminal screws are in good condition and the extension ribbon cable is intact and flexible.

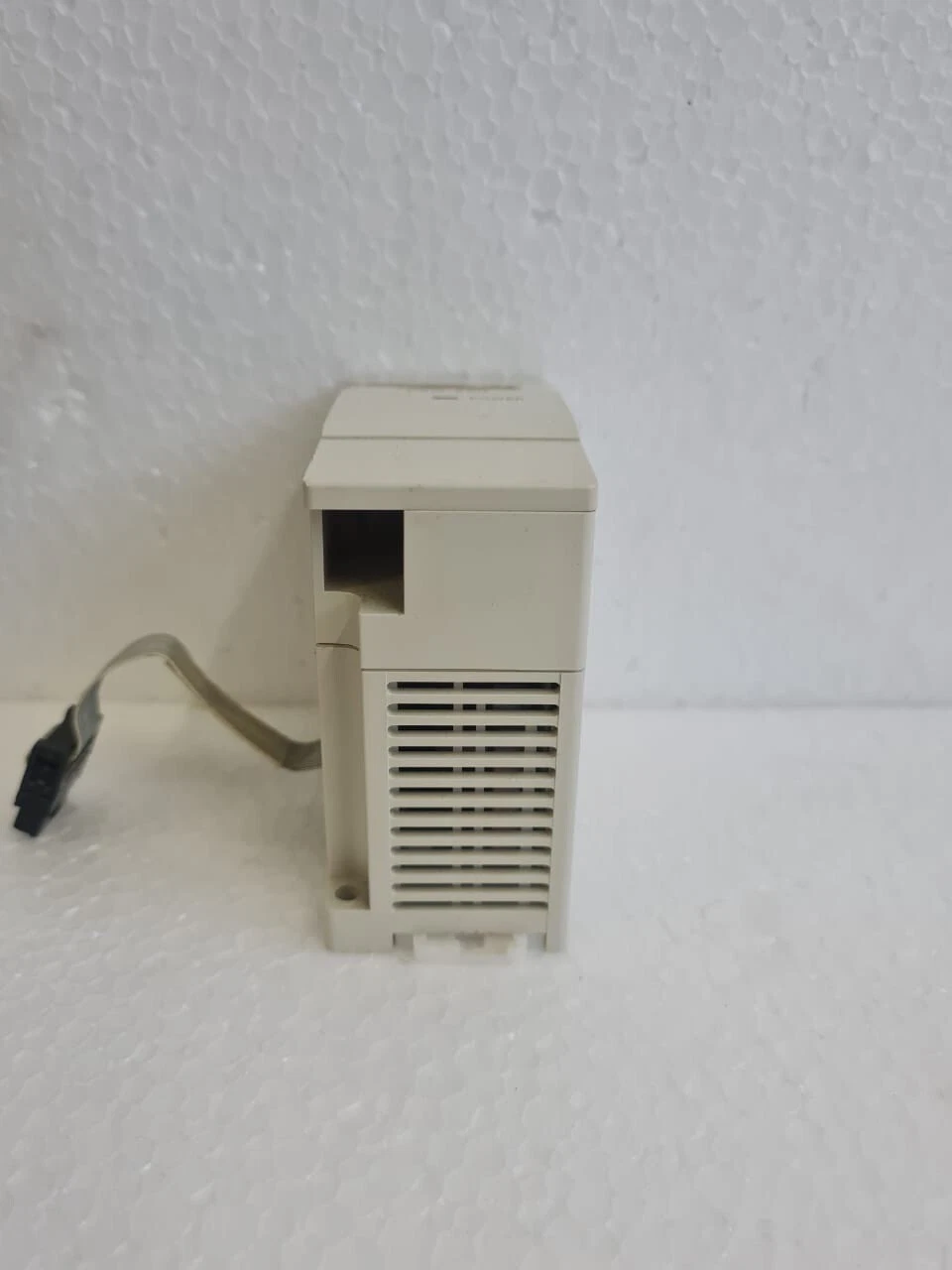

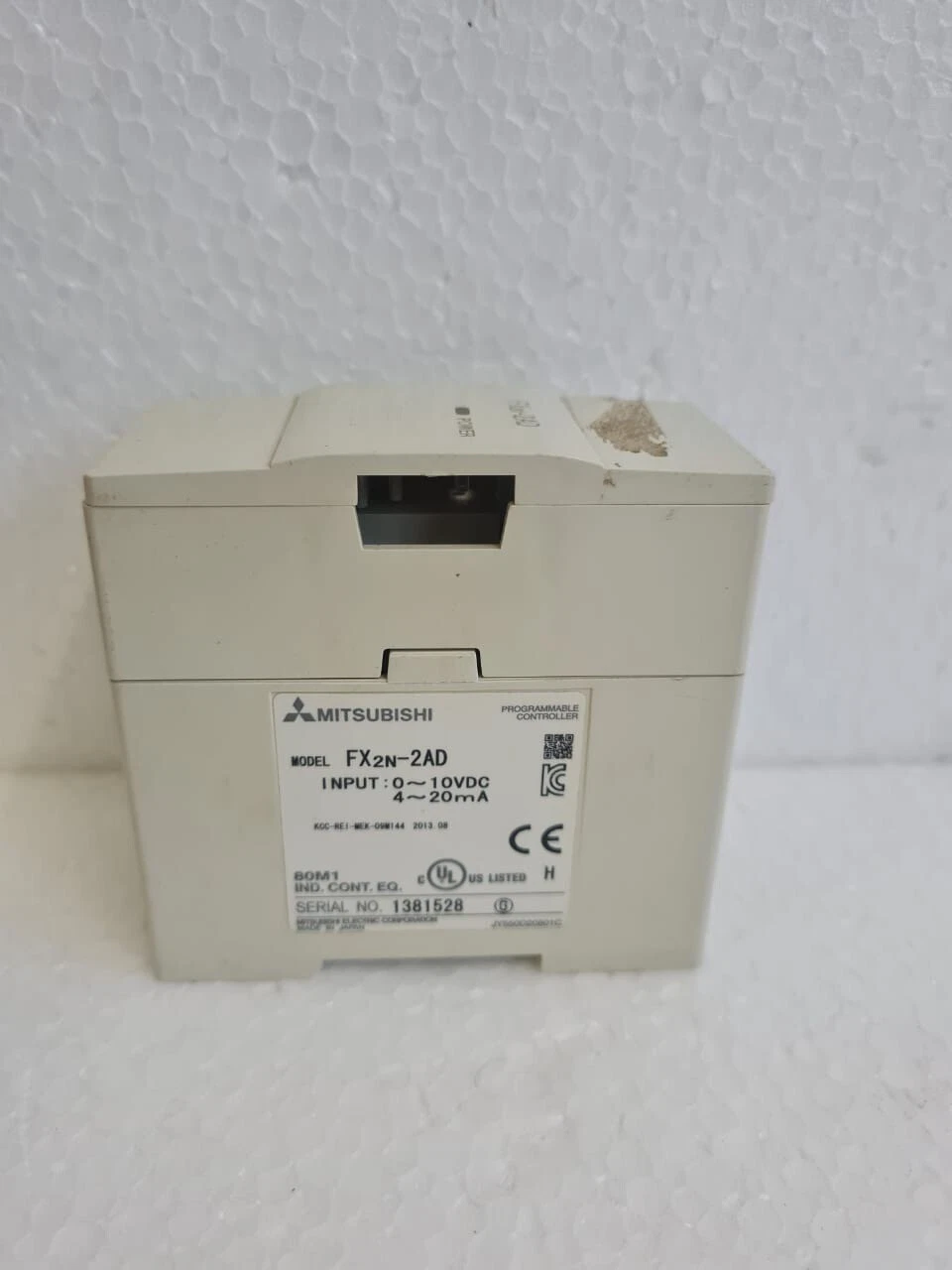

• Visual Reference: Please refer to the high-resolution images to verify the terminal labels and serial number; the unit pictured is the exact module you will receive.
• Note: Ensure your PLC base unit has sufficient power capacity (5V DC bus) to support the addition of this module.

Package Includes

1. 1 x Mitsubishi MELSEC FX2N-2AD Analog Input Module
2. Note: Includes only the module and the attached ribbon cable as pictured. Software, original packaging, or DIN rails are not included.
