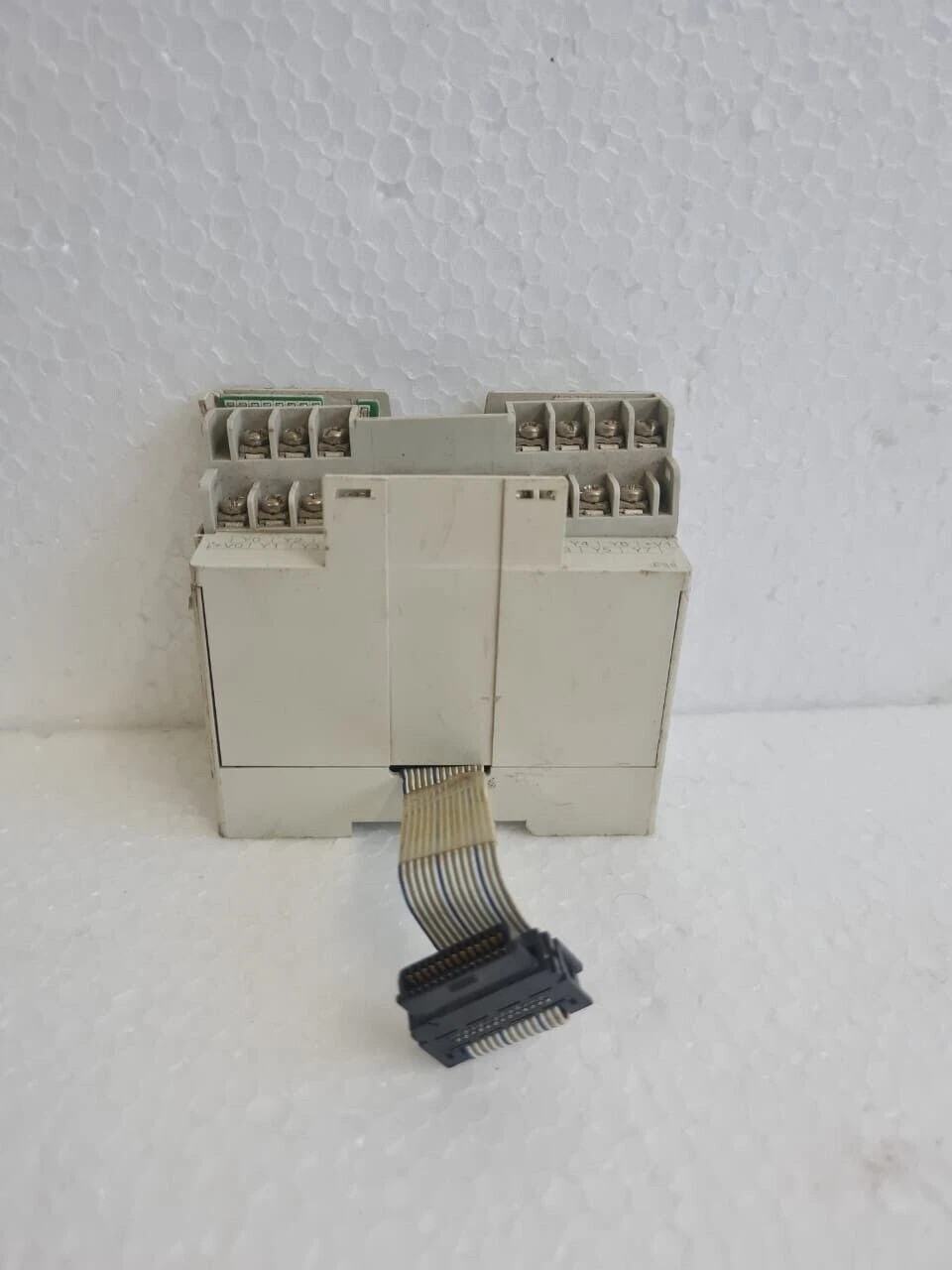

MITSUBISHI FX2N-16EYT Used Working MELSEC FX2N Modules

Product Overview

The Mitsubishi FX2N-16EYT is a high-density digital output expansion module designed for the MELSEC FX2N series PLC. This module provides 16 transistor outputs (Sinking Type), making it ideal for high-speed switching applications where traditional relay outputs would wear out too quickly. It is commonly used for driving solenoids, small DC motors, and interfacing with other electronic control circuits. As a Used - Working unit, it offers a reliable and cost-effective way to expand the output capacity of your Mitsubishi FX series controller while maintaining a compact footprint.

Key Features

• 16-Channel Transistor Output: Provides 16 independent channels of solid-state switching for 5V to 30V DC loads.
• High-Speed Switching: Transistor-based design allows for much faster response times and a significantly longer service life compared to mechanical relays.
• Sink Type (NPN): Optimized for sinking configurations, where the output connects the load to the common negative line.
• Easy Expansion: Connects directly to the right side of an FX2N, FX3U, or FX3G base unit via the integrated ribbon cable.
• Visual Diagnostics: Features 16 red LED status indicators on the front panel, allowing for instant verification of the logic state for each output.

Item Condition (Used/Working)

• Functional Status: This module has been professionally pulled from a working industrial environment. All 16 output channels have been bench-tested to ensure they switch correctly under load and that all LEDs are functional.
• Physical State: Shows standard industrial wear, including minor scuffs or light scratches on the plastic housing. The terminal block is clean, and the expansion ribbon cable is intact.

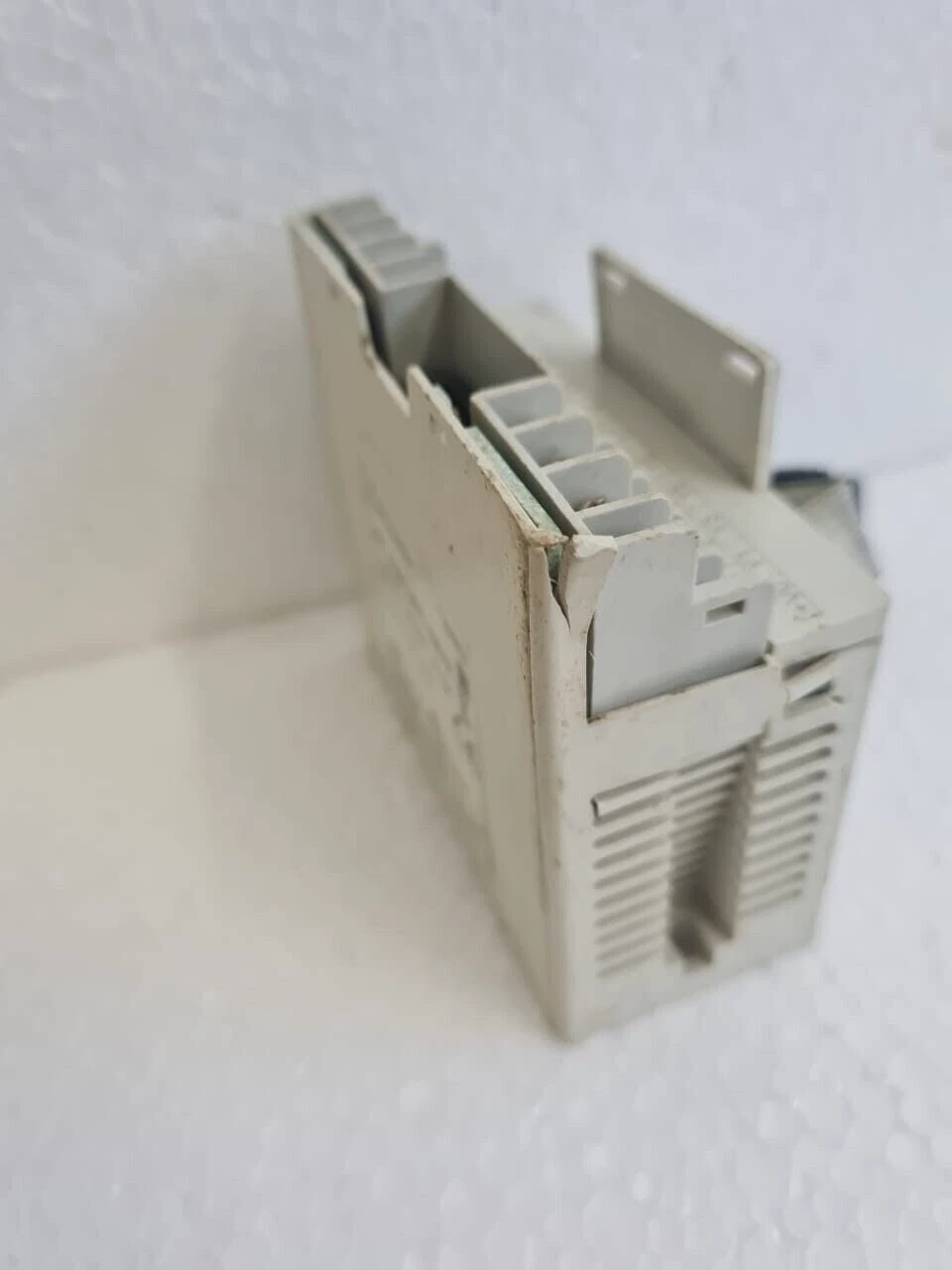

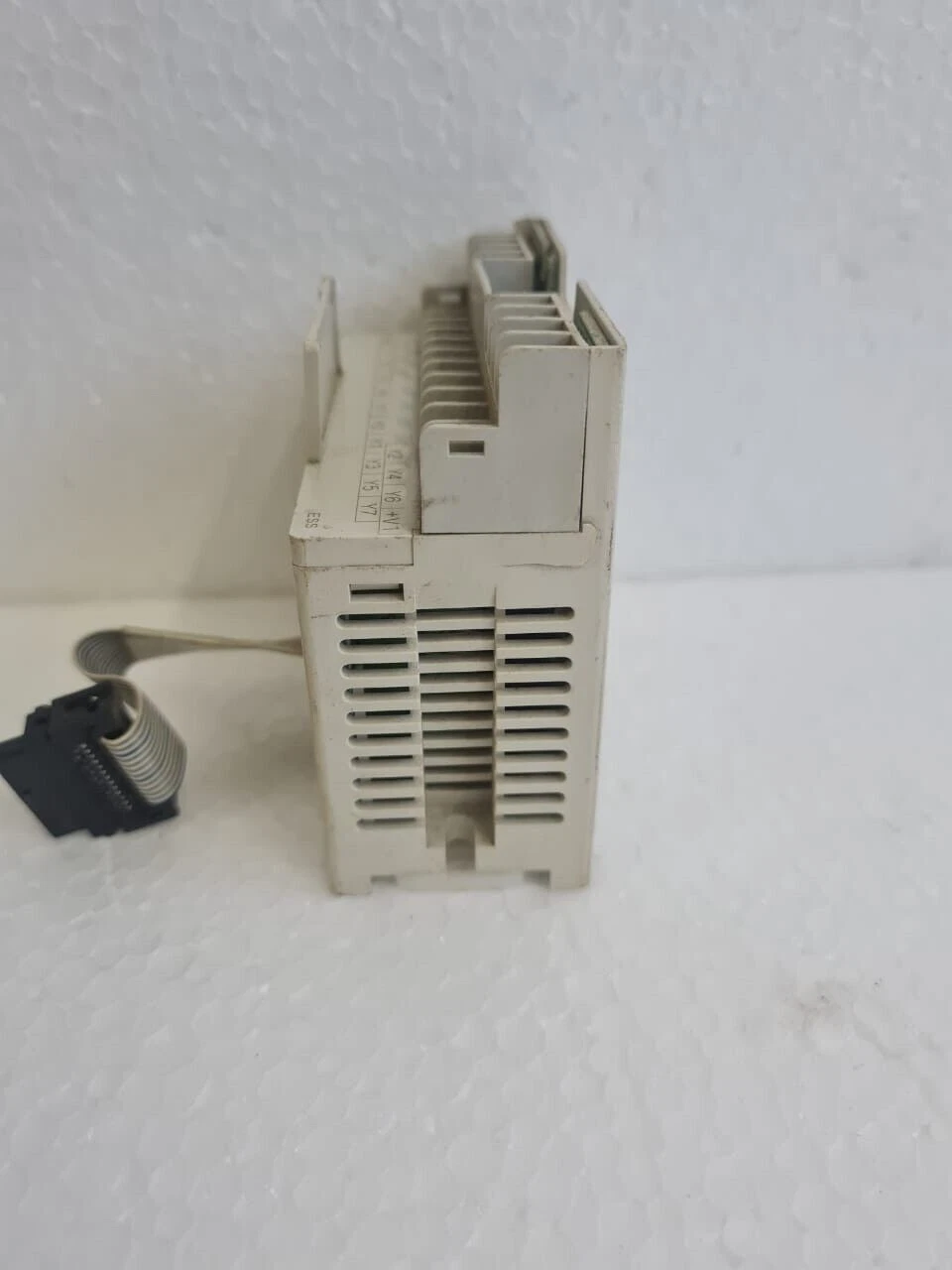

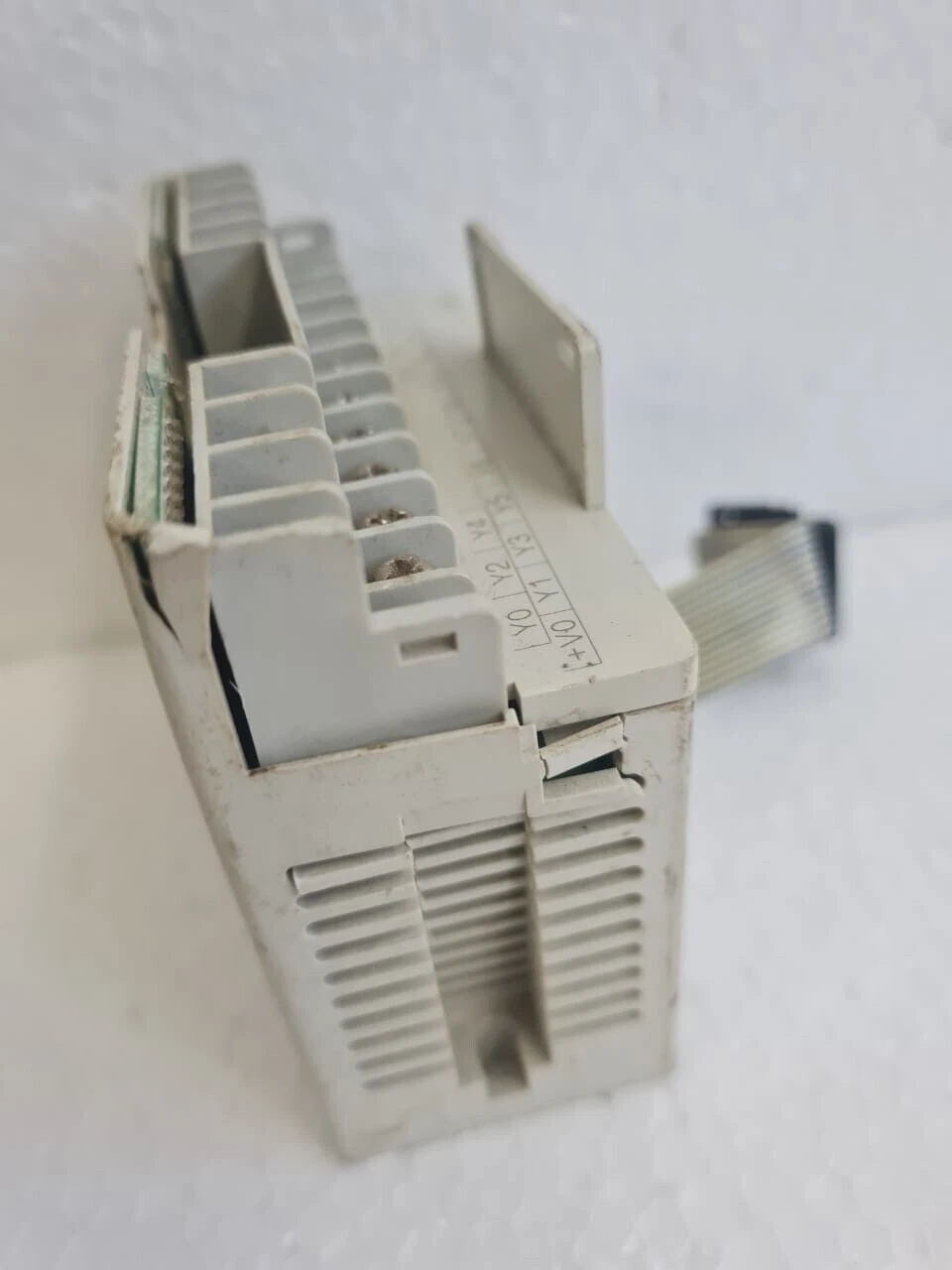

• Visual Reference: Please refer to the high-resolution images to verify the specific hardware revision and terminal markings; the unit pictured is the exact module you will receive.
• Note: Ensure that your PLC's 5V DC power budget is sufficient to support the addition of this expansion module.

Package Includes

1. 1 x Mitsubishi MELSEC FX2N-16EYT Transistor Output Module
2. Note: Includes only the module and the attached ribbon cable as pictured. Manuals, software, or DIN rails are not included.
