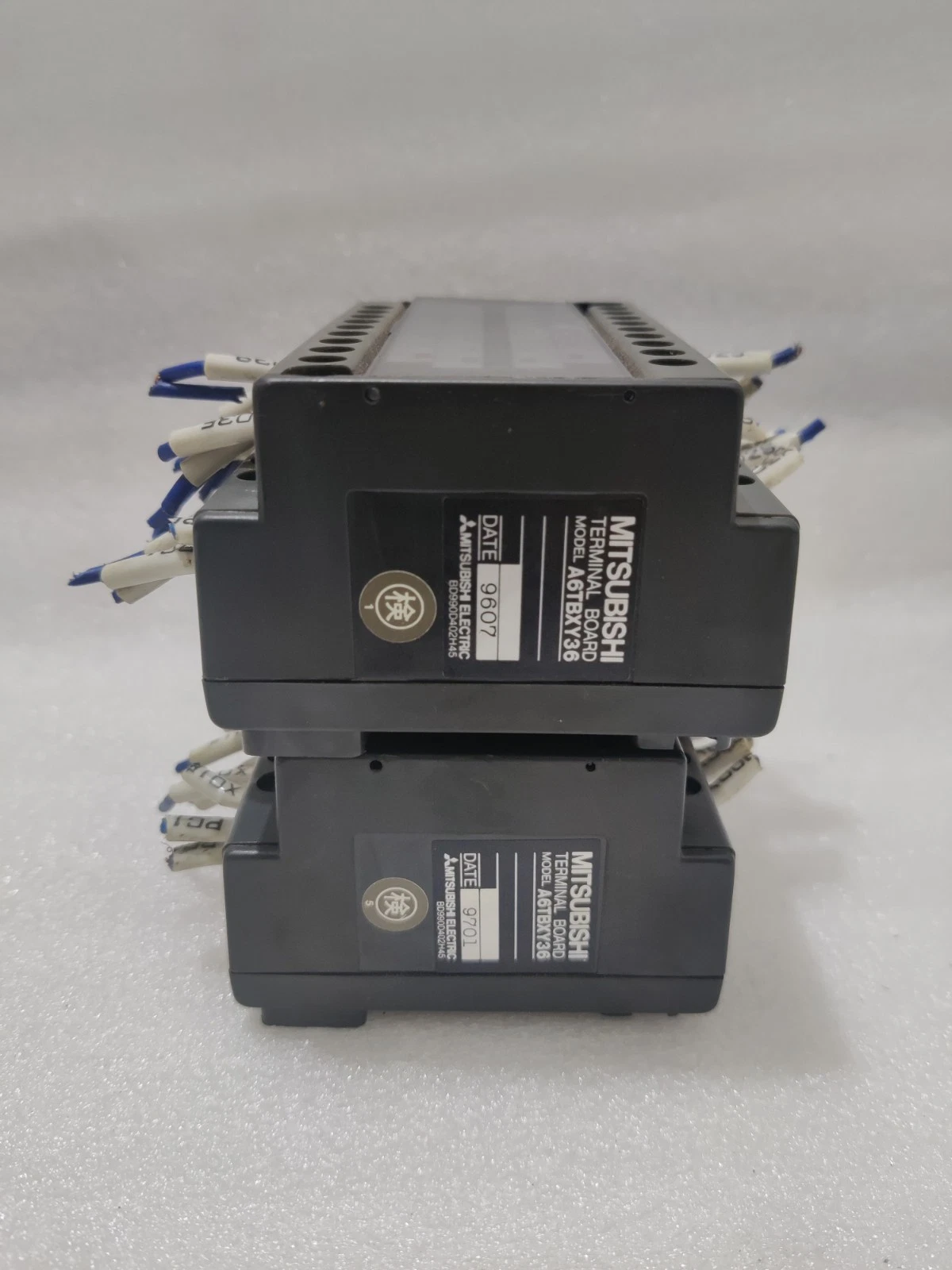

MITSUBISHI A6TBXY36 Used Working Terminal Board

Product Overview

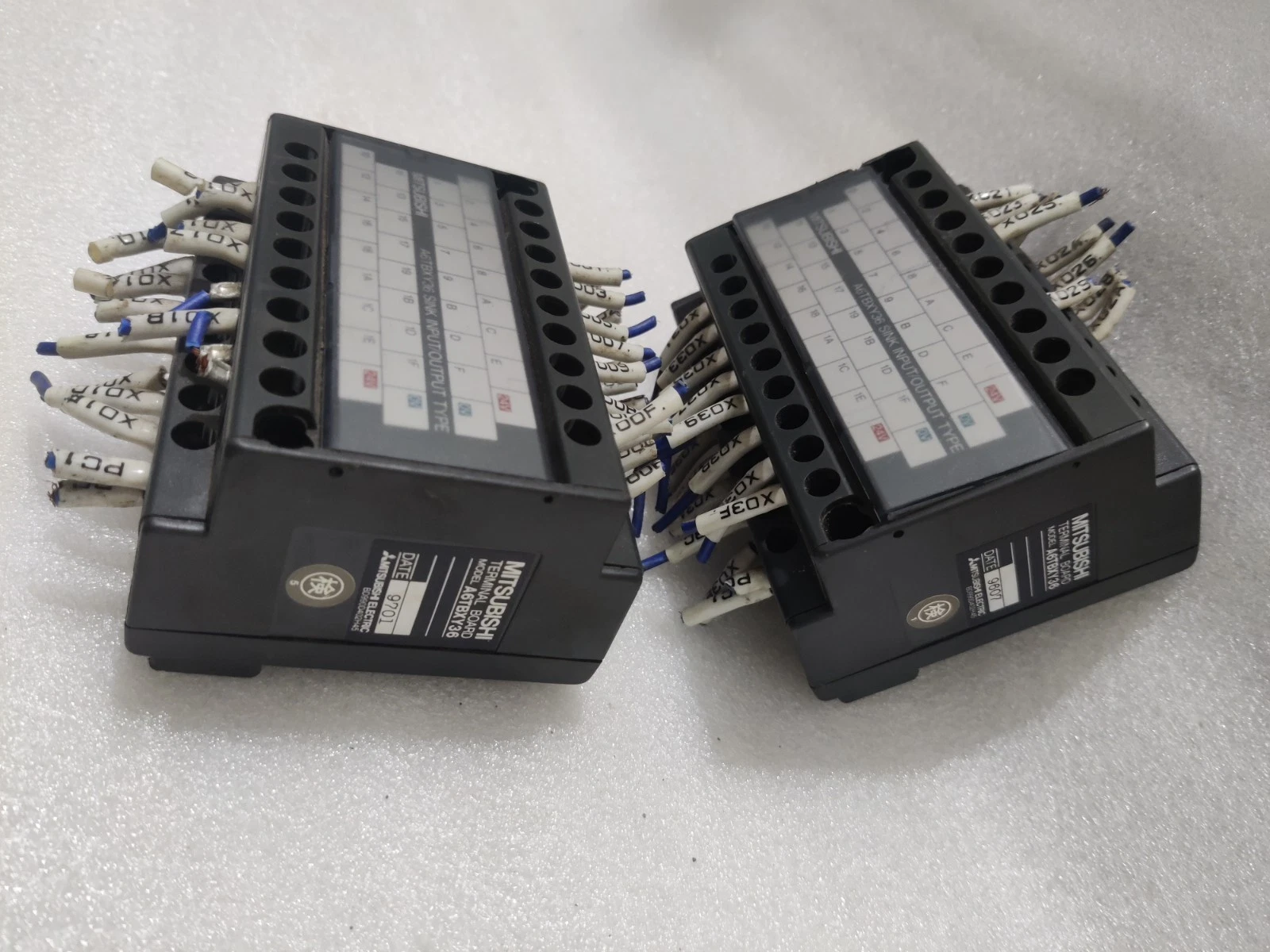

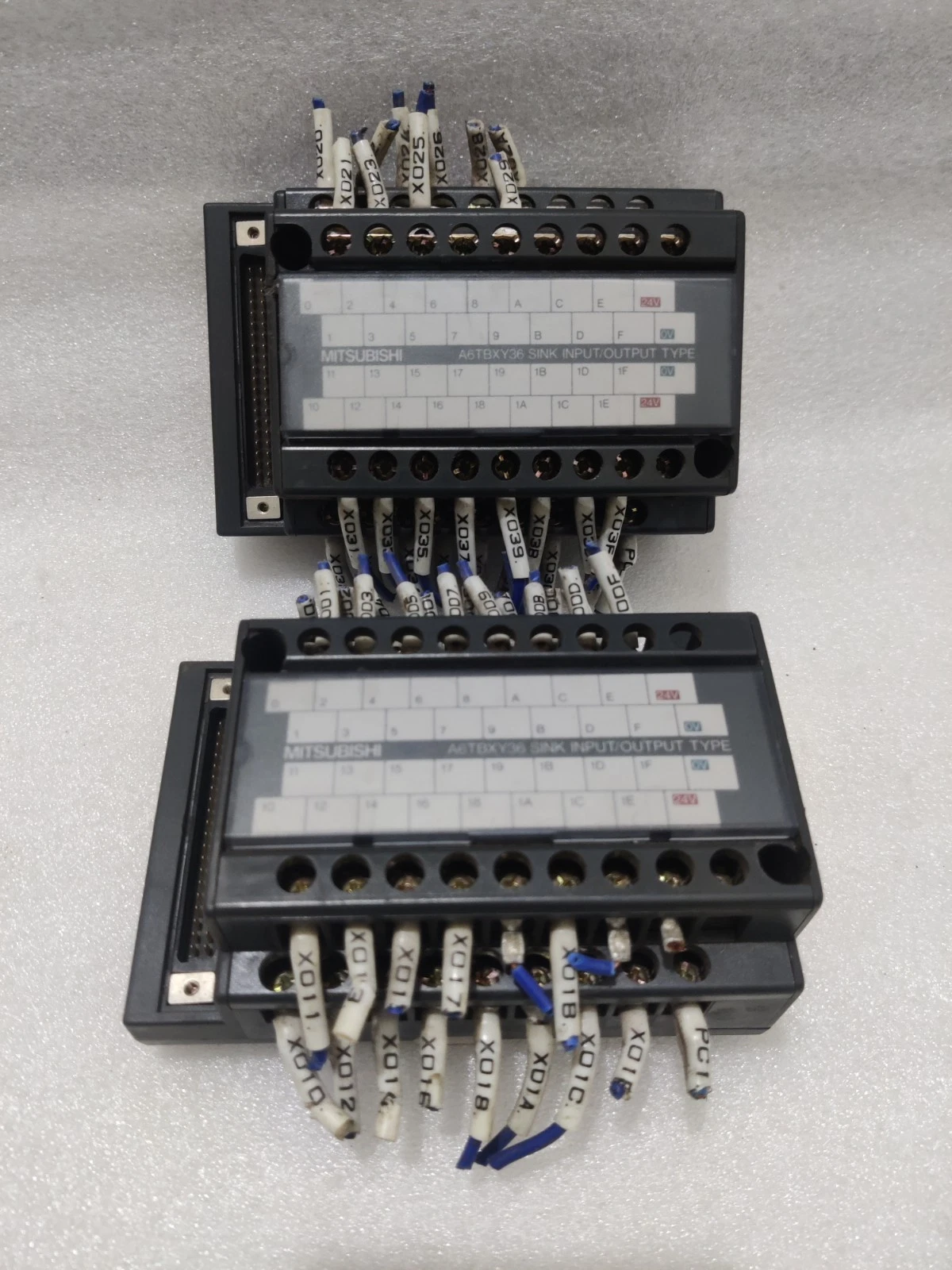

This listing features a lot of 2 units of the Mitsubishi A6TBXY36, a high-density Terminal Block Conversion Unit designed for the MELSEC-A and Q Series PLC platforms. These interface modules serve as a robust bridge between high-density 40-pin connectors on I/O modules and standard screw terminal blocks. As Used Working units, they are essential for simplifying field wiring, reducing installation time, and providing a clean, organized termination point for complex industrial control systems.

Key Features

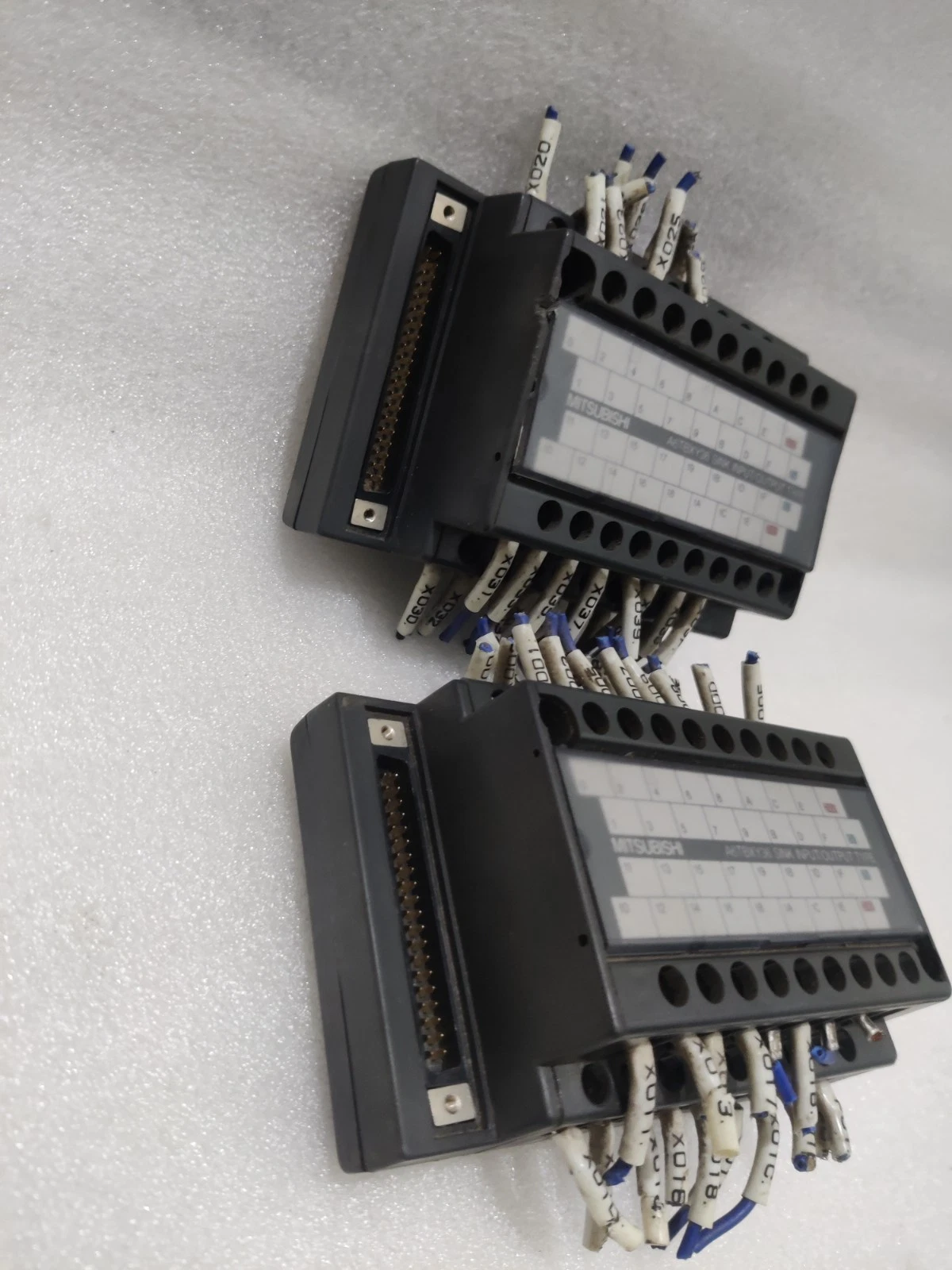

• 40-Pin Interface: Designed to connect directly to high-density I/O modules (such as the AX42 or AY42) using a specialized 40-pin ribbon or round cable.

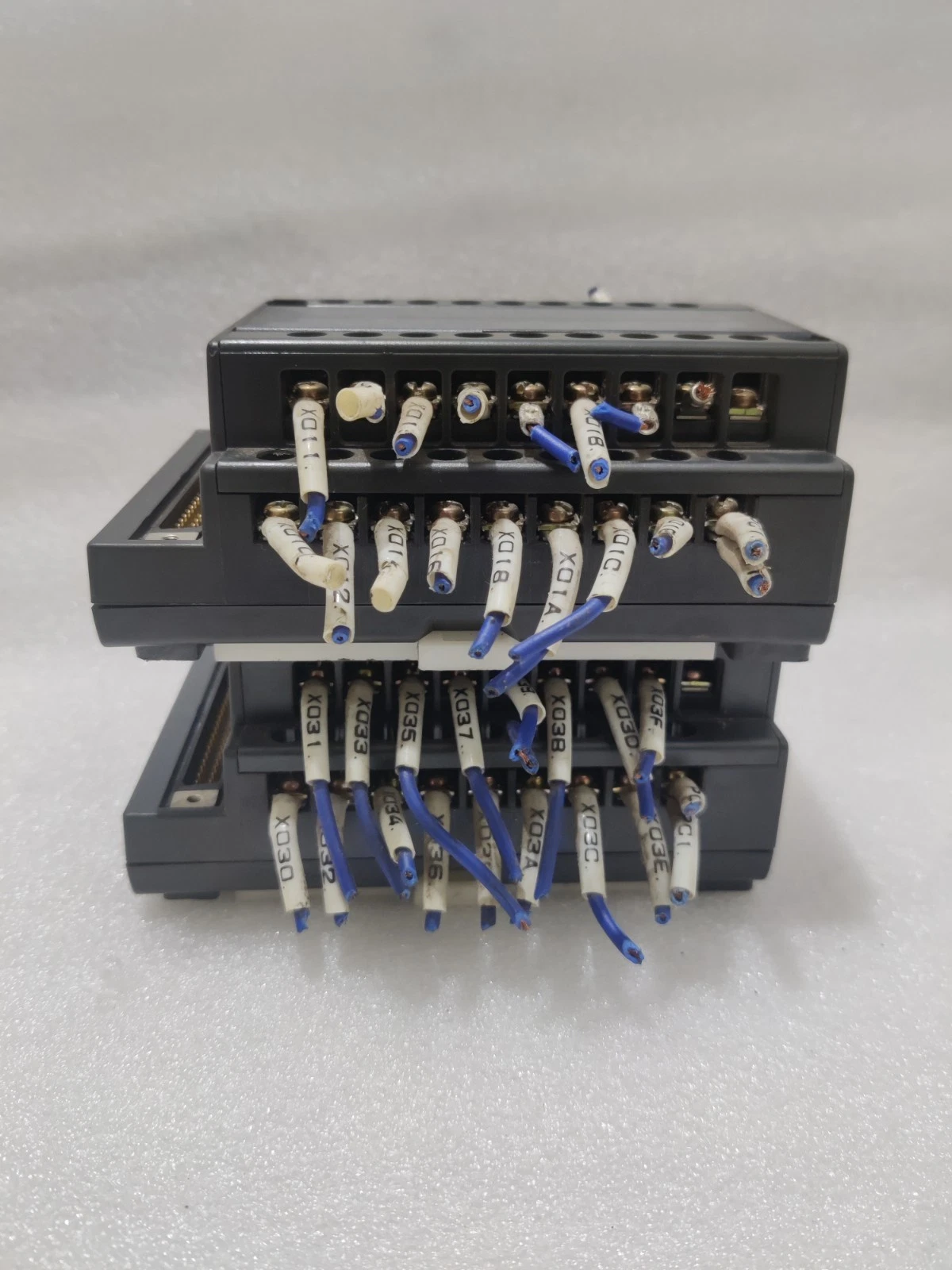

• Screw Terminal Termination: Converts compact connector signals into 36-point M3.5 screw terminals, allowing for secure connection of standard field wires without specialized crimping tools.
• Bi-Directional Support: Compatible with both Digital Input and Digital Output modules, offering flexible application across various control logic requirements.
• DIN Rail Mounting: Features a rugged industrial housing that snaps easily onto standard 35mm DIN rails, ensuring stable placement within the electrical cabinet.

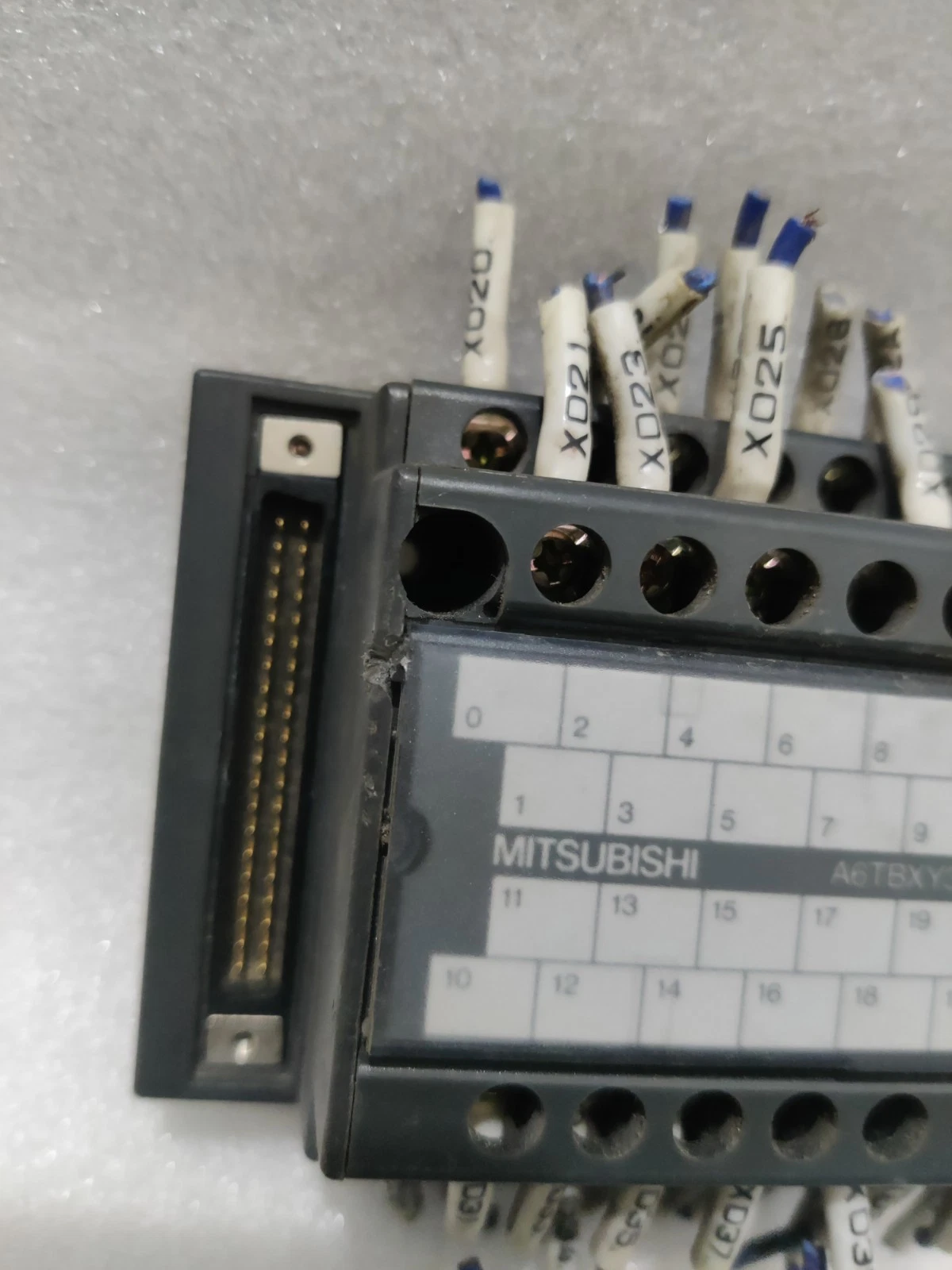

• Clear Signal Labeling: Each terminal point is clearly numbered, facilitating rapid wiring and reducing the risk of connection errors during commissioning.
• Compact Footprint: Engineered to maximize cabinet space while providing sufficient clearance for easy screwdriver access to all terminal points.

Item Condition (Used Working)

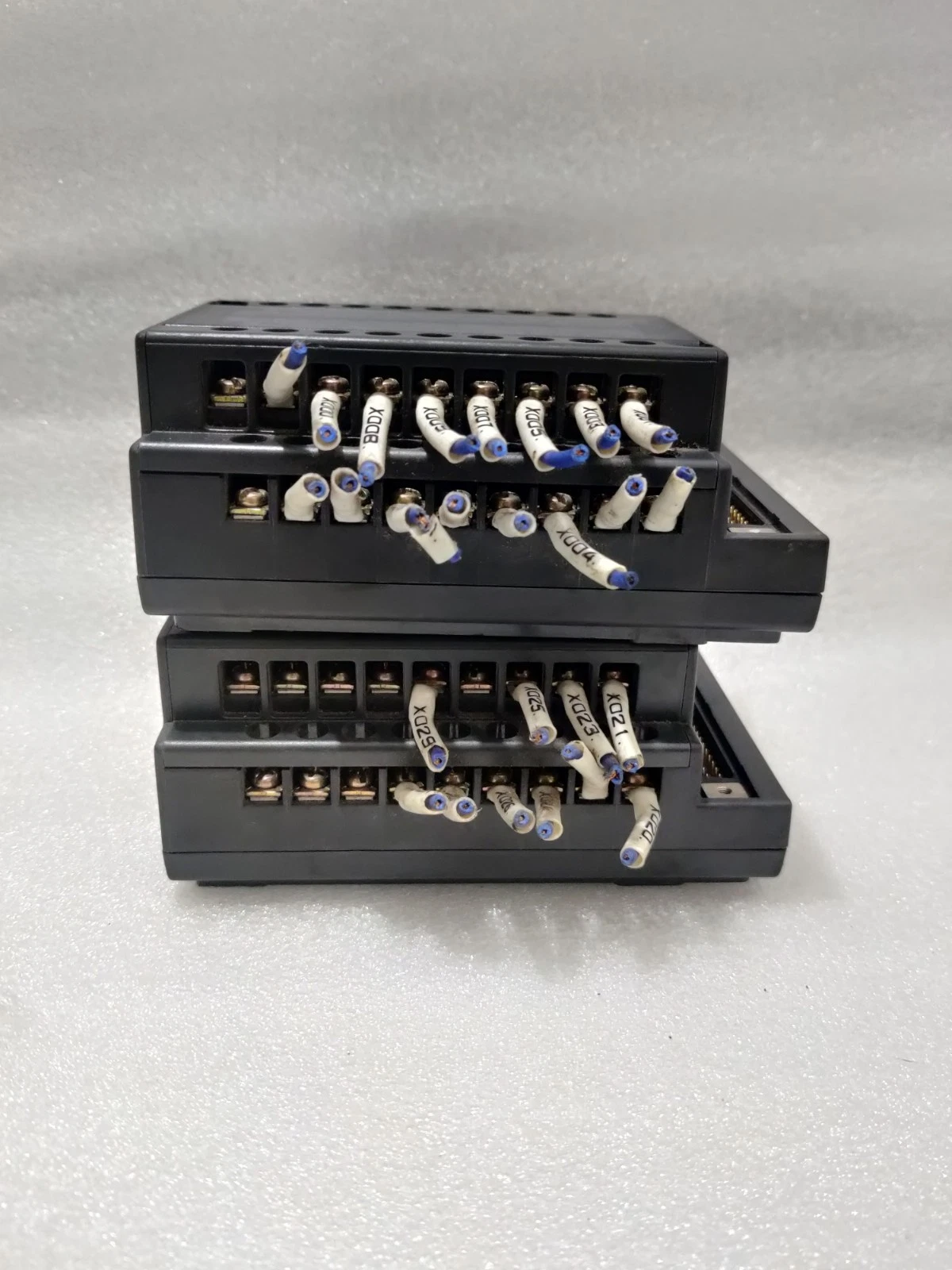

• Functional Status: Used Working. Both terminal blocks in this lot have been inspected and tested for electrical continuity across all 36 points and the 40-pin header.

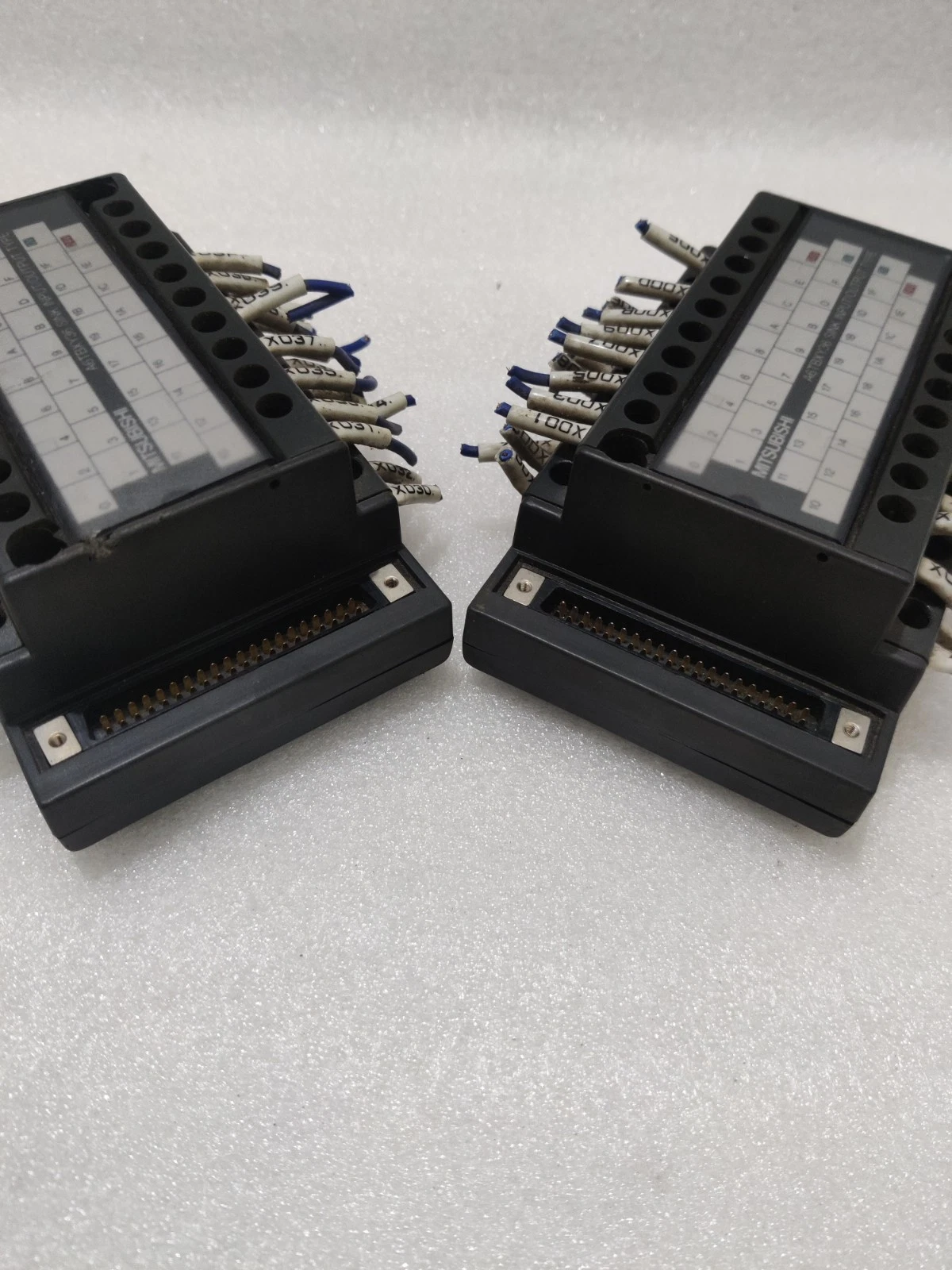

• Physical State: Clean industrial condition. All M3.5 screw terminals are present and turn freely. The 40-pin male headers are straight and free of bent pins.

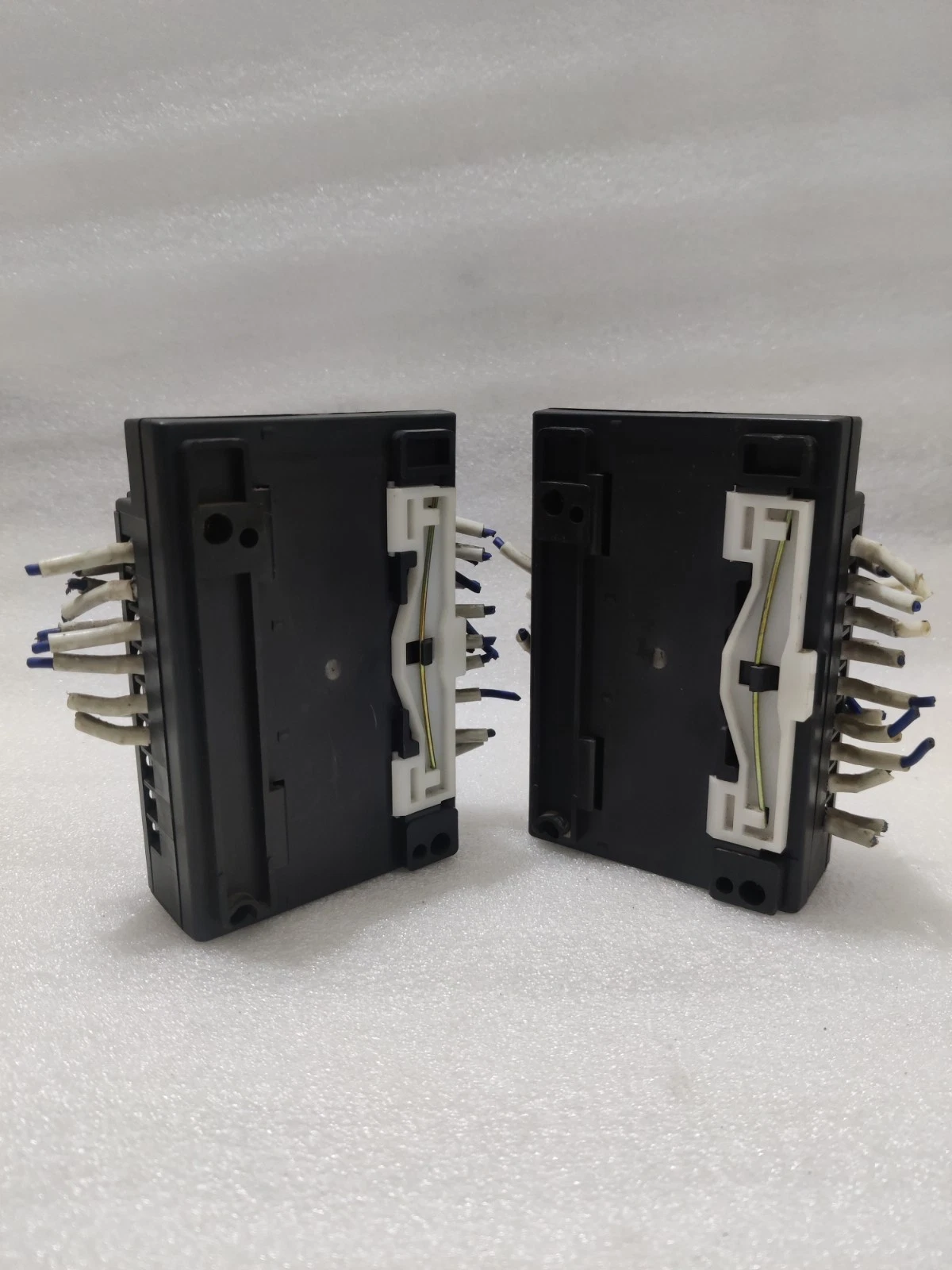

• Technical Integrity: The plastic housings and DIN rail clips are intact. There is no evidence of arcing or terminal overheating.
• Note: Professional installation is recommended. Note that the 40-pin connection cable is not included and must be sourced according to your specific PLC module requirements.

Package Includes

1. 2 x Mitsubishi A6TBXY36 Terminal Block Conversion Units
2. Integrated terminal covers (if currently attached)
