MESSUNG BDIO 16/12R Used Working Nexgen 5000 PLC

Product Overview

The Messung BDIO 16/12R is a robust digital Input/Output expansion module designed for the Nexgen 5000 PLC series. This module provides a practical hybrid configuration of 16 digital inputs and 12 relay outputs, making it an essential component for controlling medium-to-large scale industrial processes. As a Used - Working unit, it offers a reliable, legacy-compatible solution for maintaining or expanding existing Messung automation systems, which are well-regarded for their longevity in harsh manufacturing environments.

Key Features

• Hybrid I/O Configuration: Combines 16 digital inputs (24V DC) and 12 relay outputs in a single module to optimize panel space.
• Relay Output Reliability: Features 12 dry-contact relay outputs, capable of switching both AC and DC loads for motors, solenoids, or lighting.
• Opto-Isolation: Inputs are optically isolated to protect the internal Nexgen 5000 bus from field-side electrical noise and surges.
• Status Monitoring: Equipped with front-panel LED indicators for every input and output channel, allowing for rapid field diagnostics.
• Modular Integration: Designed specifically for the Nexgen 5000 backplane, ensuring high-speed data exchange with the main CPU.

Item Condition (Used/Working)

• Functional Status: This module has been professionally removed from a decommissioned Nexgen 5000 rack. It has been bench-tested to ensure that all 16 inputs trigger correctly and all 12 relays click/switch with full continuity.
• Physical State: Shows standard signs of industrial use, including light scuffs on the housing and potential labeling marks. The backplane connector pins are straight and clean.

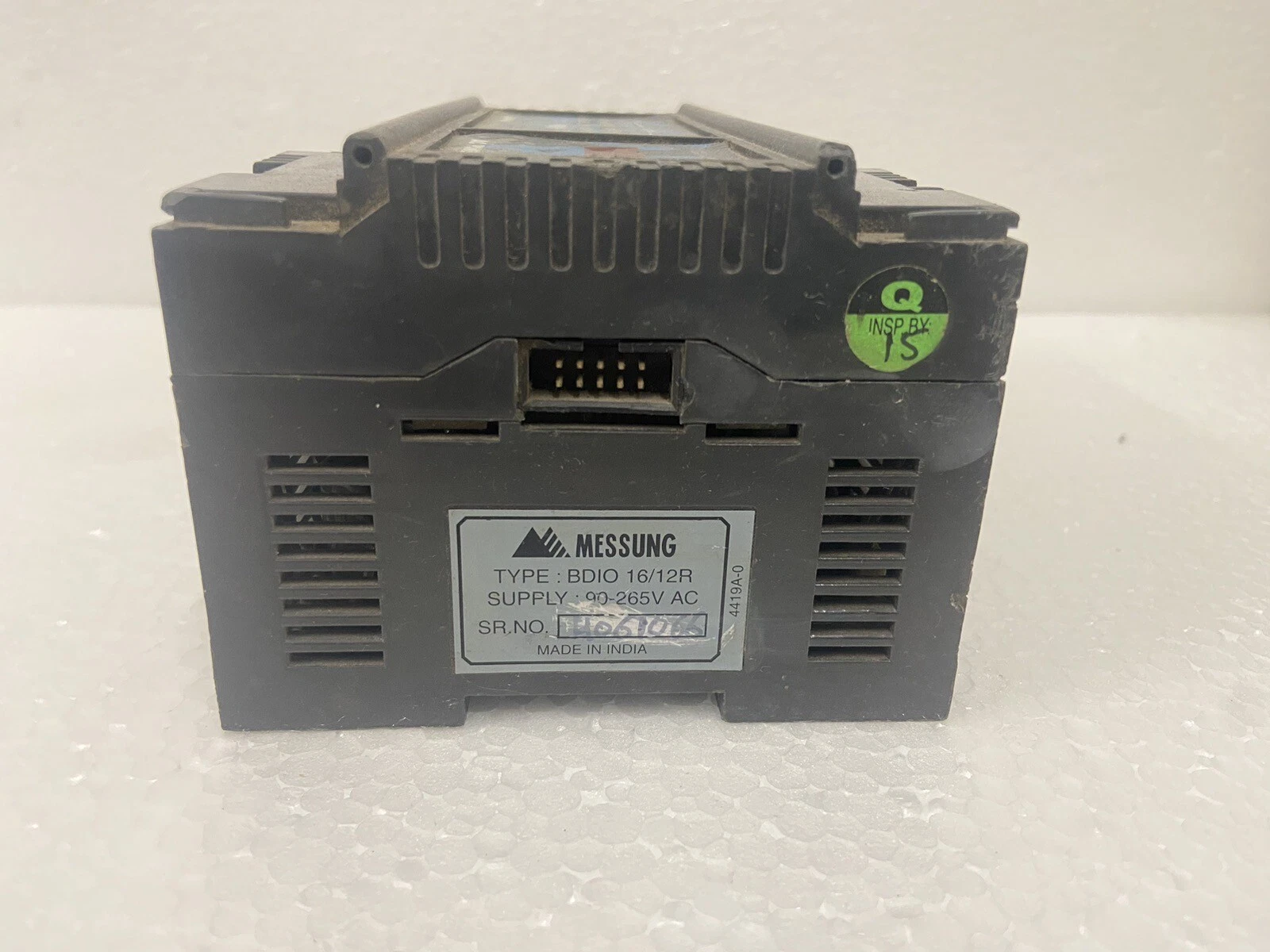

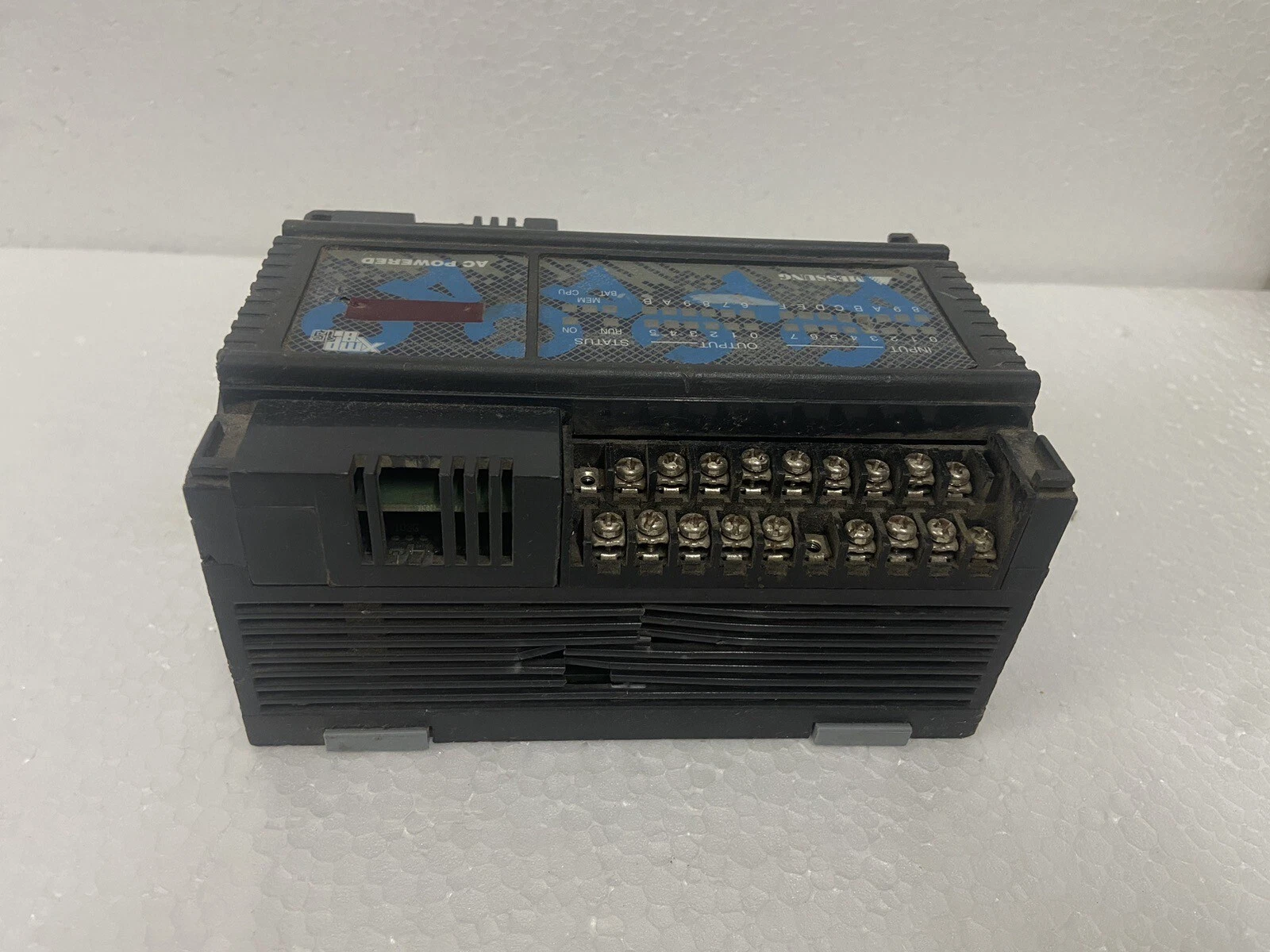

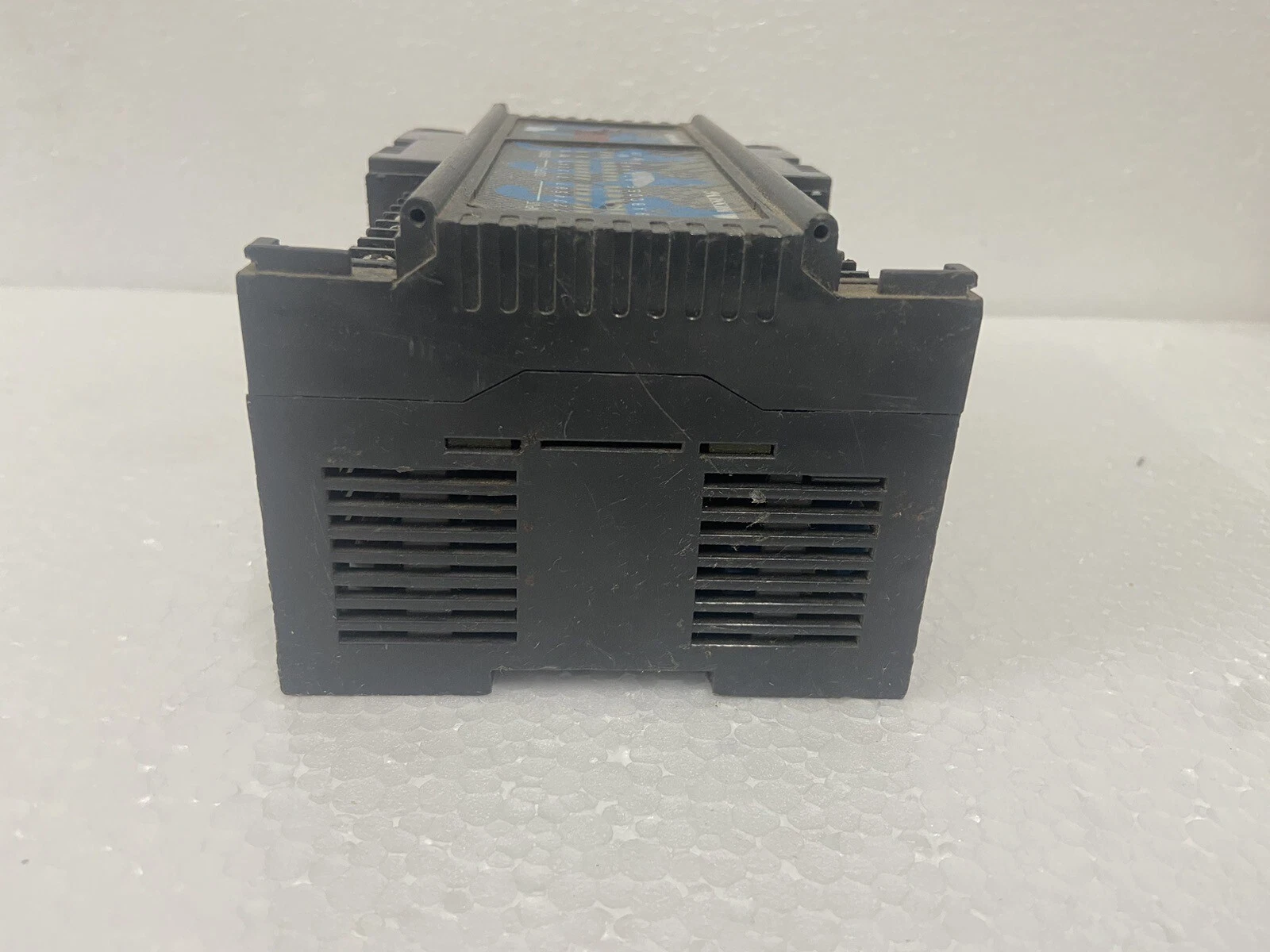

• Visual Reference: Please refer to the high-resolution images to verify the specific hardware version and terminal block condition; the unit pictured is the exact BDIO module you will receive.
• Note: Ensure your Nexgen 5000 power supply has the necessary current capacity for the relay coils when all 12 outputs are energized.

Package Includes

1. 1 x Messung BDIO 16/12R I/O Module (Used)
2. Note: Includes only the module as pictured. Backplanes (Racks), CPUs, and field wiring connectors are not included unless visible in the photos.
