LUTRON GRX-TVM2 Used Working Grafik Eye Dimmer Interface

Product Overview

The Lutron GRX-TVM2 is a specialized Ten-Volt Module (TVM) designed for the GRAFIK Eye 4000 and HomeWorks QS systems. It serves as a dual-channel interface that enables the control of low-voltage lighting loads, including 0-10V, DSI, and PWM ballasts or LED drivers. This Used Working lot of 5 units is an ideal solution for large-scale lighting maintenance or system expansions, providing precise dimming control and integration for commercial and high-end residential lighting environments.

Key Features

• Dual-Circuit Control: Each module controls two independent circuits of lighting, offering high-density control within a single panel.
• Multi-Protocol Support: Compatible with 0-10V (sink or source), DALI (broadcast only), DSI (Digital Serial Interface), and PWM (Pulse Width Modulation).
• High Control Capacity: Capable of sinking or sourcing up to 50 mA per circuit, allowing a single module to control approximately 20–25 typical ballasts or drivers.
• Seamless Integration: Works in conjunction with Lutron Remote Power Modules (RPMs) to provide both low-voltage dimming signals and high-voltage switching.
• DIN Rail Mounting: Compact design allows for easy snap-on installation into standard Lutron dimming panels (GP, LP, or XP series).
• Addressing Harness: Features an 11-pin harness connection for rapid communication setup within a TVM kit.

Item Condition (Used - Working)

• Functional Status: Used Working. All 5 modules have been pulled from an operational system and verified for communication and signal output stability.
• Physical State: Good industrial condition. The DIN rail clips are functional, and the terminal blocks are clean. Minimal signs of dust or mounting wear.
• Technical Integrity: All units have been stored in an anti-static environment to protect the sensitive internal control circuitry.
• Note: This lot includes the modules only. TVM kits, transformers, and addressing harnesses are typically required for a full installation and must be sourced separately if not already in place.

Package Includes

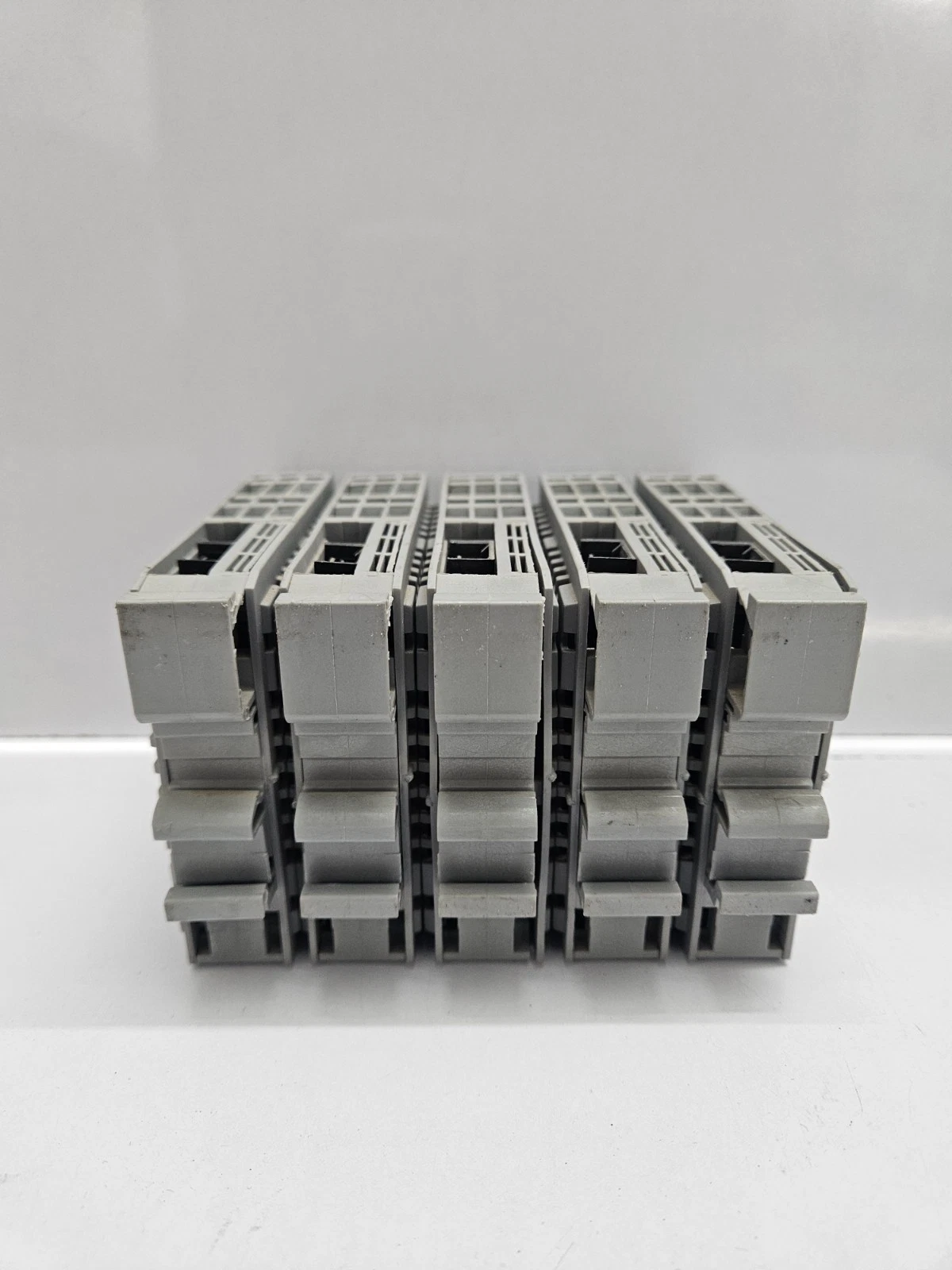

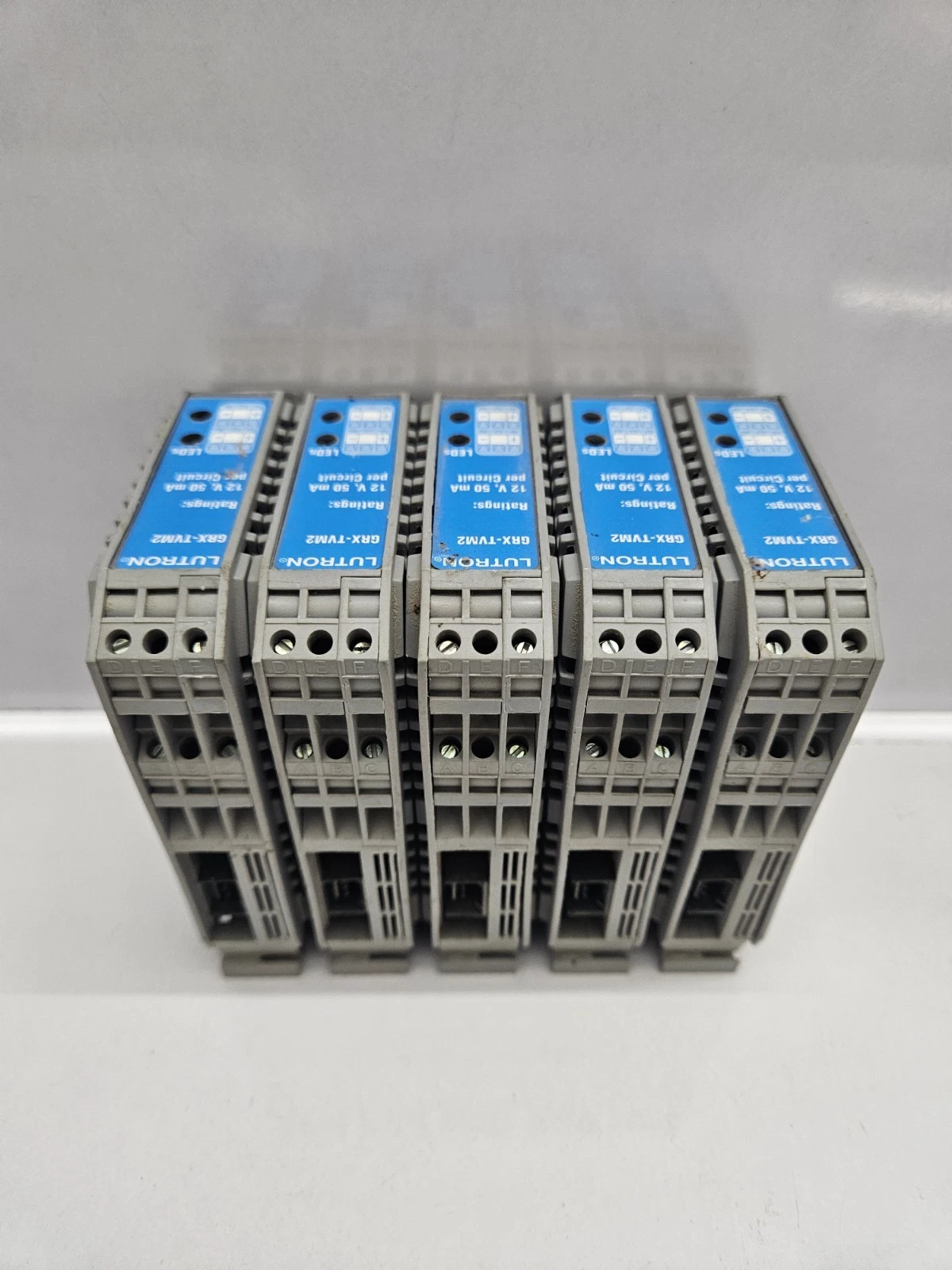

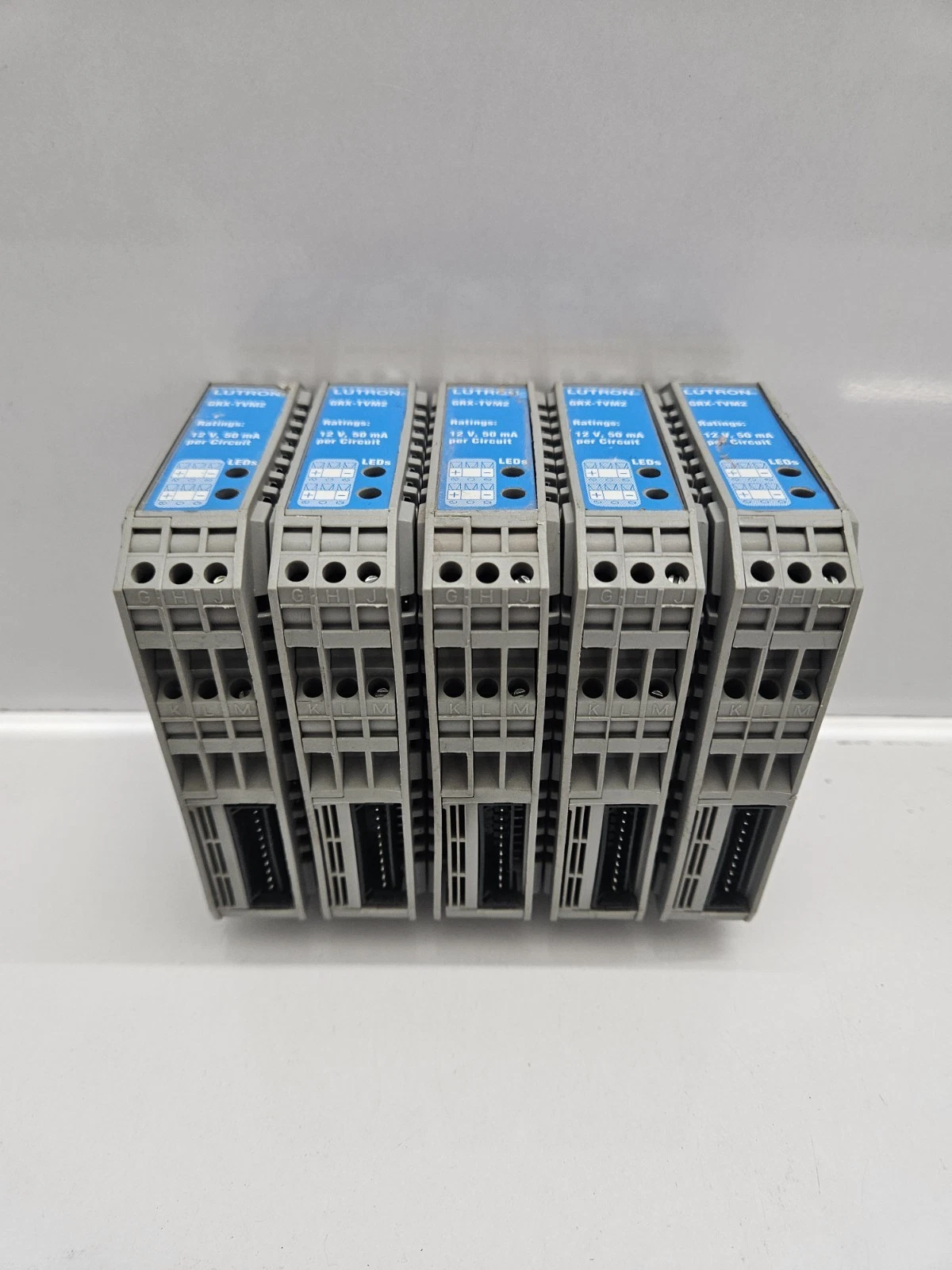

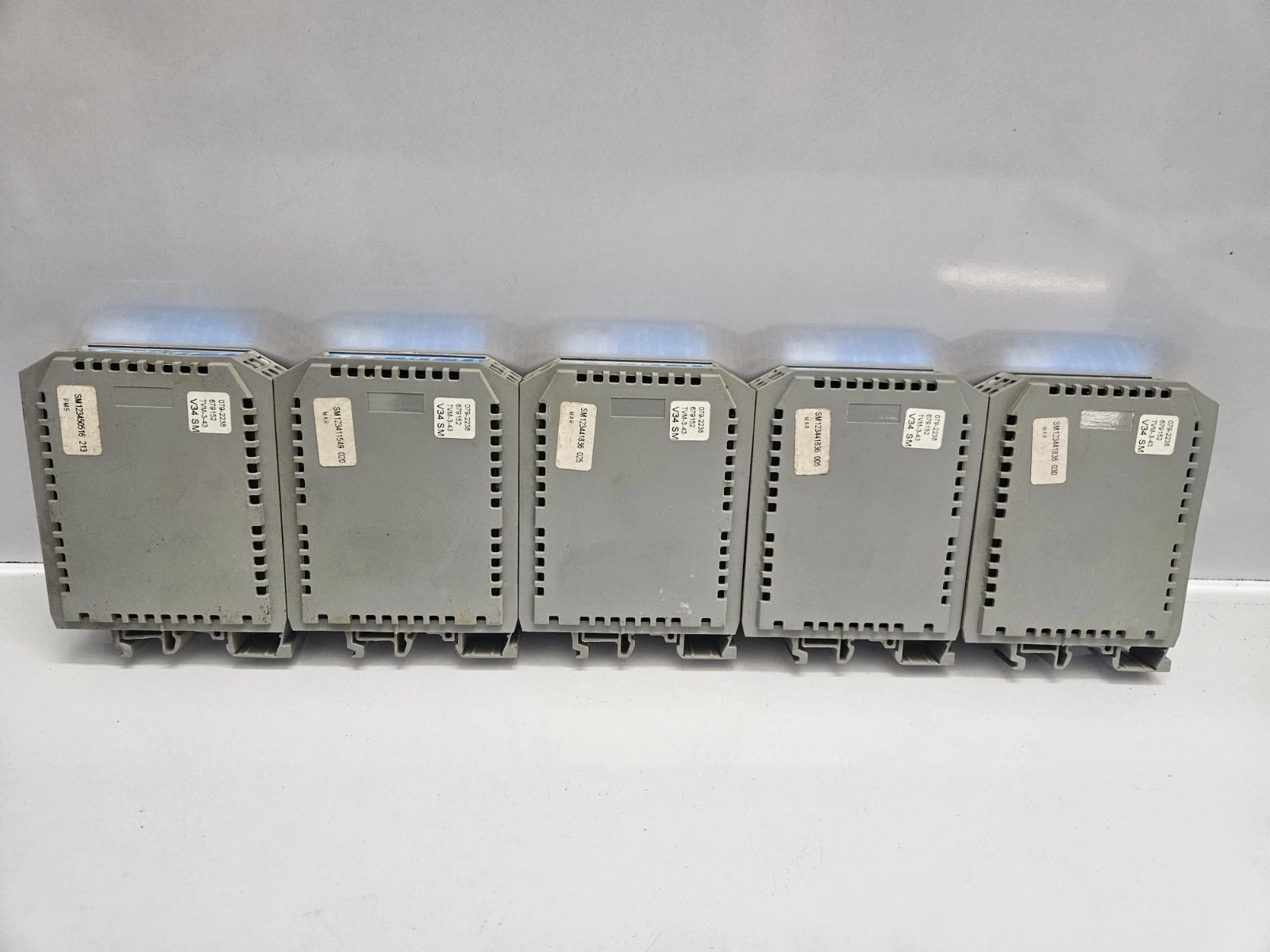

1. 5 x Lutron GRX-TVM2 Ten-Volt Control Modules
2. Attached terminal blocks for low-voltage signal wiring.
