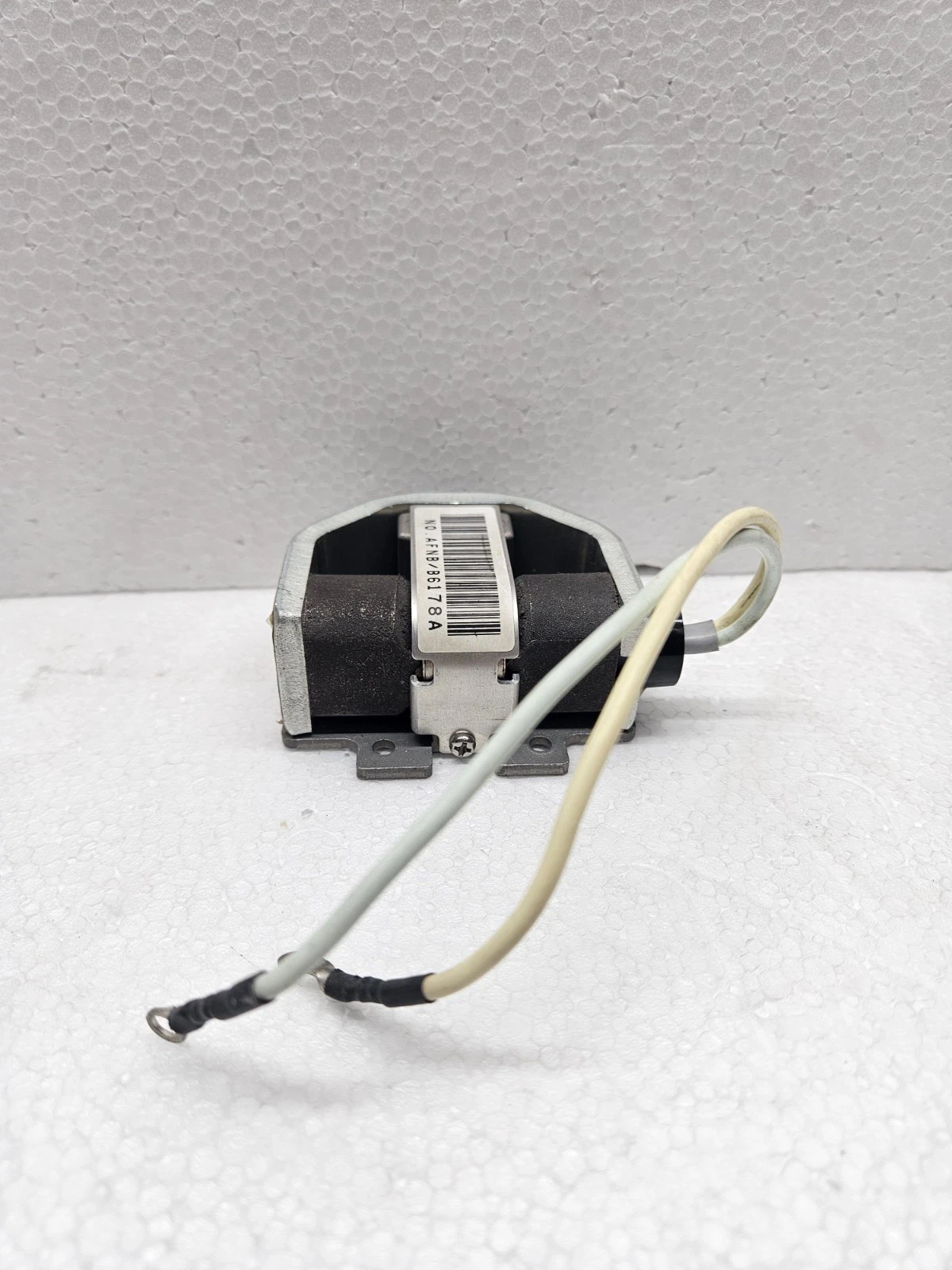

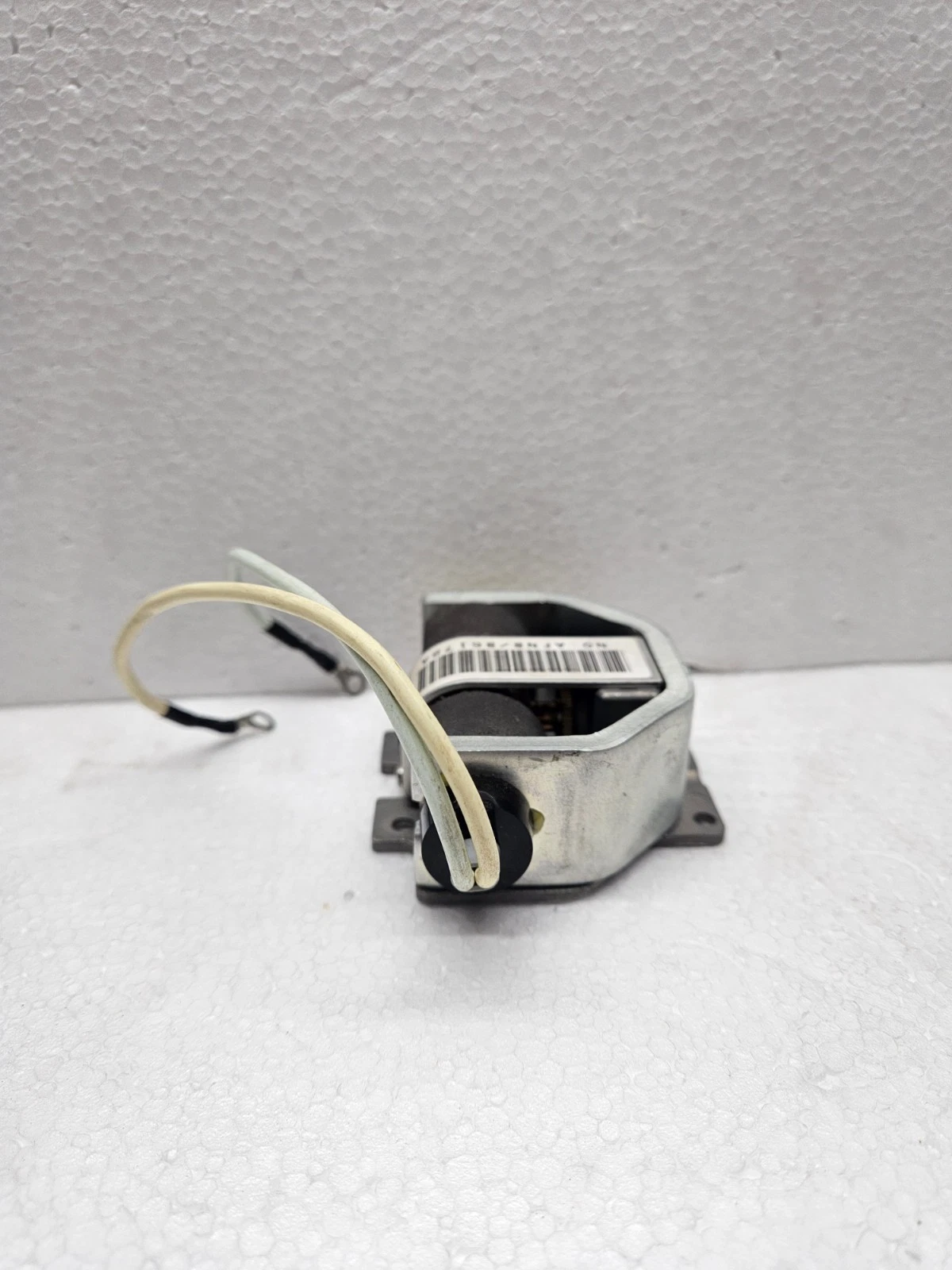

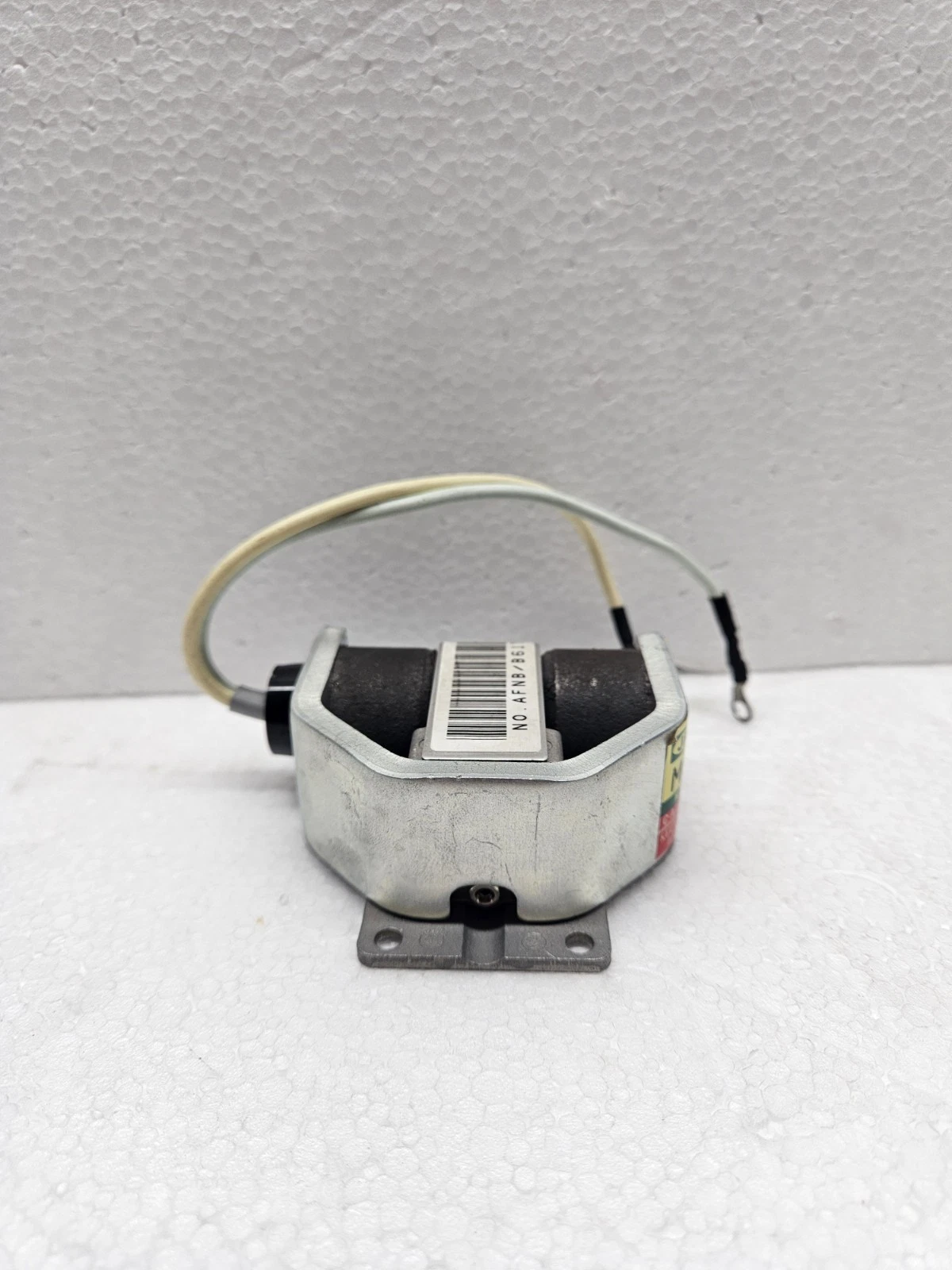

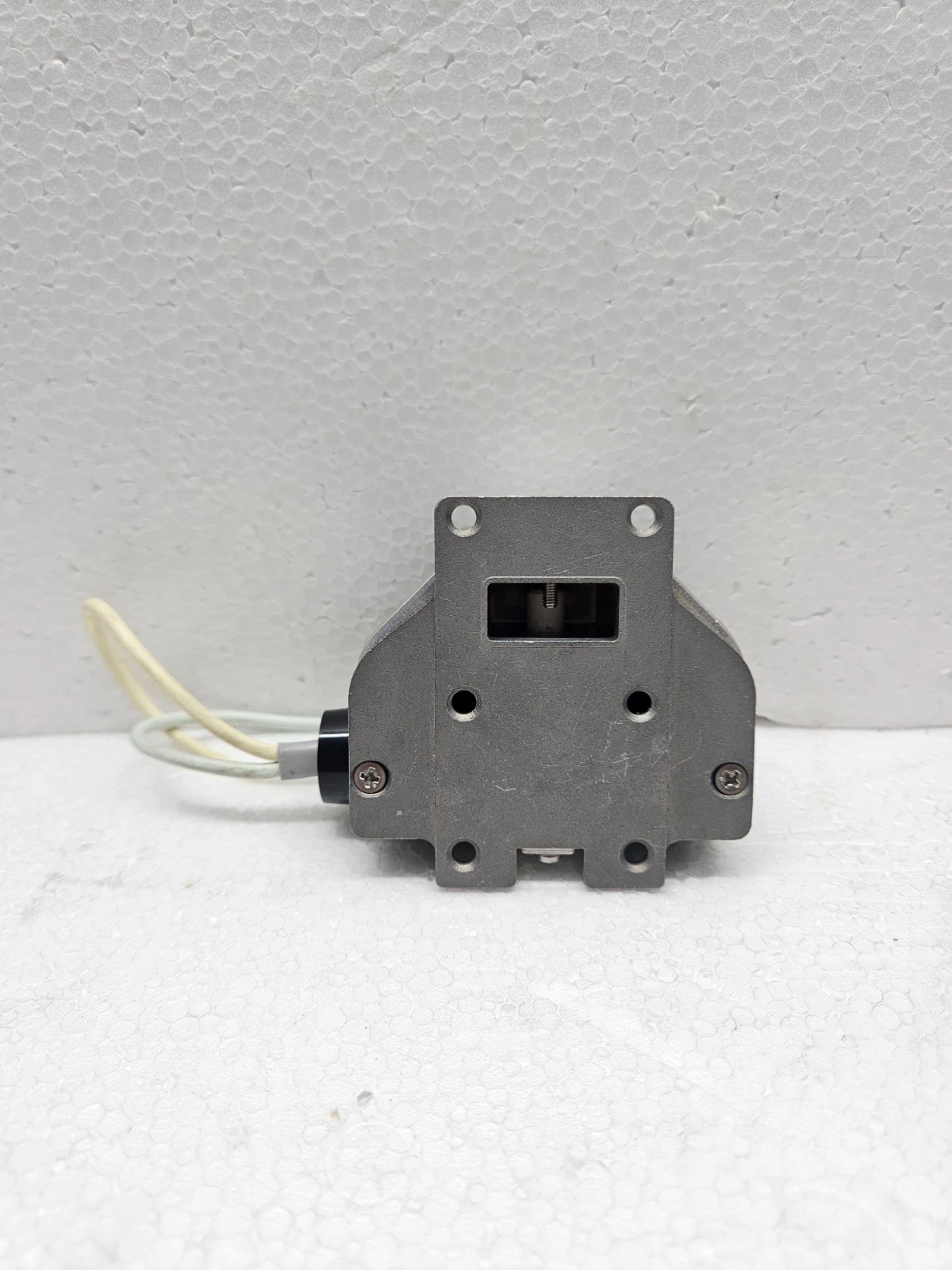

JRC MAF1565N New - Surplus X-Band Radar Radar Magnetron

Product Overview

The JRC MAF1565N is a high-reliability X-Band Radar Magnetron designed for marine navigation systems. This critical vacuum tube acts as the heart of the radar transmitter, generating high-frequency microwave pulses necessary for accurate object detection at sea. Being a New - Surplus unit, it offers the perfect balance of factory-fresh performance and reliability at a significantly lower price point than current retail distribution, making it an ideal choice for emergency repairs or as a high-priority onboard spare.

Key Features

• X-Band Frequency: Operates in the standard 9.4 GHz frequency range (X-Band), providing the high resolution required for navigating through narrow channels and detecting small targets.
• 12.5kW Peak Power: Offers a powerful 12.5kW output, providing enhanced signal penetration and longer range compared to standard 10kW models.
• JRC System Compatibility: Fully compatible with a wide range of Japan Radio Co. (JRC) radar scanners, ensuring perfect pulse synchronization.
• New-Surplus Quality: This is an unused unit from surplus stock; it has never been installed in a radar system, ensuring maximum filament life and peak cathode emission.
• Rugged Marine Design: Built to withstand the extreme vibration, humidity, and temperature cycles of the maritime environment.
• Stable Performance: Engineered for low frequency-drift, ensuring that the radar's receiver remains locked onto the transmitted pulse for a clearer screen image.

Item Condition (New - Surplus)

• Functional Status: Brand New. Never used or installed. The unit is expected to perform at 100% factory specifications.
• Physical State: Pristine. The ceramic insulators, copper cooling fins, and mounting flange are in original, unoxidized condition.
• Shelf Life: Stored in a climate-controlled environment to prevent moisture ingress or vacuum degradation.
• Technical Integrity: No signs of arcing or heater stress. The electrical connection pins are clean and straight.
• Packaging: May be shipped in original factory box or neutral protective packaging depending on the specific surplus lot.

Package Includes

1. 1 x JRC MAF1565N X-Band Radar Magnetron
2. Protective anti-static and shock-absorbent packaging.
