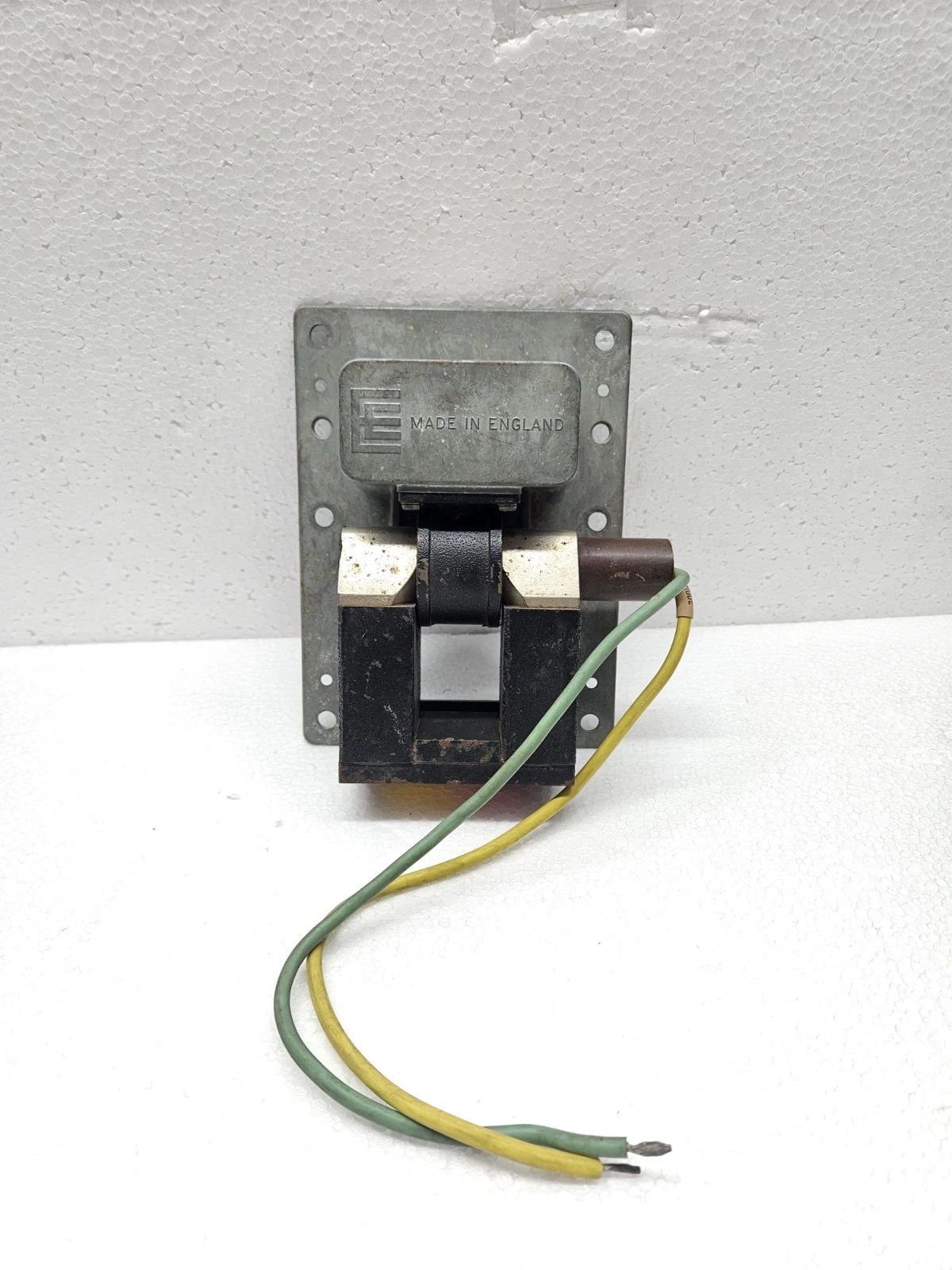

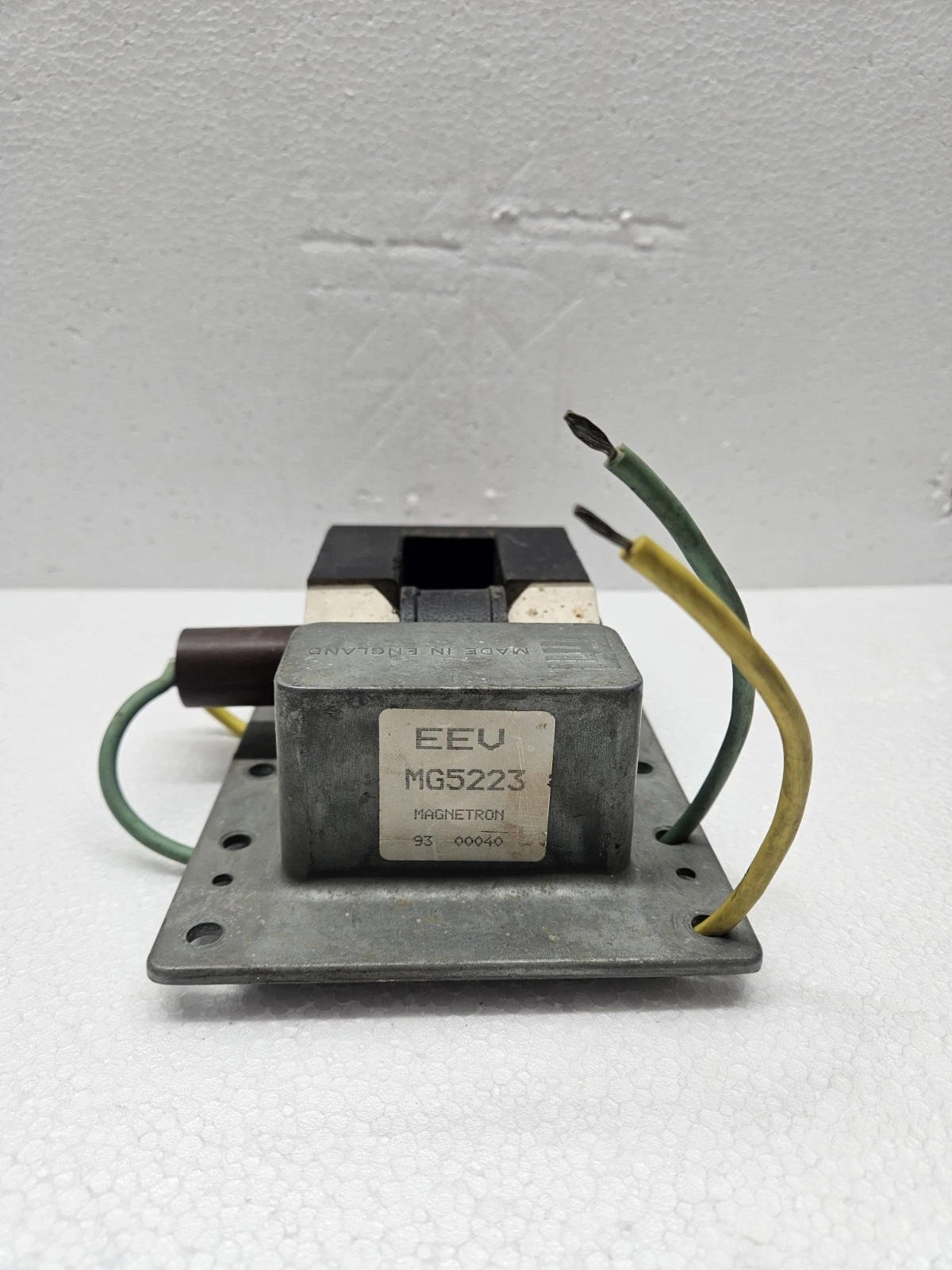

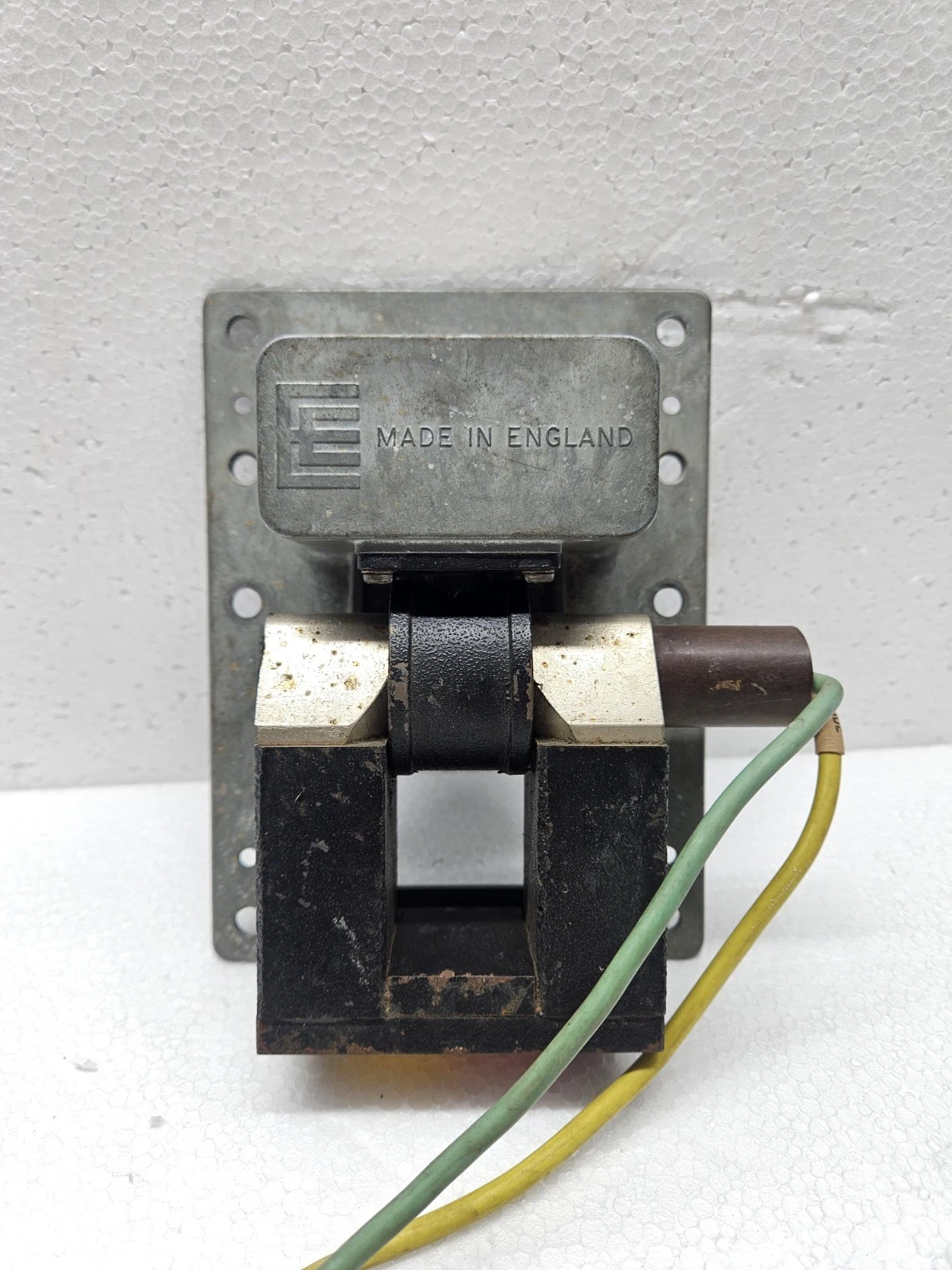

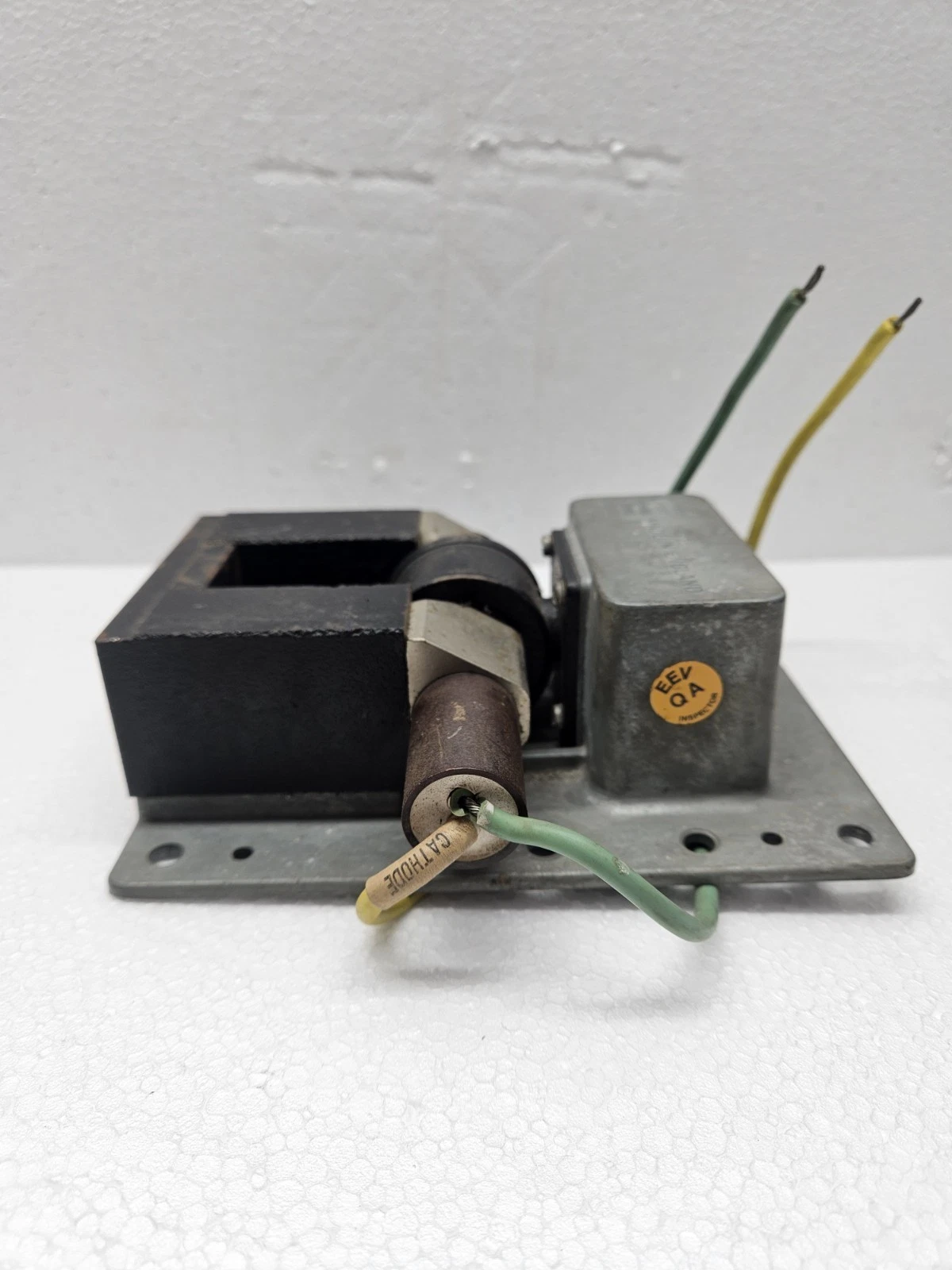

E2V TECHNOLOGIES MG5223 Used Working Radar Magnetron

Product Overview

The e2v Technologies MG5223 is a high-performance, fixed-frequency pulse magnetron specifically engineered for S-Band marine radar systems. Known for its robust construction and reliability in demanding maritime environments, the MG5223 delivers a significant peak power output of 30 kW. It is designed with an integral magnet and is compatible with standard NATO waveguide couplers, making it a primary choice for commercial and naval vessel radar maintenance. As a Used Working unit, this magnetron has been verified to maintain stable oscillation and power characteristics necessary for long-range target detection.

Key Features

• High Peak Power: Delivers a 30 kW typical peak output, ensuring strong signal return and improved radar resolution at sea.
• S-Band Precision: Operates at a fixed frequency of 3050 MHz (±10 MHz), optimized for penetrating adverse weather conditions like heavy rain or fog.

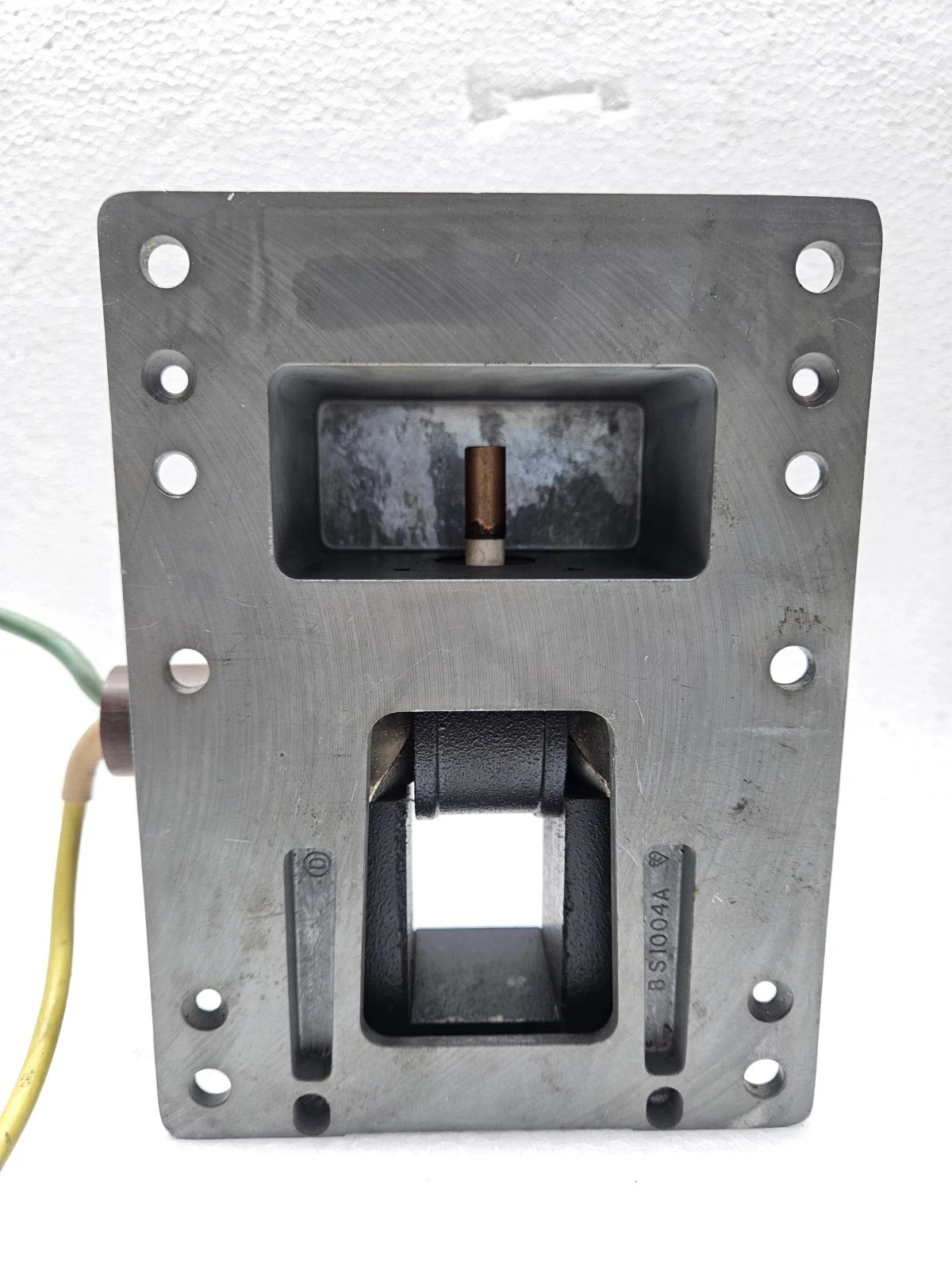

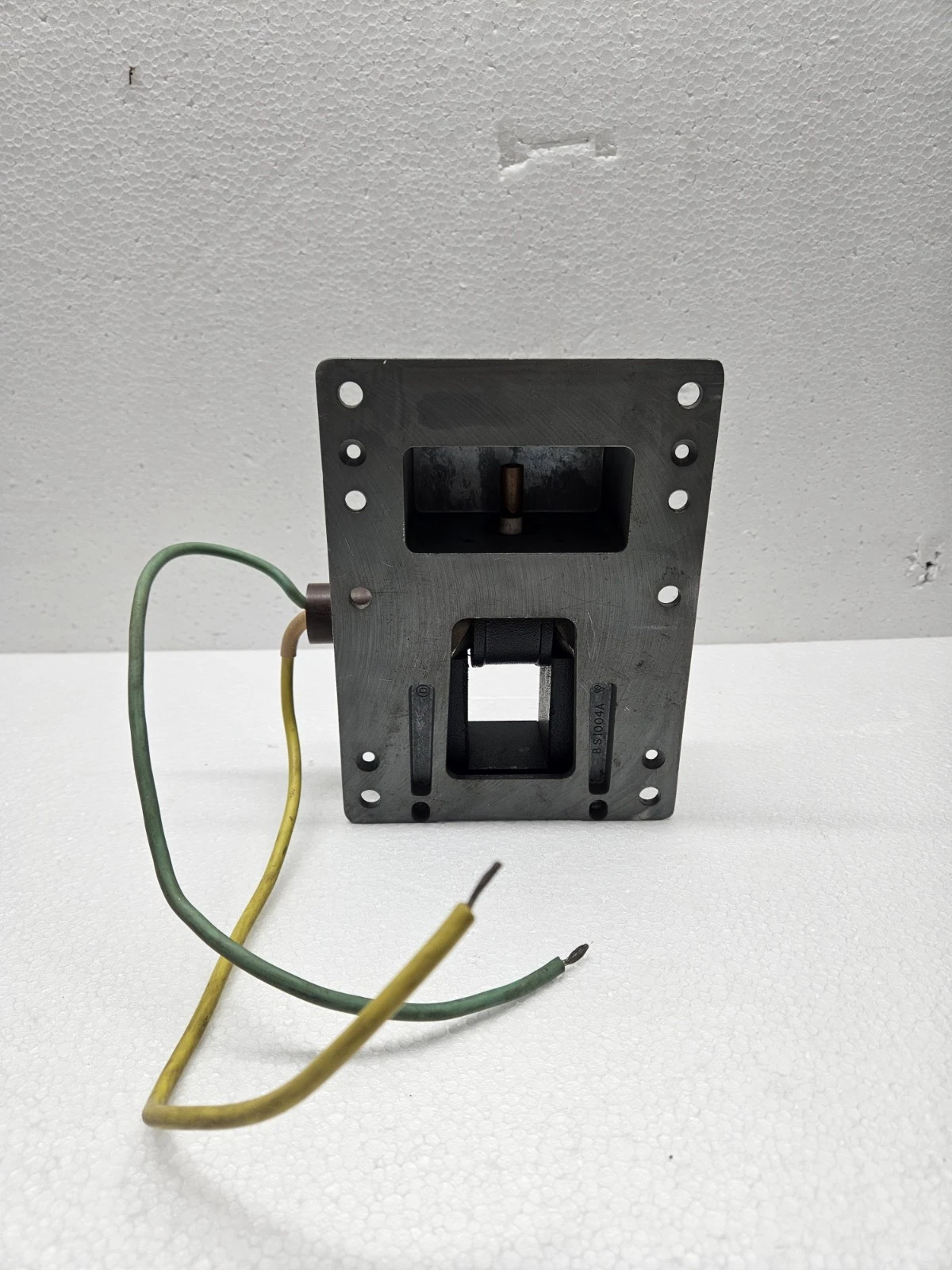

• Integrated Design: Features an integral magnet and a No. 10 waveguide output, simplifying installation within the radar's transmitter housing.
• Standardized Coupler: Mates with NATO S.N. 5985-99-083-0058, ensuring seamless replacement in a wide variety of existing radar models.
• Flexible Cooling: Capable of operating with either natural or forced-air cooling, depending on the specific enclosure environment.
• Safety Engineering: Built with e2v’s signature reliability, including internal safeguards for high-voltage and RF radiation protection.

Item Condition (Used Working)

• Functional Status: Used Working. This magnetron has been professionally tested for stable oscillation. The heater circuit is intact, and the cathode emission meets operational standards.
• Physical State: Good industrial condition. The cooling fins are straight and clear of debris. The waveguide flange is clean and free of pitting or arcing marks.
• Technical Integrity: Verified to strike correctly at rated anode voltage. The unit has been handled with care to prevent any mechanical shock to the internal vacuum structure.

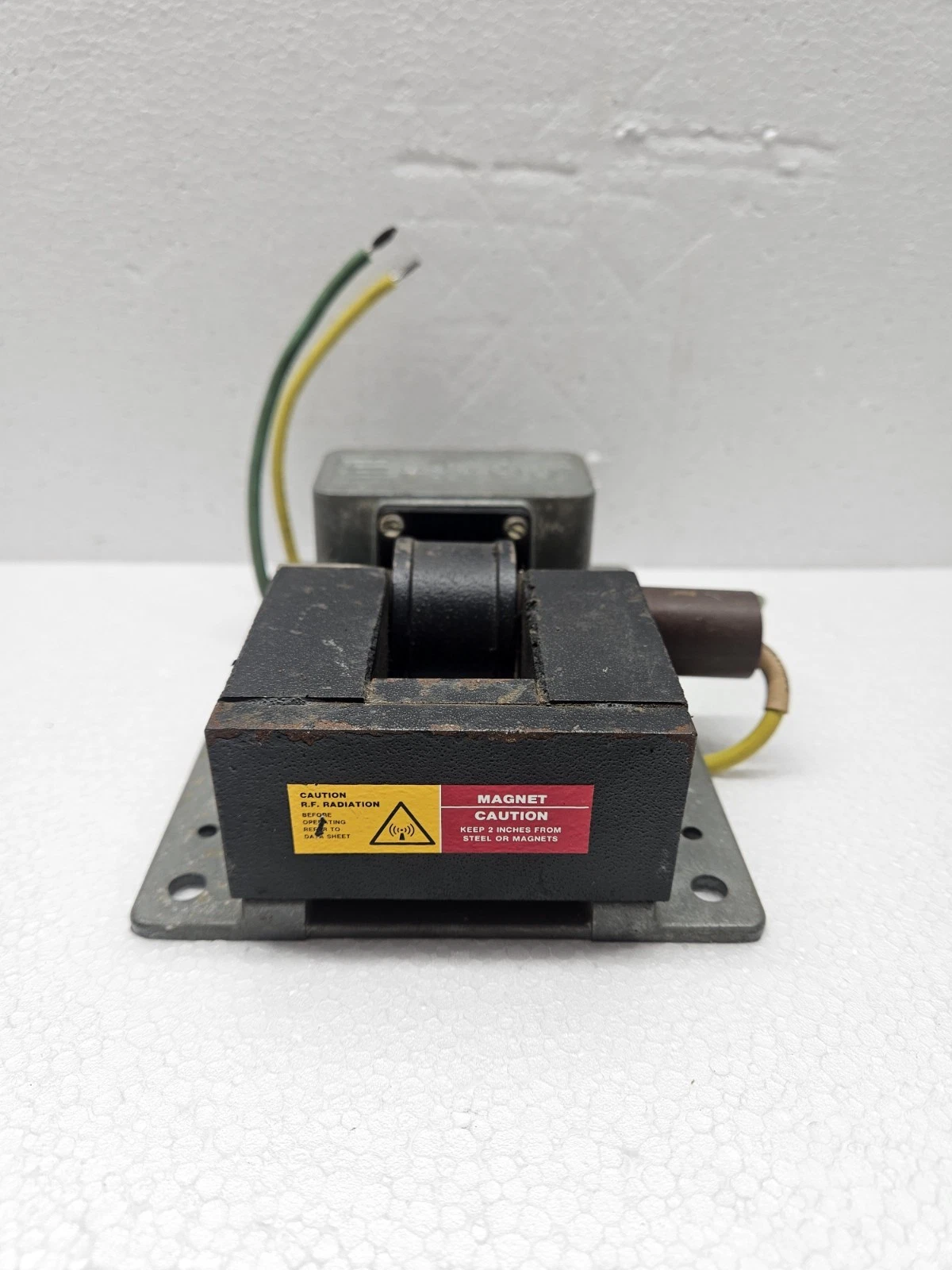

• Note: Professional installation by a radar technician is required. CAUTION: Magnetrons contain powerful magnets; ensure a minimum clearance of 50 mm from any magnetic materials or sensitive electronics during handling.

Package Includes

1. 1 x e2v Technologies MG5223 S-Band Marine Radar Magnetron
