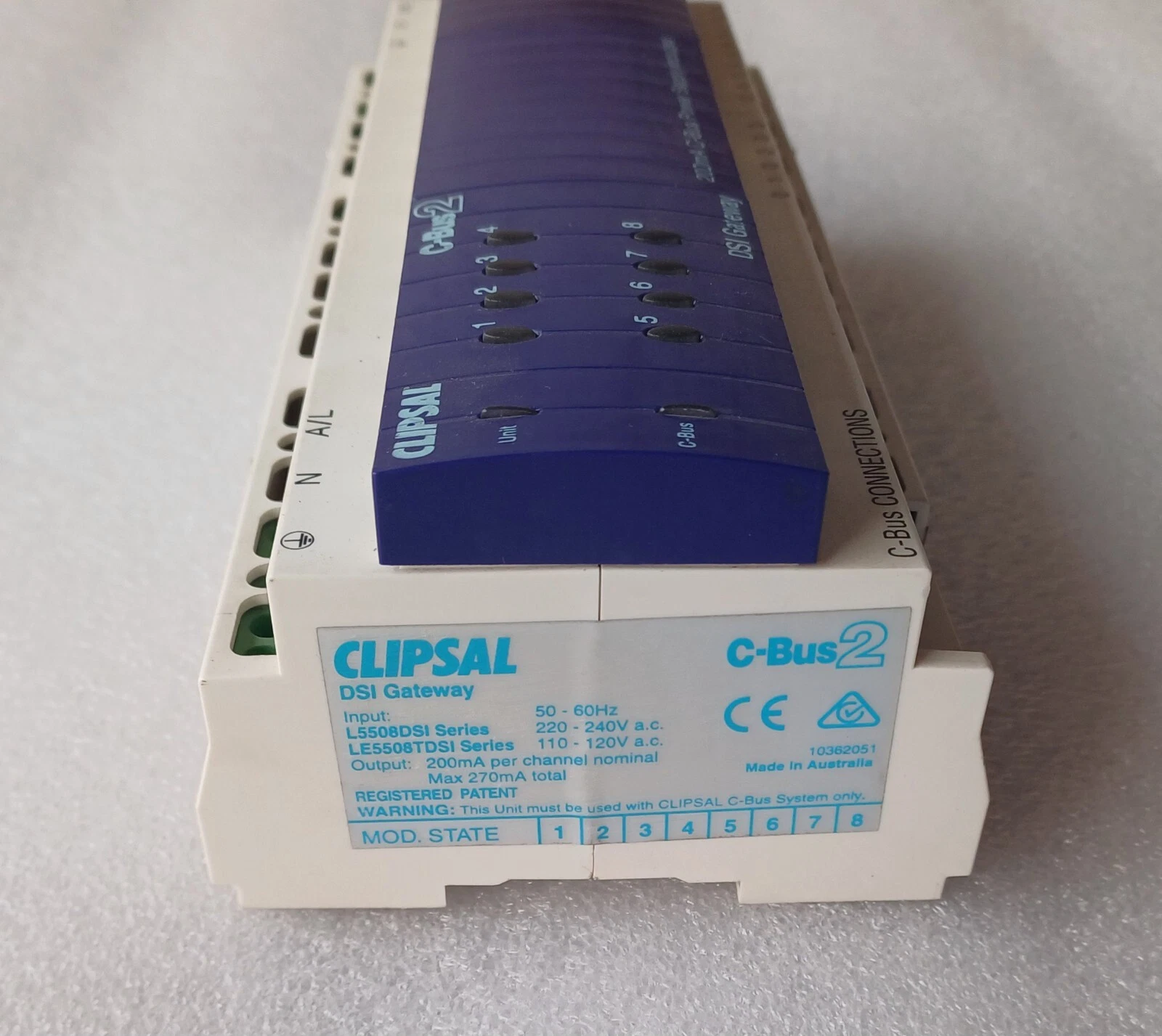

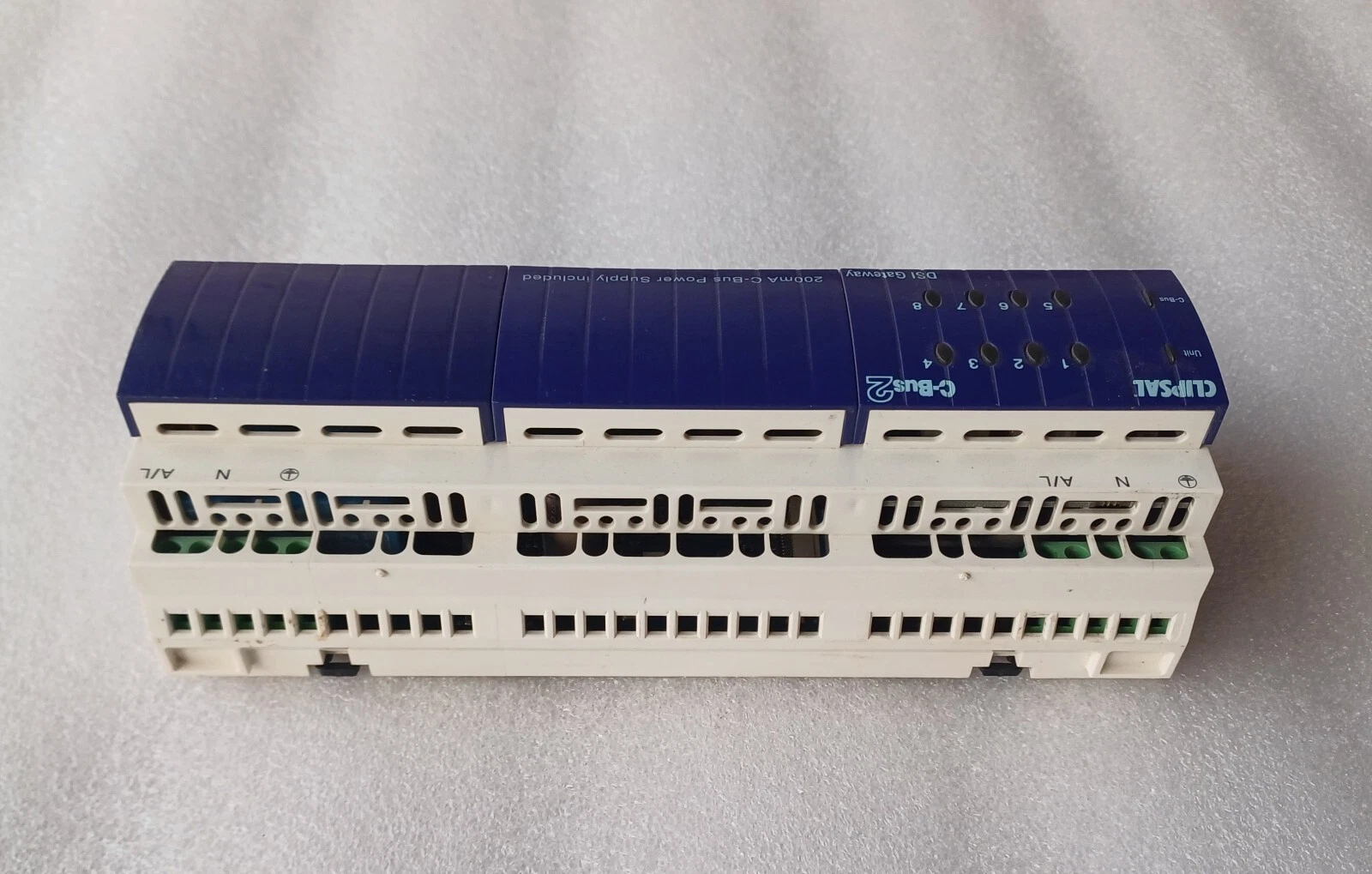

CLIPSAL L5508DSI Used Working C-Bus System DSI Gateway

Product Overview

The Clipsal L5508DSI is an 8-channel C-Bus DIN Rail DSI Gateway, designed to provide seamless digital control over DSI (Digital Signal Interface) compatible electronic ballasts and transformers. This module acts as a high-performance bridge between a C-Bus automation network and digital lighting hardware, allowing for precise dimming, scene setting, and energy management. As a Used Working unit, it offers a reliable way to maintain or expand high-end residential and commercial lighting control systems using the globally recognized C-Bus protocol.

Key Features

• 8 Independent DSI Channels: Provides control for up to 8 separate groups of DSI ballasts, with each channel capable of driving multiple ballasts (typically up to 50 per channel).
• Precise Digital Dimming: Unlike traditional phase-cut dimming, DSI provides a digital signal to the ballast, ensuring flicker-free operation and consistent light levels across all connected fixtures.
• C-Bus Network Integration: Fully programmable via C-Bus Toolkit software, allowing for integration into complex logic, timers, and remote control scenarios.

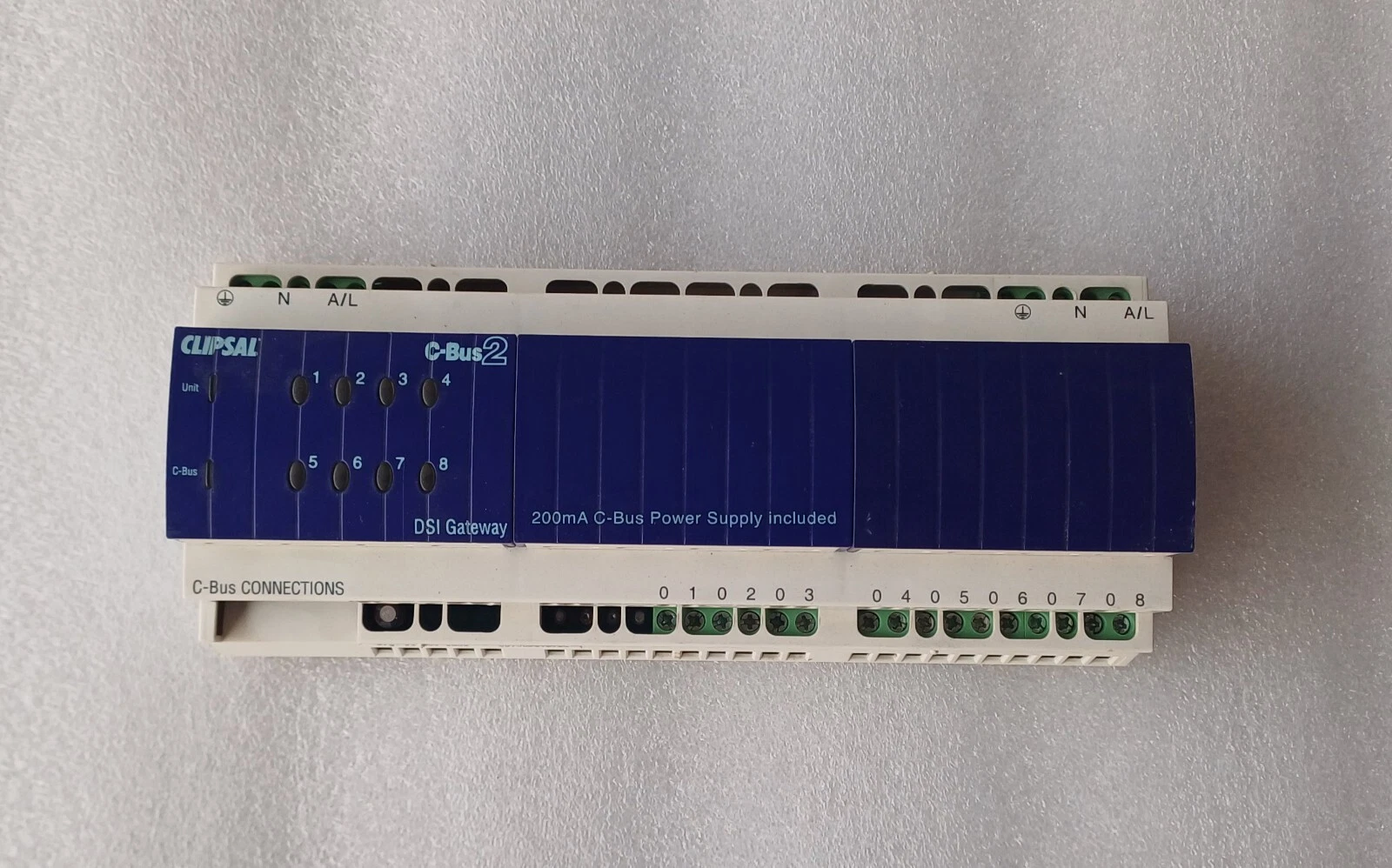

• On-Board Manual Override: Features front-panel toggle switches for each channel, allowing for manual lighting control during commissioning or in emergency situations.
• Standard 12M DIN Rail Width: Designed for easy installation in standard electrical distribution boards, taking up 12 modules of space.
• Status Monitoring: Equipped with network and unit status LEDs to provide immediate feedback on C-Bus communication and module power.

Item Condition (Used Working)

• Functional Status: Used Working. This gateway has been professionally removed from a functional C-Bus installation. Each of the 8 DSI channels has been tested for correct signal output and response to C-Bus commands.

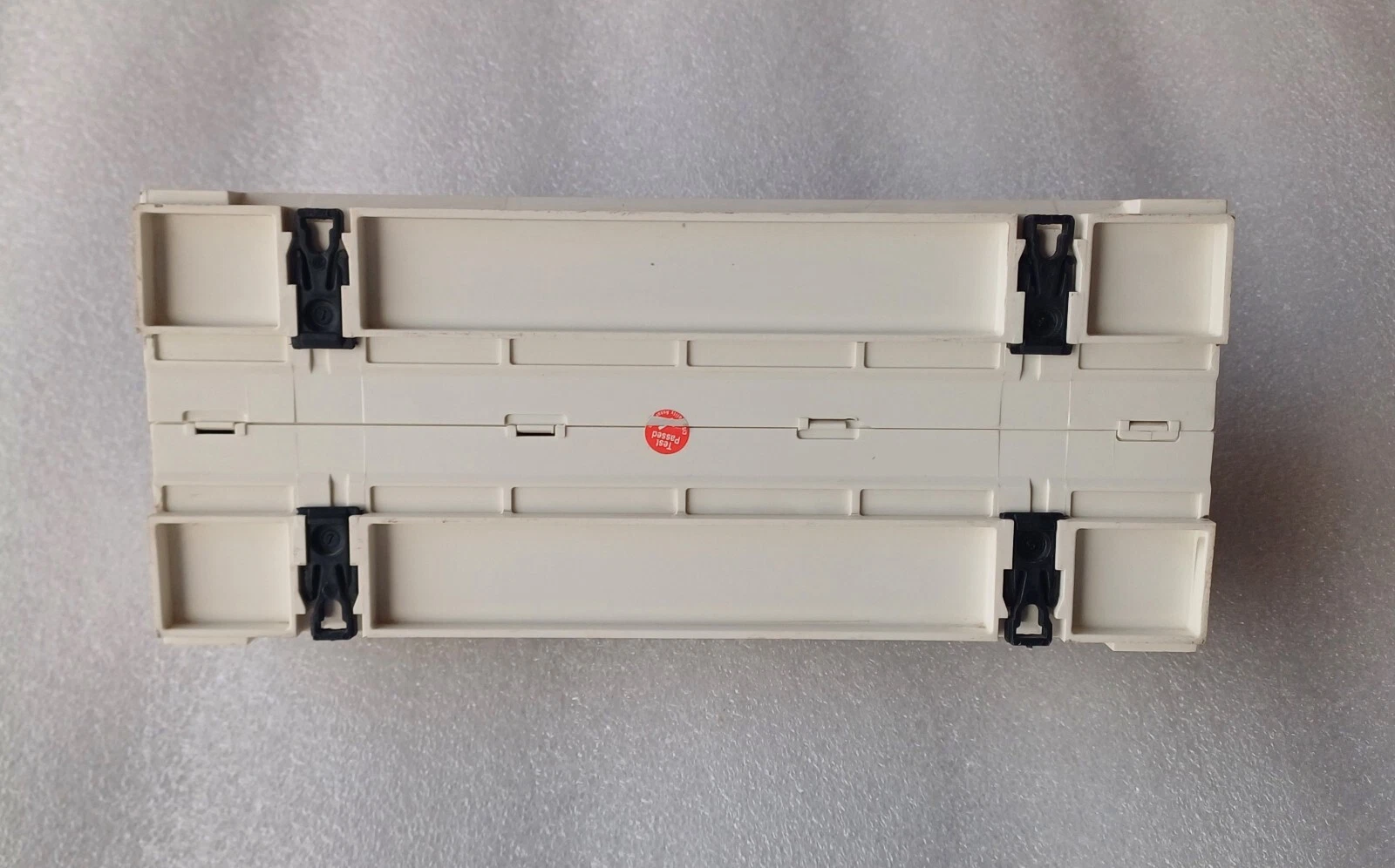

• Physical State: Clean industrial condition. The DIN rail mounting clips are secure, and the screw terminals are free of damage or over-tightening. The manual override switches operate with a firm, positive click.
• Technical Integrity: The internal C-Bus interface and DSI signal generators are fully operational. The unit has been cleared of previous programming and is ready for discovery and configuration in a new C-Bus project.
• Note: Professional installation by a C-Bus certified integrator is recommended. Please ensure that your lighting ballasts are specifically DSI-compatible (and not DALI) before installation.

Package Includes

1. 1 x Clipsal L5508DSI 8-Channel C-Bus DSI Gateway
