CLIPSAL 5500PC Used Working C-Bus2 System PC Interface

Product Overview

The Clipsal 5500PC is a critical communication bridge for the C-Bus Home and Building Automation System. This PC Interface allows for a permanent or temporary connection between a personal computer and a C-Bus network. It is the essential tool for installers and facility managers to configure, commission, and monitor C-Bus devices using the C-Bus Toolkit software. Additionally, it can be used by third-party systems to send and receive commands to the lighting and automation network. This Used Working unit provides a reliable, cost-effective way to manage your existing C-Bus infrastructure without the premium cost of a brand-new interface.

Key Features

• C-Bus Network Integration: Provides a stable RS-232 serial interface between a PC and the C-Bus high-speed communication protocol.
• DIN Rail Mountable: Designed for clean installation within standard electrical distribution boards, occupying only 4 standard DIN modules.
• System Programming Tool: The primary hardware required for using the C-Bus Toolkit to program addresses, groups, and logic for switches, dimmers, and relays.
• Bi-Directional Communication: Facilitates full two-way communication, allowing for real-time status feedback and event logging from the network.
• Galvanic Isolation: Features built-in isolation between the C-Bus network and the connected PC to protect sensitive computer hardware from network electrical surges.

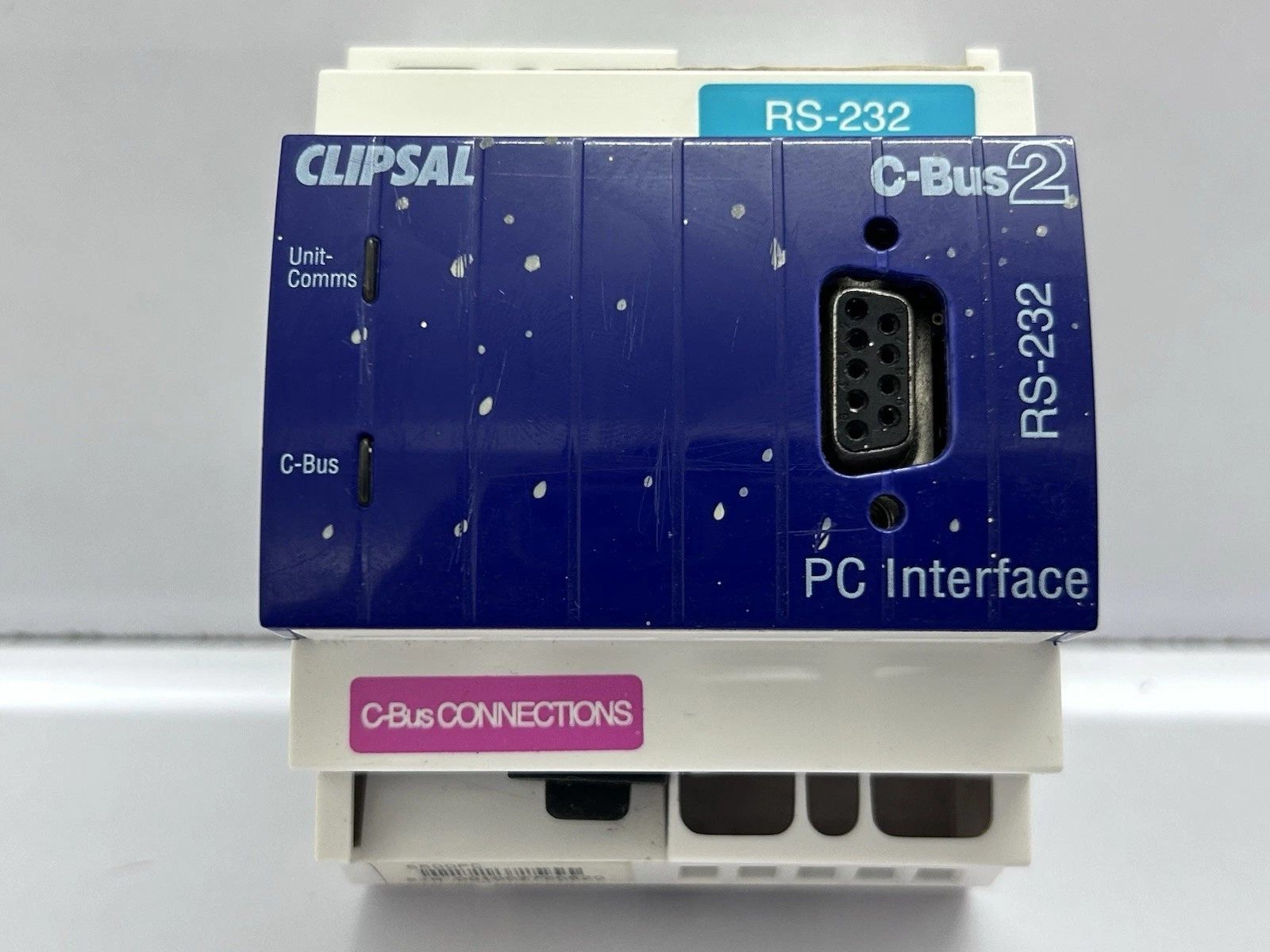

• Diagnostic Indicators: Equipped with front-panel LED indicators for "C-Bus" status and "Unit" power, aiding in rapid network troubleshooting.

Item Condition (Used - Working)

• Functional Status: Used - Working. This unit was professionally removed from a fully operational C-Bus installation. It has been bench-tested for communication and power-up.

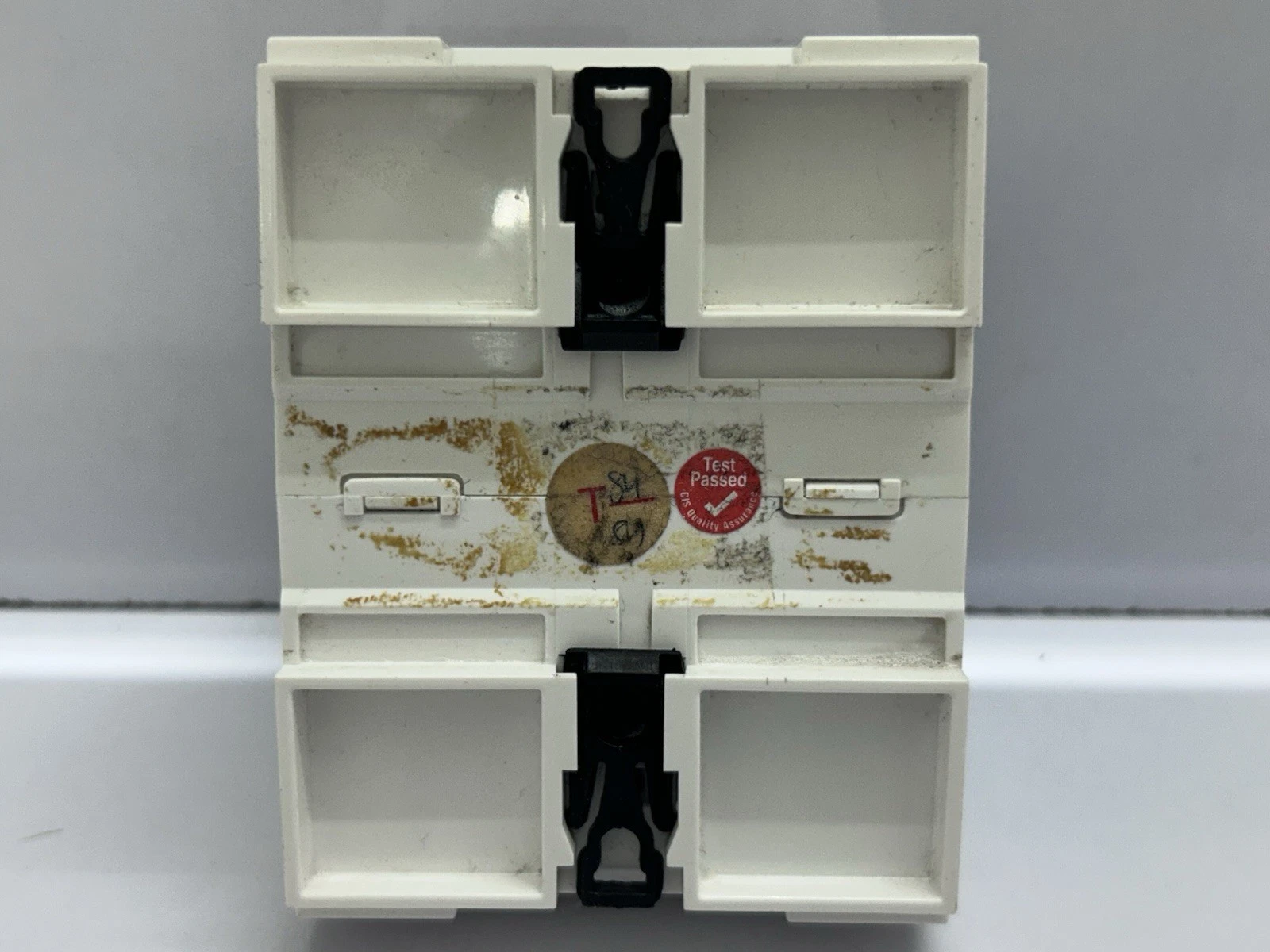

• Physical State: Shows minor cosmetic signs of previous use, such as light scratches on the plastic casing. The DIN rail mounting clip and serial port pins are in excellent condition.

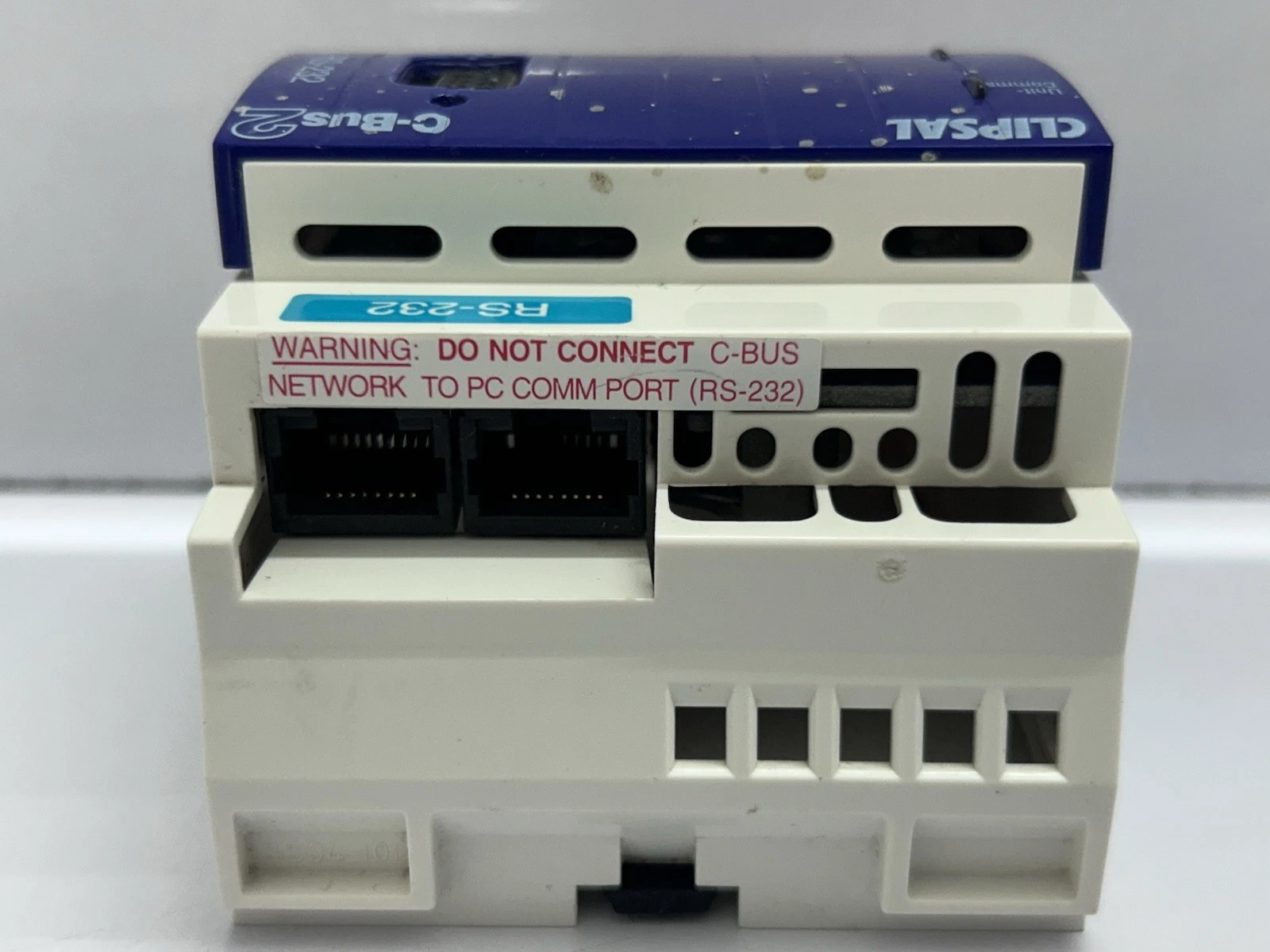

• Connection Ports: The RJ45 C-Bus ports and the RS-232 DB9 port are clean and provide secure connections.

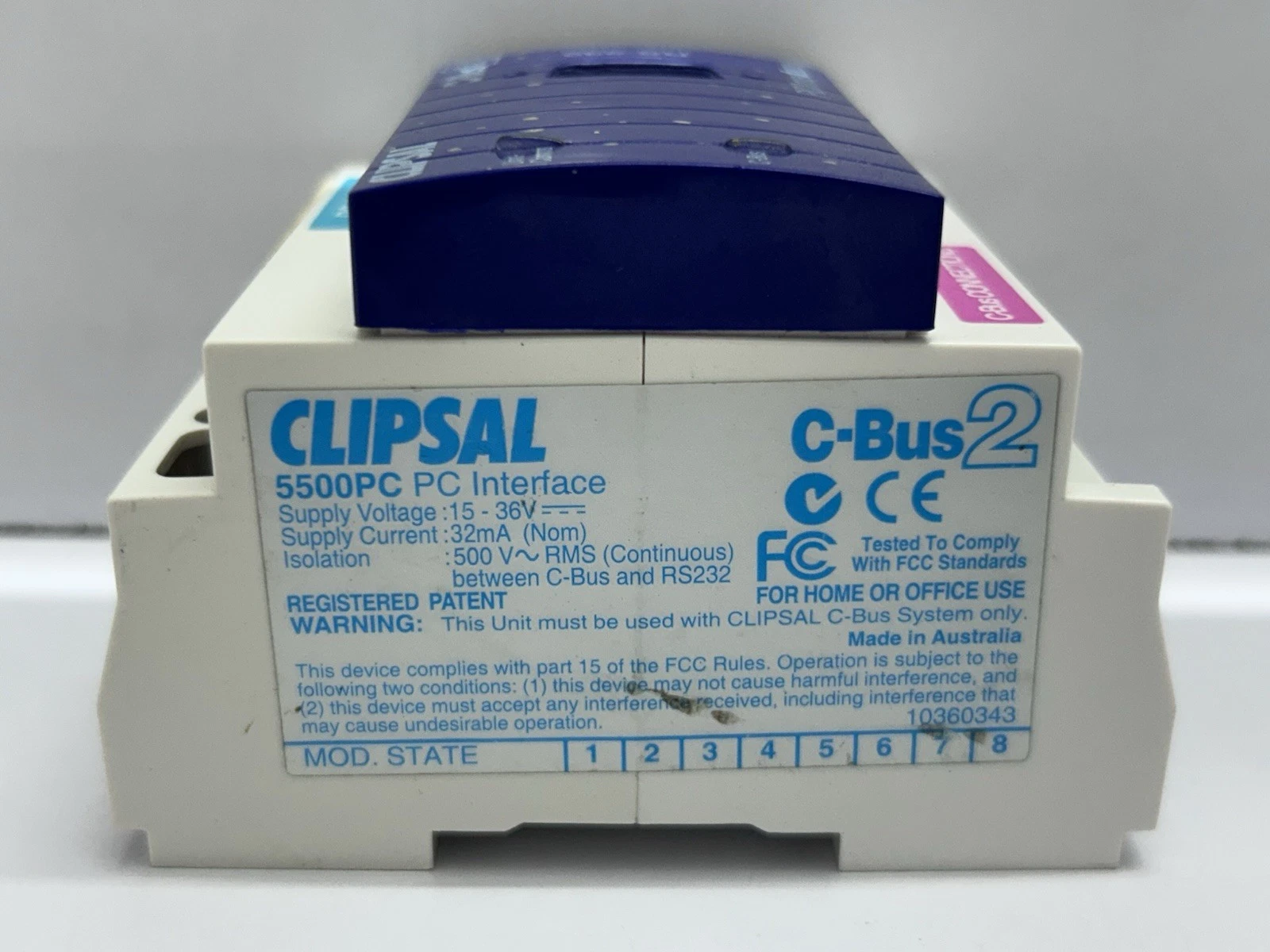

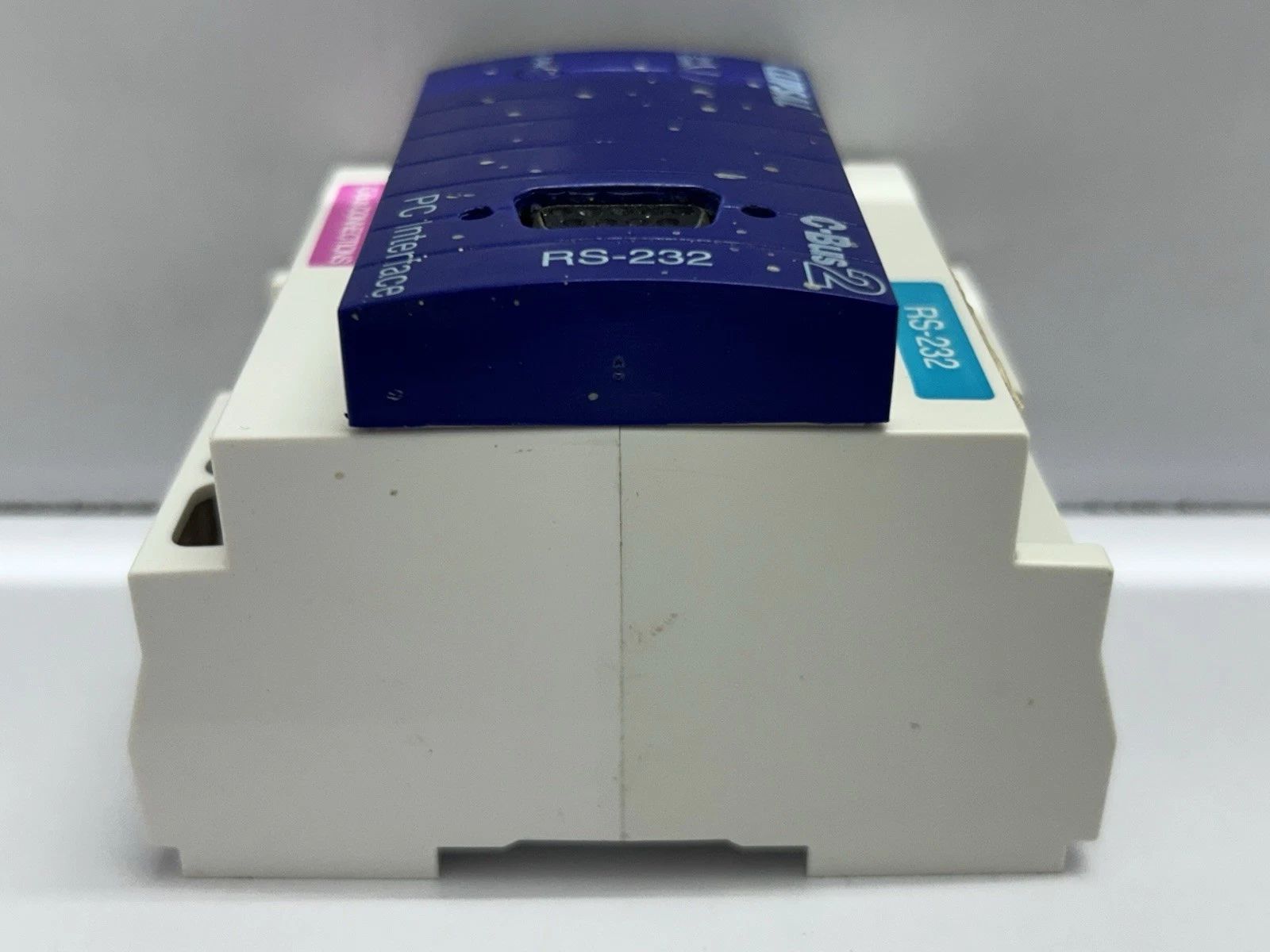

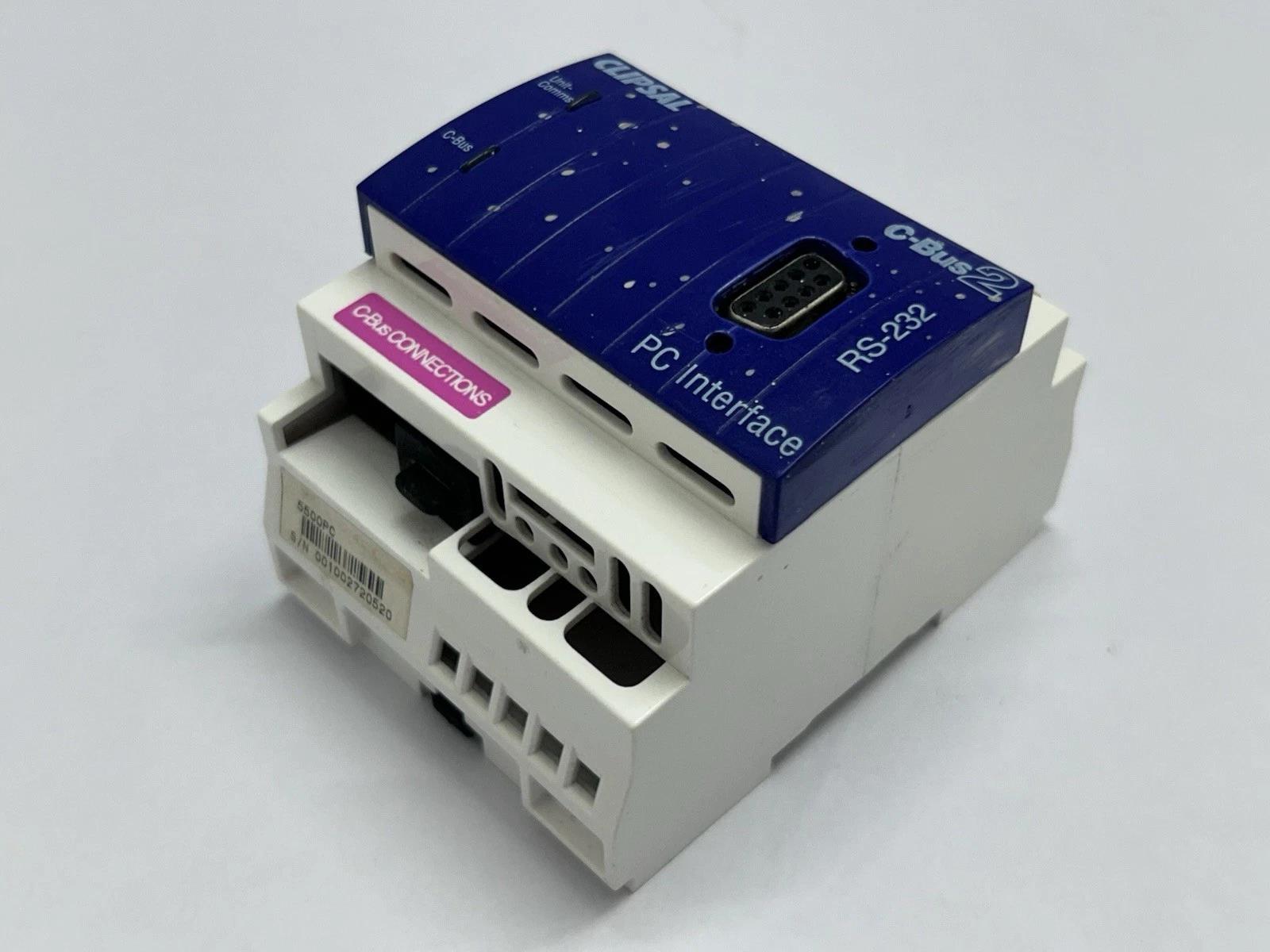

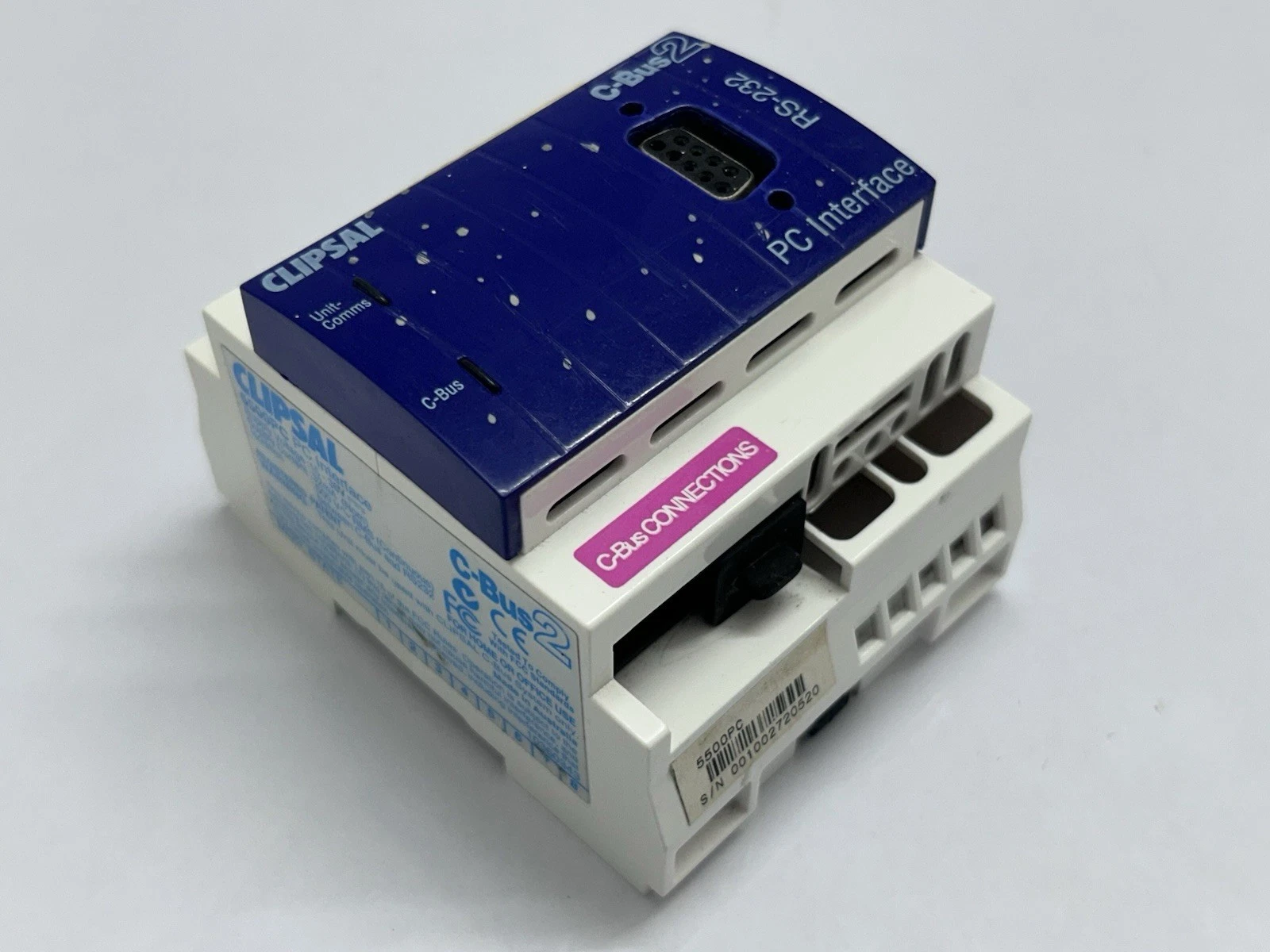

• Visual Reference: Please refer to the high-resolution images to confirm the physical condition and firmware version; the unit pictured is the exact interface you will receive.

Package Includes

1. 1 x Clipsal 5500PC C-Bus PC Interface (Used)
2. Note: Does not include a DB9 serial cable or C-Bus patch leads. Programming software (C-Bus Toolkit) must be downloaded separately from the Schneider Electric/Clipsal website.
