CLIPSAL 5500PACA Used Working C-Bus Pascal Logic Controller

Product Overview

The Clipsal 5500PACA is a high-level C-Bus Pascal Automation Controller (PAC) designed to add complex logic and conditional intelligence to a C-Bus Home or Building Automation system. Unlike standard interfaces, the PAC allows for "if-then-else" programming, scheduling, and mathematical operations using the Pascal programming language. This enables advanced automation scenarios, such as sophisticated lighting sequences, occupancy-based climate adjustments, and integration logic that basic wall switches cannot handle. This Used Working unit is a vital upgrade for any C-Bus installation requiring autonomous, logic-driven control without the need for a dedicated PC running 24/7.

Key Features

• Advanced Logic Engine: Utilizes the Pascal programming language to execute complex automation scripts, timers, and conditional logic.
• Autonomous Operation: Once programmed via the C-Bus Toolkit and PICED software, the unit runs independently, ensuring the building stays "smart" even without a computer connected.
• Large Memory Capacity: Stores extensive schedules and logic programs to manage high-density residential or commercial C-Bus networks.
• Real-Time Clock: Includes an internal clock for precise scheduling of events based on time of day, date, or sunrise/sunset calculations.
• Dual RS-232 Ports: Features two serial ports for connecting to external third-party systems, such as security panels, AV equipment, or HVAC systems.
• DIN Rail Mounting: Compact 4-module wide design for easy installation within standard electrical switchboards alongside other C-Bus DIN rail components.

Item Condition (Used - Working)

• Functional Status: Used - Working. This unit has been salvaged from an active automation system. It has been factory reset and tested for communication and logic execution.
• Physical State: Shows typical signs of installation, such as minor surface scuffs on the housing. All terminal screws and the DIN rail clip are fully functional.
• Connectors: The DB9 serial ports and RJ45 C-Bus connectors are clean and provide reliable signal contact.

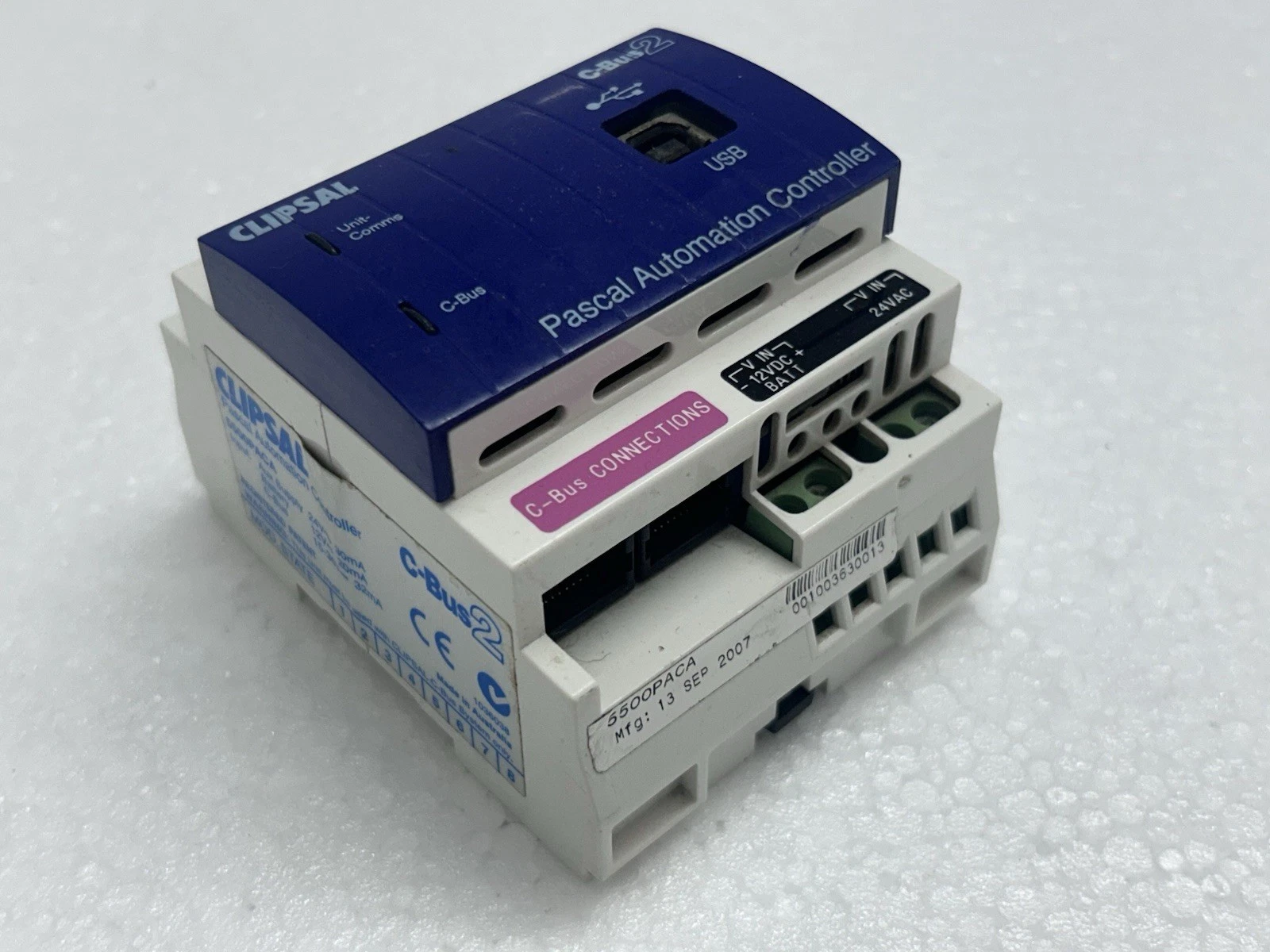

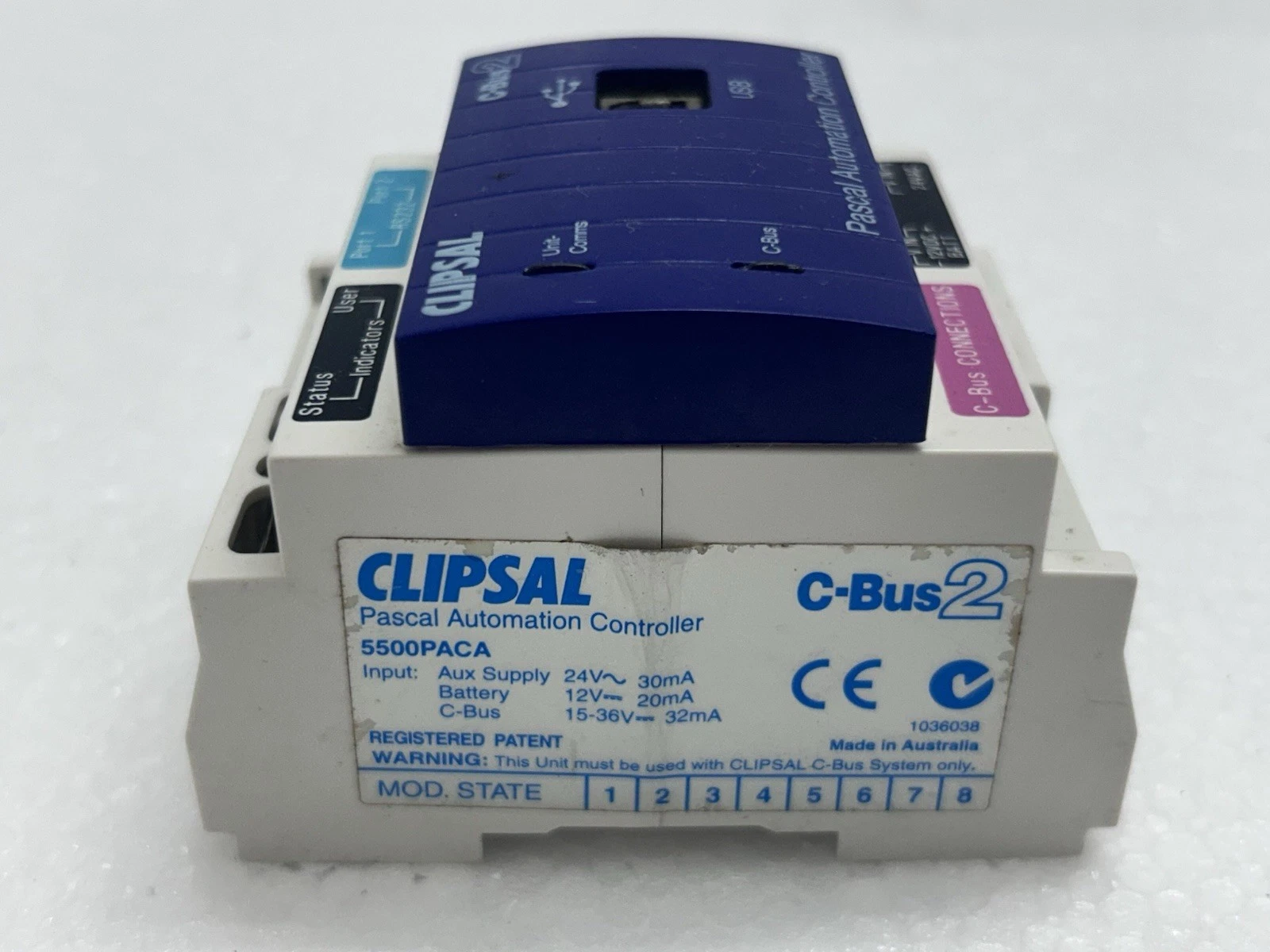

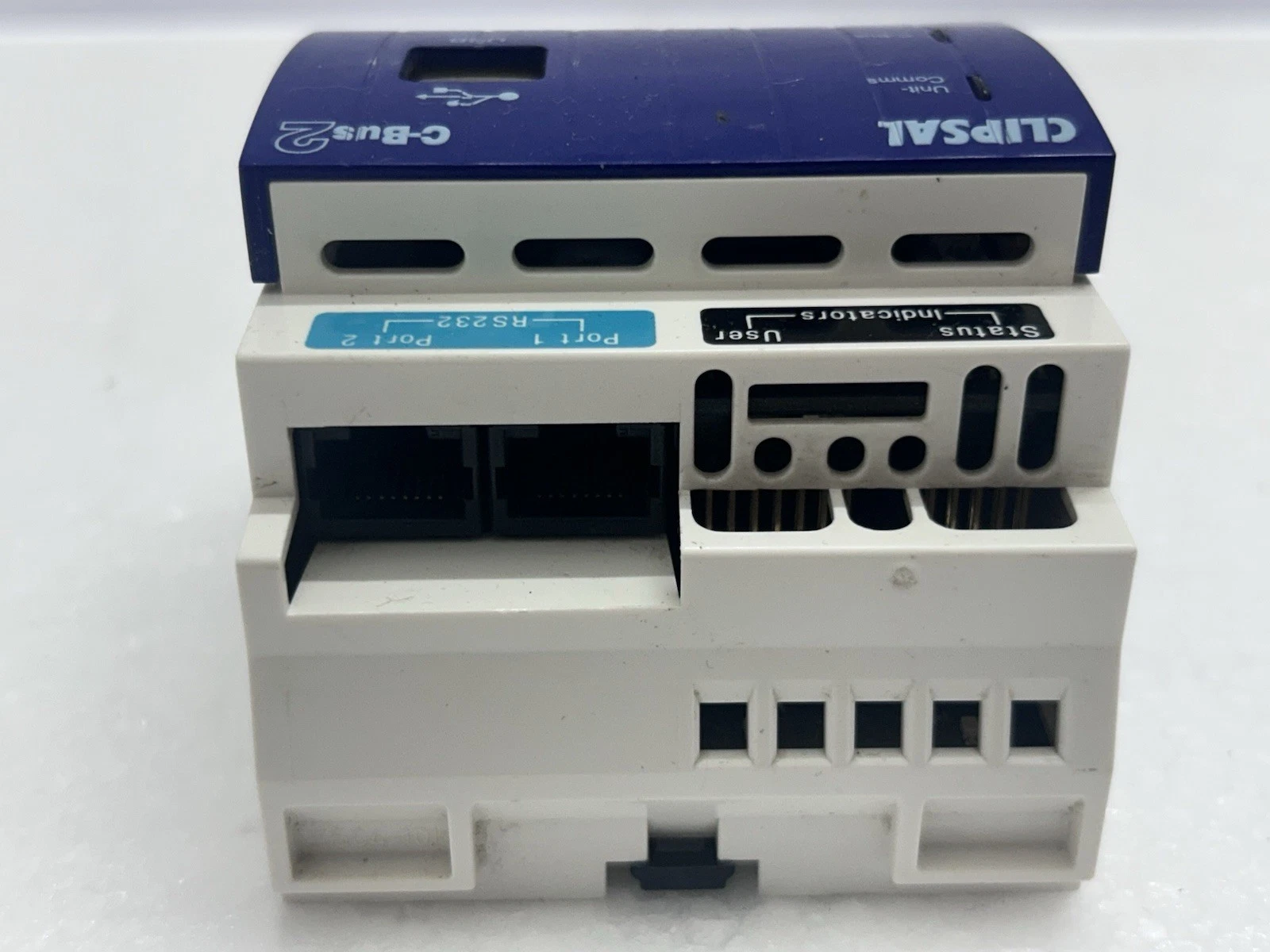

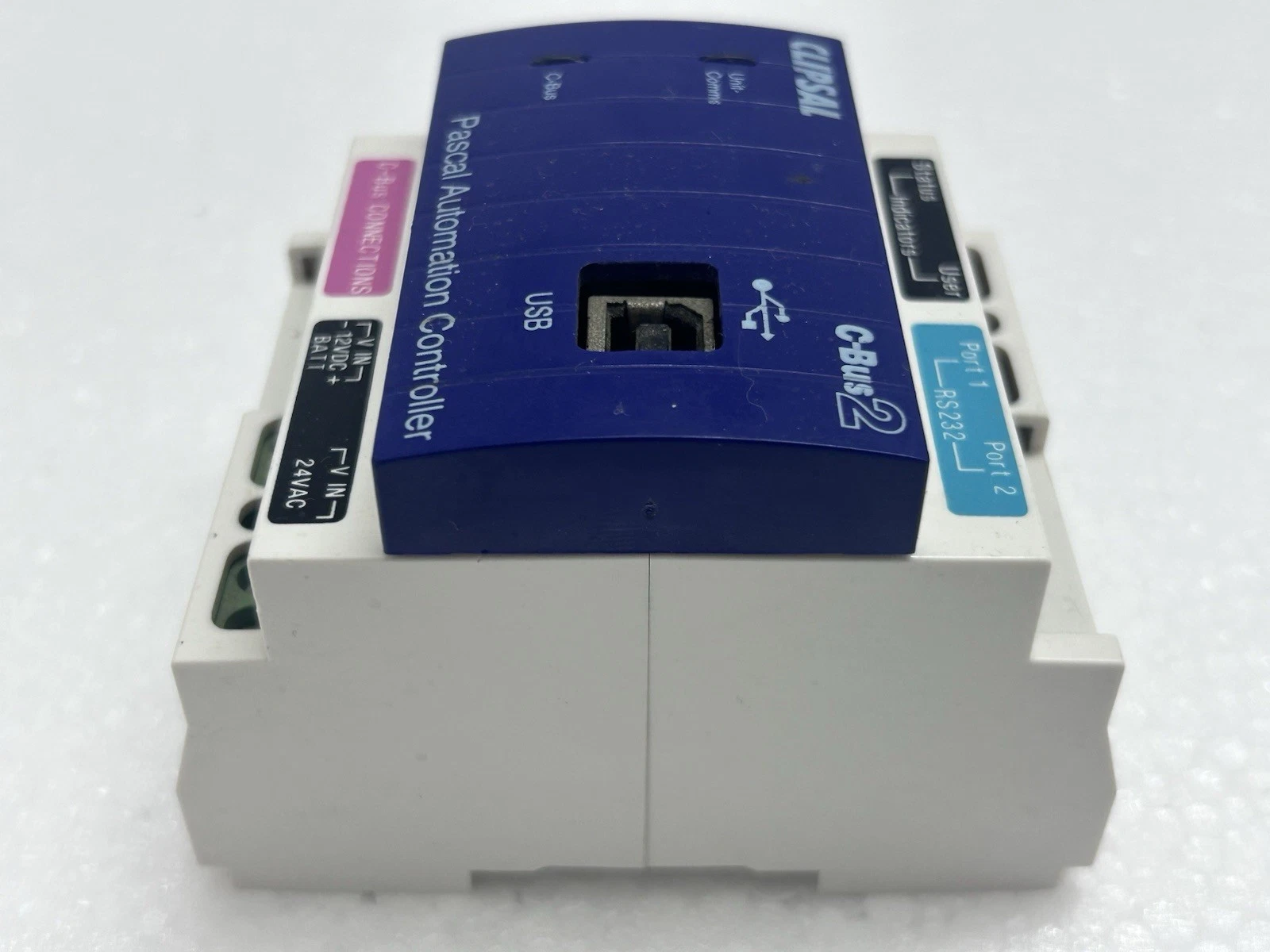

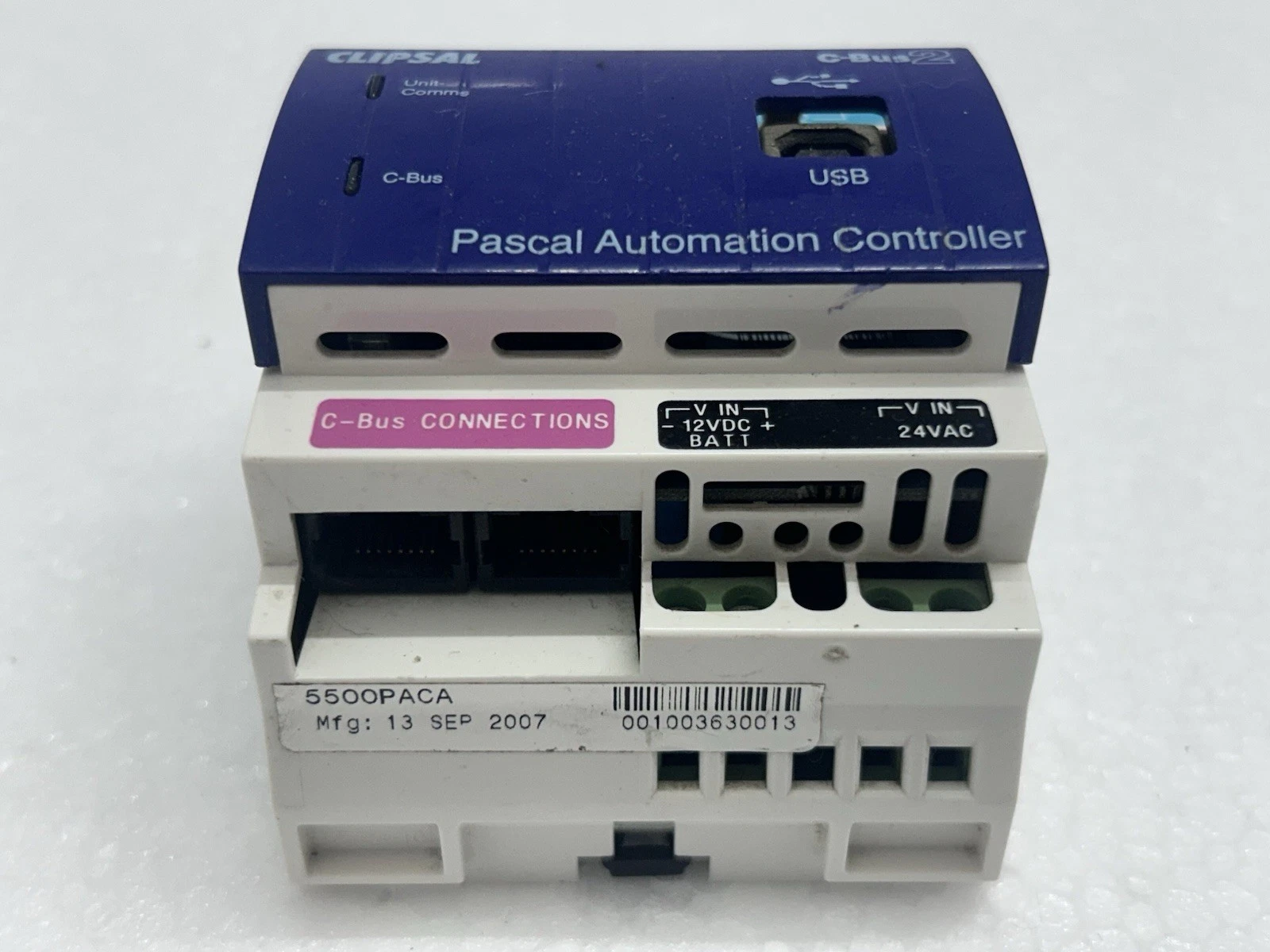

• Visual Reference: Please examine the high-resolution photos to verify the specific hardware version; the unit pictured is the exact Pascal Logic Controller you will receive.

Package Includes

1. 1 x Clipsal 5500PACA C-Bus Pascal Automation Controller (Used)
2. Note: Does not include serial programming cables or C-Bus patch leads. Programming requires the "PICED" software, available via Schneider Electric/Clipsal.
