DENVER TOOLRefurbished
BAND-ITRefurbished
BAND-IT DENVER TOOL Refurbished Standard Tooling Tooling
Model No.
DENVER TOOL
Warranty
N/A
Condition
Refurbished
Description
Product Overview

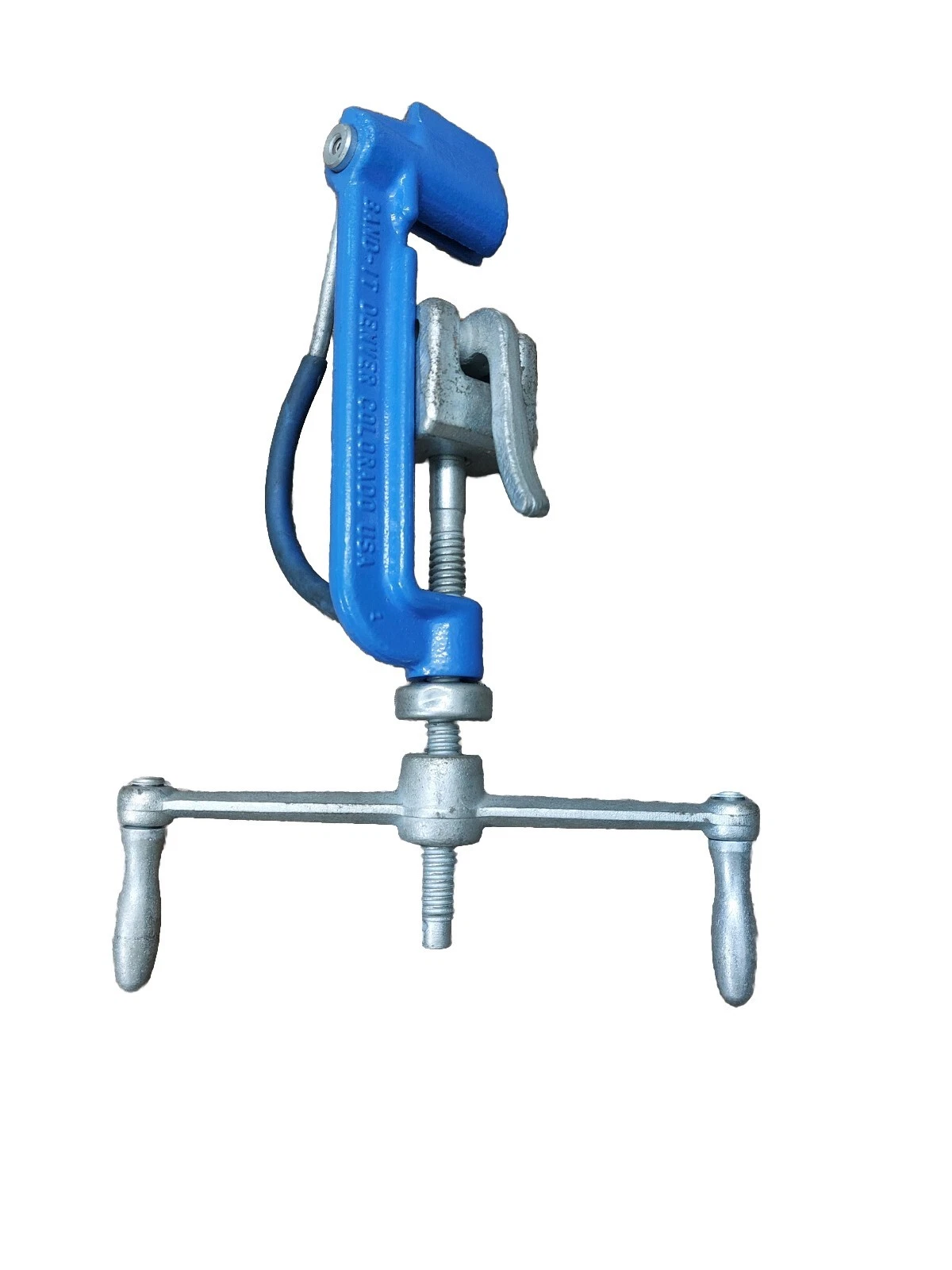

The BAND-IT C00169 Standard Tool is the industry-standard manual tensioning tool for stainless steel banding, buckles, and strapping. Manufactured in Denver, Colorado, this tool is renowned for its durability and "built-to-last" construction. This Refurbished unit has been professionally inspected and restored to ensure smooth mechanical operation, providing the high-tension force required for securing industrial hoses, pipe insulation, and structural mounting. It features a built-in cutter and a spring-loaded gripper lever for efficient, one-handed operation during the tensioning phase.
Key Features
- High Tensioning Capacity: Capable of delivering over 2,400 lbs of tension to secure heavy-duty bands and buckles.
- Integrated Cutter: Features a drop-forged cutting handle that cleanly shears stainless steel strapping after tensioning is complete.
- Spin-Handle Design: The classic "steering wheel" handle allows for controlled and incremental tensioning, reducing user fatigue during repetitive tasks.
- Corrosion Resistant: Finished with a durable blue epoxy powder coating to withstand harsh outdoor and marine environments.
- Tooling Versatility: Compatible with BAND-IT® Band, BAND-FAST®, and miscellaneous strapping in widths ranging from 3/16" to 3/4".
Item Condition (Refurbished)
- Functional Status: This tool has been disassembled, cleaned, and lubricated. The tensioning screw, gripper block, and cutting blade have been verified for optimal performance.
- Physical State: The frame may show cosmetic signs of previous use, such as minor paint touch-ups or superficial scuffs, but the mechanical integrity is equivalent to a new unit.

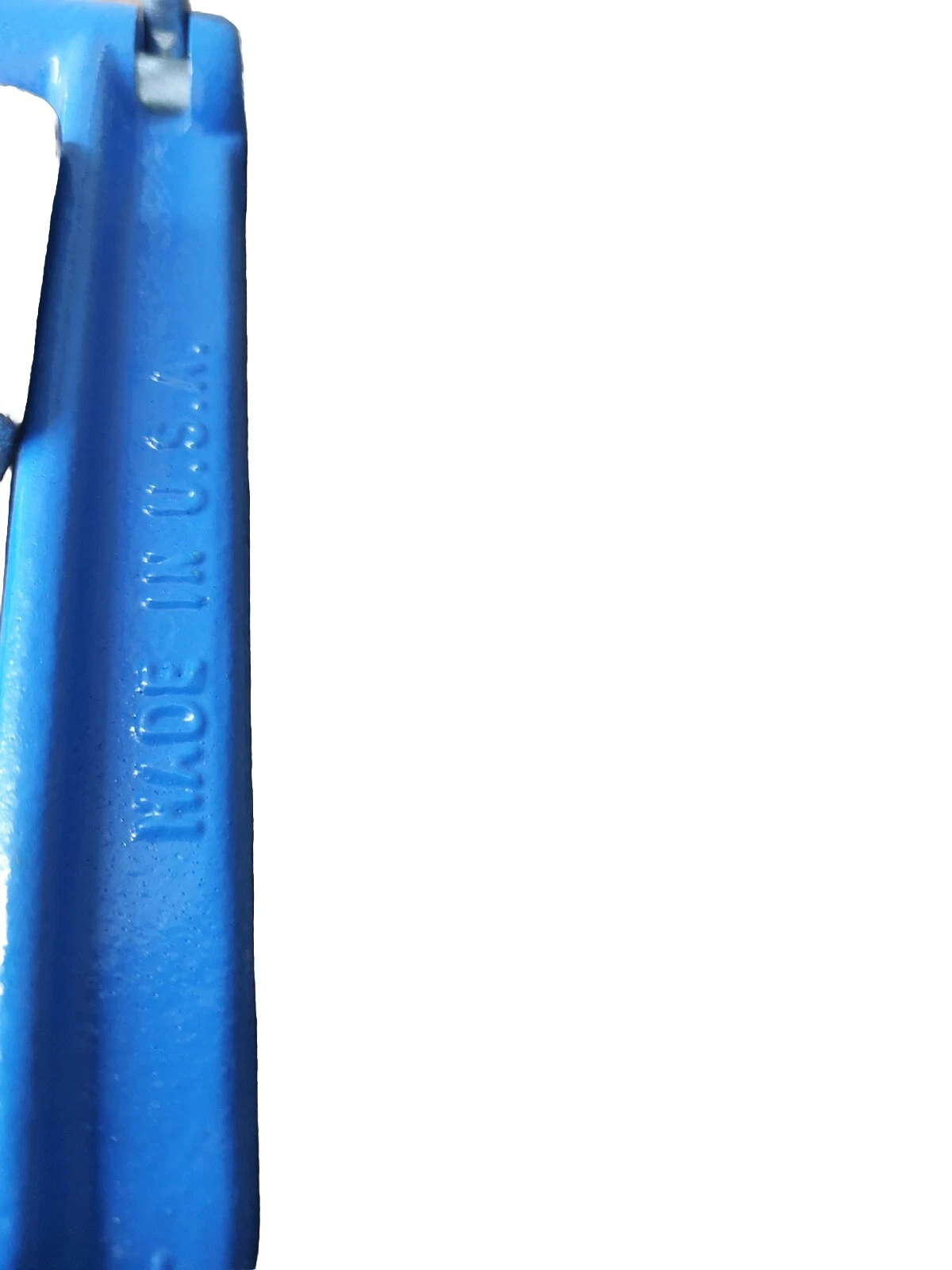

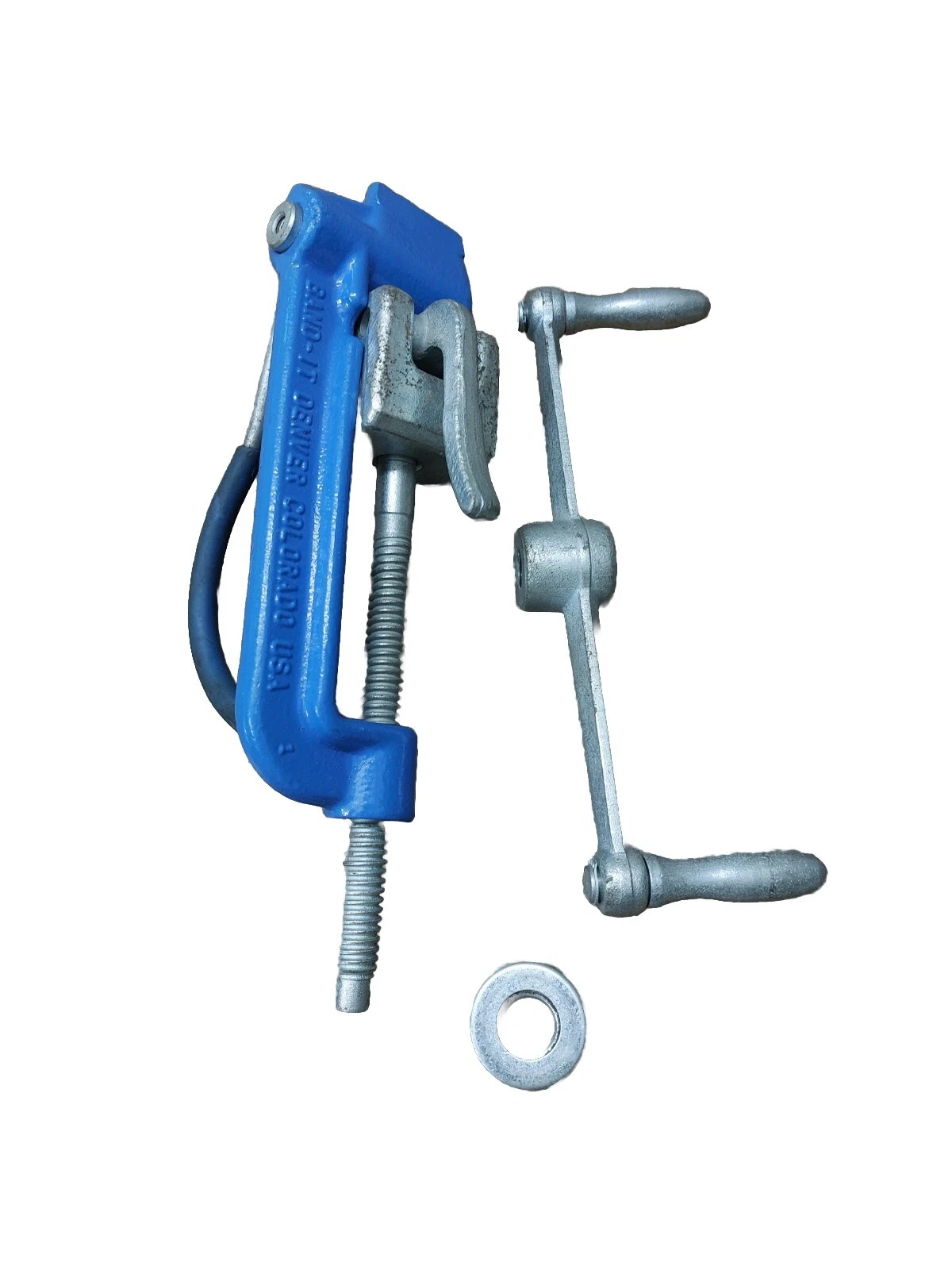

- Visual Reference: Please refer to the high-resolution images to inspect the condition of the gripper teeth and the cutting edge; the unit pictured is the exact tool you will receive.
- Note: As a refurbished industrial tool, it has been recalibrated to ensure the gripper does not slip under high-load conditions.
Package Includes
- 1 x BAND-IT Denver Standard Tensioning Tool (Refurbished)
- Note: Includes the tool only. Stainless steel banding and buckles are not included and must be sourced separately.
Technical Specifications
FinishBlue Epoxy Powder Coat
OriginDenver, Colorado, USA
Weight4.3 lbs (1.95 kg)
MechanismThreaded Tension Screw with Spring-Loaded Gripper
DimensionsApprox. 11.5 x 3.5 x 3.0 inches
Max Tension2,400+ lbs
ManufacturerBAND-IT-IDEX, Inc.
Model NumberC00169 (Standard Tool)
Product TypeManual Banding & Tensioning Tool
Band Width Range3/16" (4.76mm) to 3/4" (19.05mm)
Band Thickness RangeUp to 0.030" (0.76mm)
Material CompatibilityStainless Steel, Monel, Carbon Steel
