ALLEN BRADLEY 2098-DSD-020 Used Working Servo Drive

Product Overview

The Allen-Bradley 2098-DSD-020 (Series C) is a high-performance Ultra 3000 Digital Servo Drive, designed to provide precise motion control for a wide range of industrial applications. This 2kW drive features a versatile power stage capable of operating on both single-phase and three-phase input voltages, making it adaptable to various factory power infrastructures. As a Used Working unit, this Series C driver offers a reliable, field-proven solution for controlling Allen-Bradley MP-Series, 1326AB, and F-Series servo motors in automated assembly, packaging, and material handling systems.

Key Features

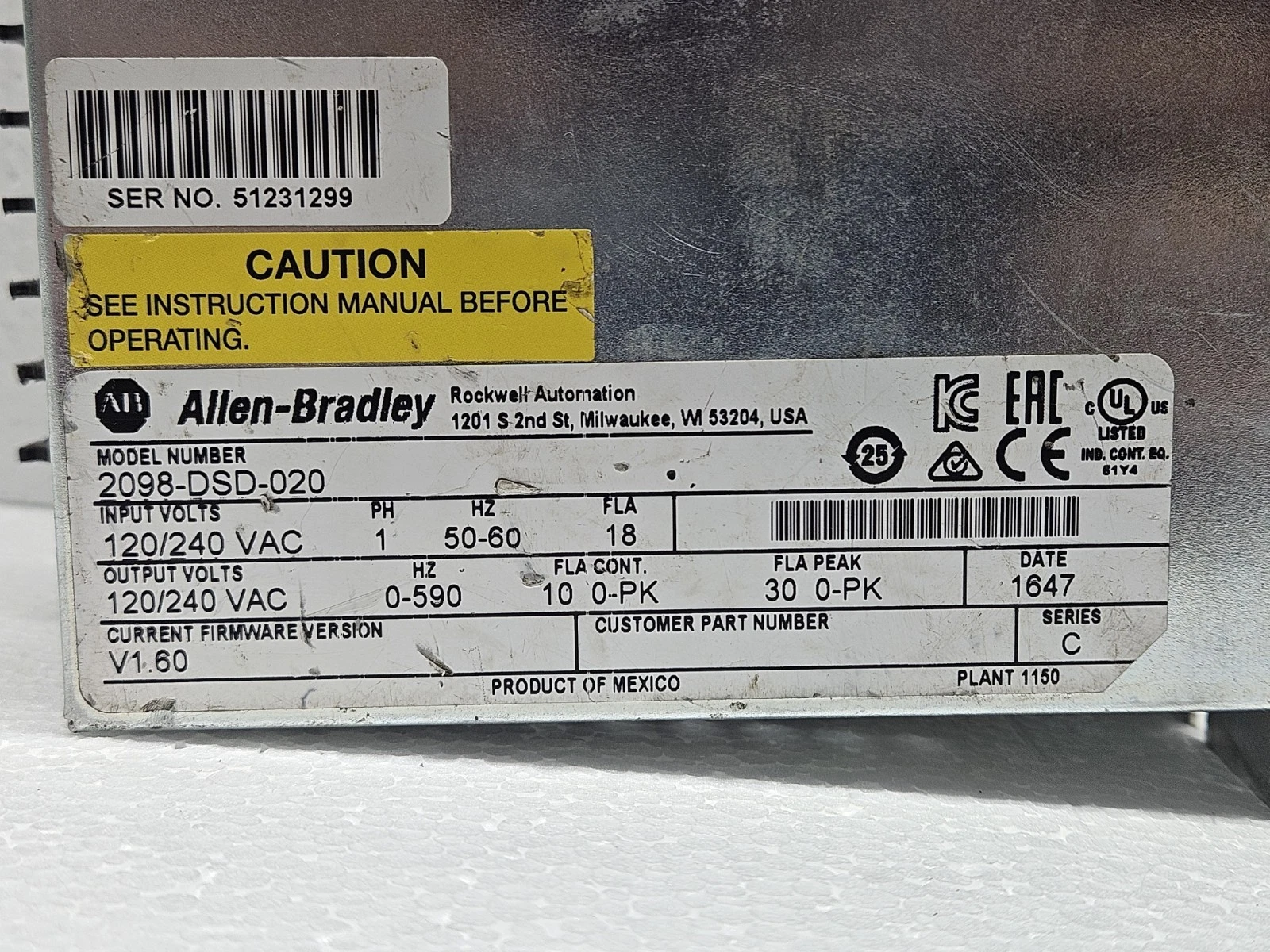

• Flexible Power Input: Supports an input voltage range of 100-240V AC (Single or Three-Phase), providing 20 Amps of peak output current.
• High-Performance Control: Supports multiple operating modes including indexing, electronic gearing, and analog velocity/torque control.
• Digital Feedback Support: Compatible with high-resolution incremental encoders and Stegmann high-resolution absolute encoders for superior positioning accuracy.
• Series C Enhancements: Includes the hardware and firmware refinements of the "C" revision, offering improved thermal management and robust internal logic compared to earlier series.
• RS-232/485 Serial Communication: Integrated serial port for easy commissioning and parameter adjustment via Ultraware software.

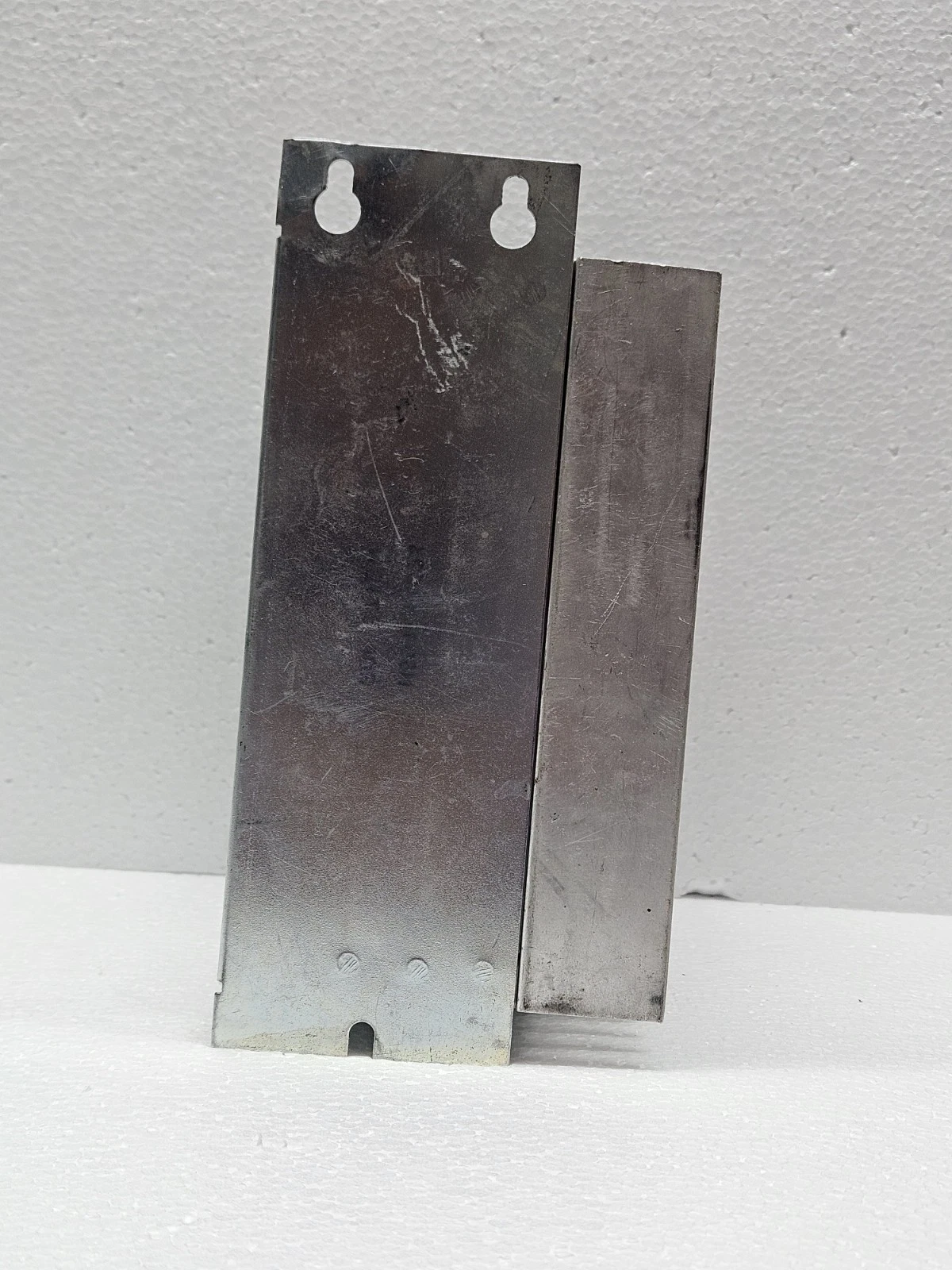

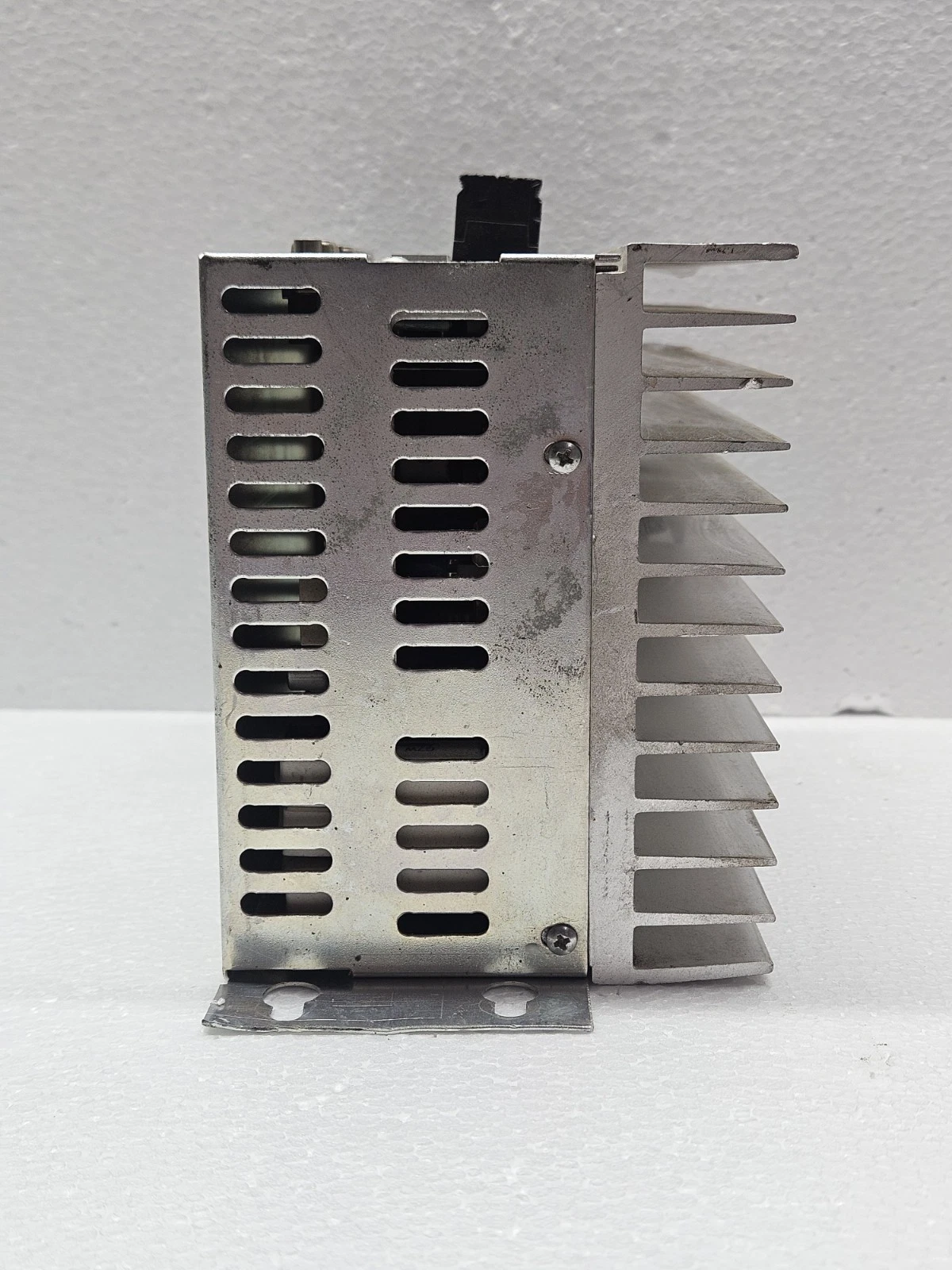

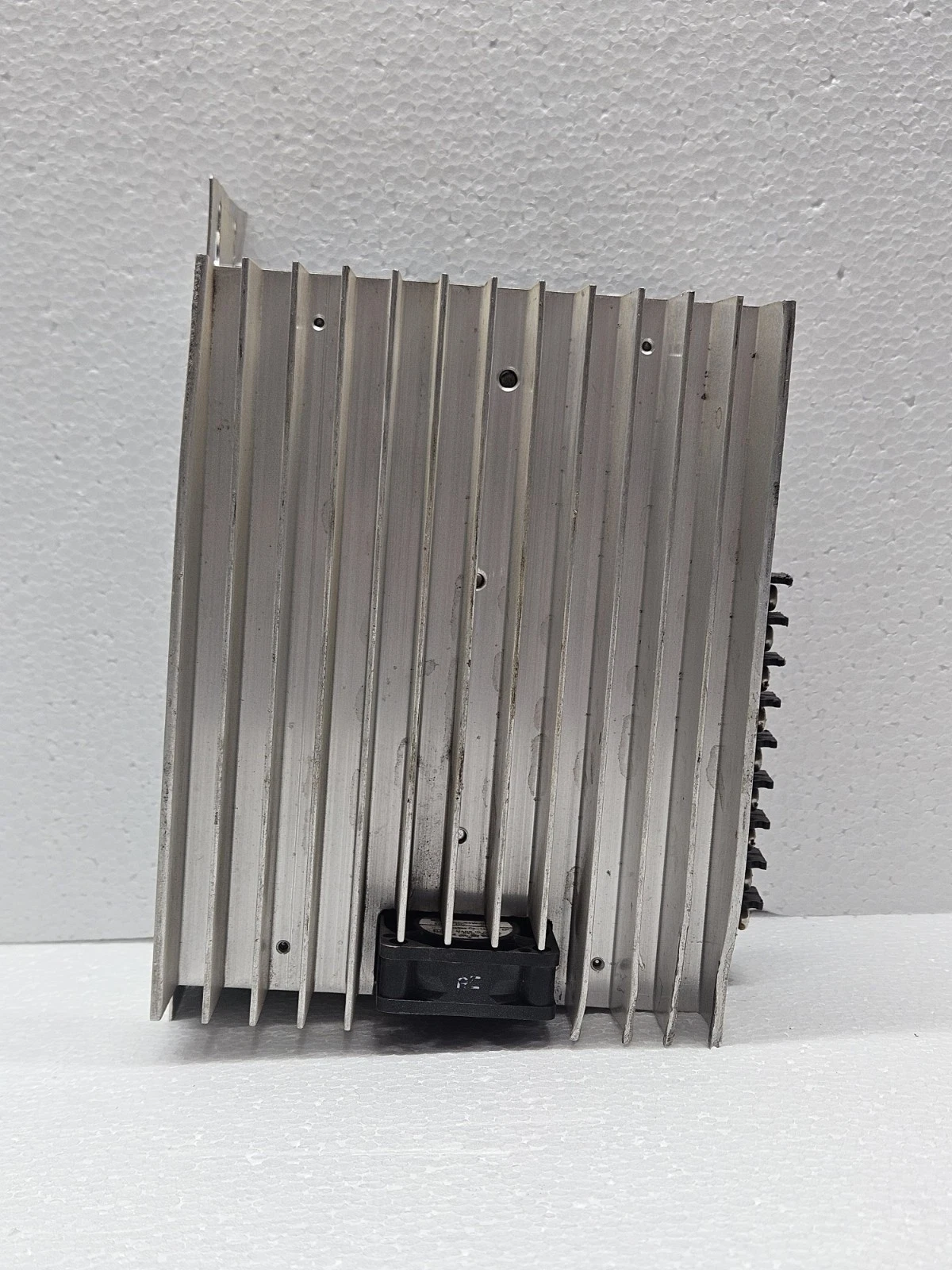

• Compact Footprint: Designed for efficient panel mounting with a rugged heat sink that allows for high-density side-by-side installation.
• Digital I/O: Features 8 selectable inputs and 4 selectable outputs, plus a dedicated relay output for status and alarm interfacing.

Item Condition (Used Working)

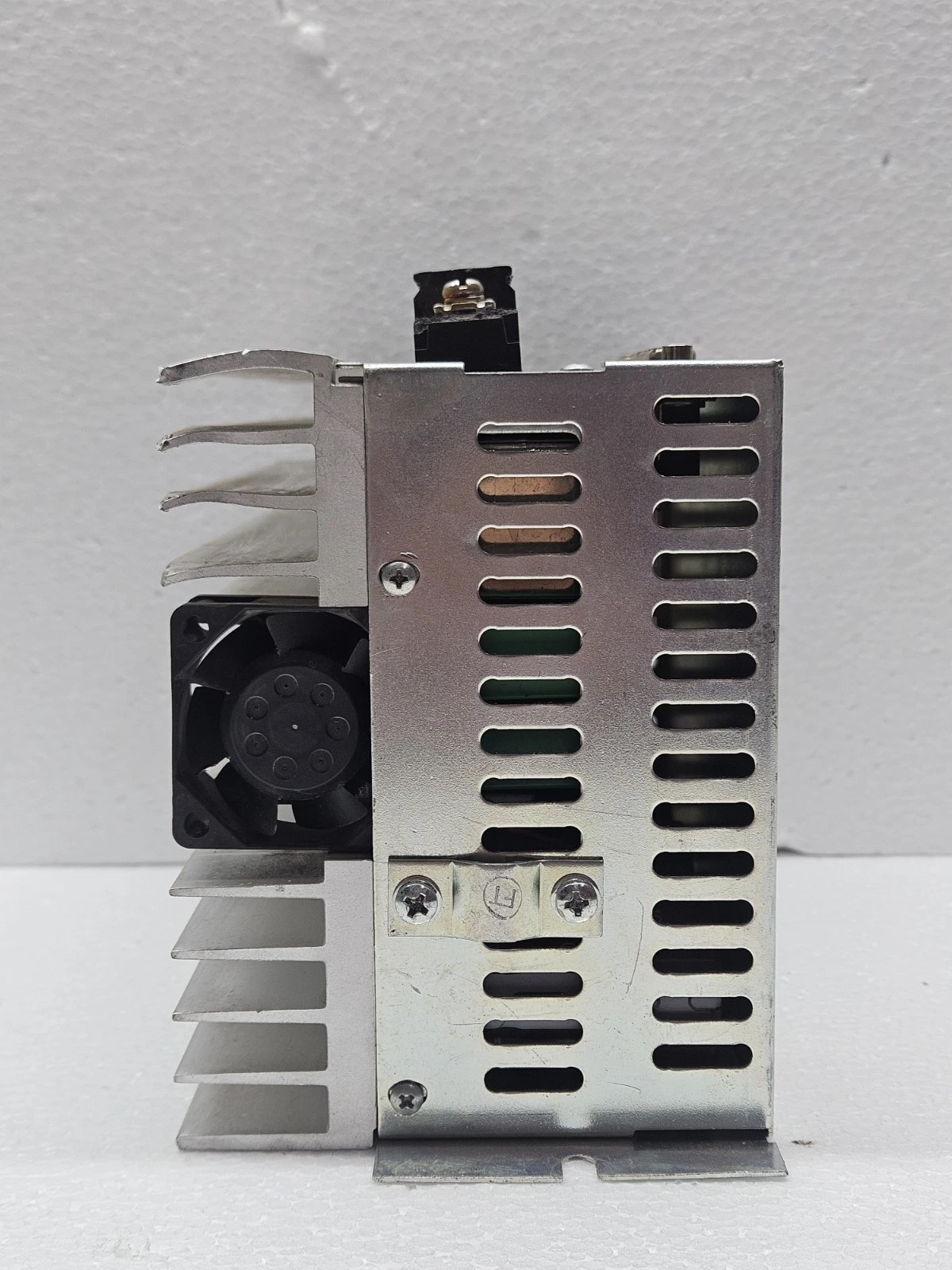

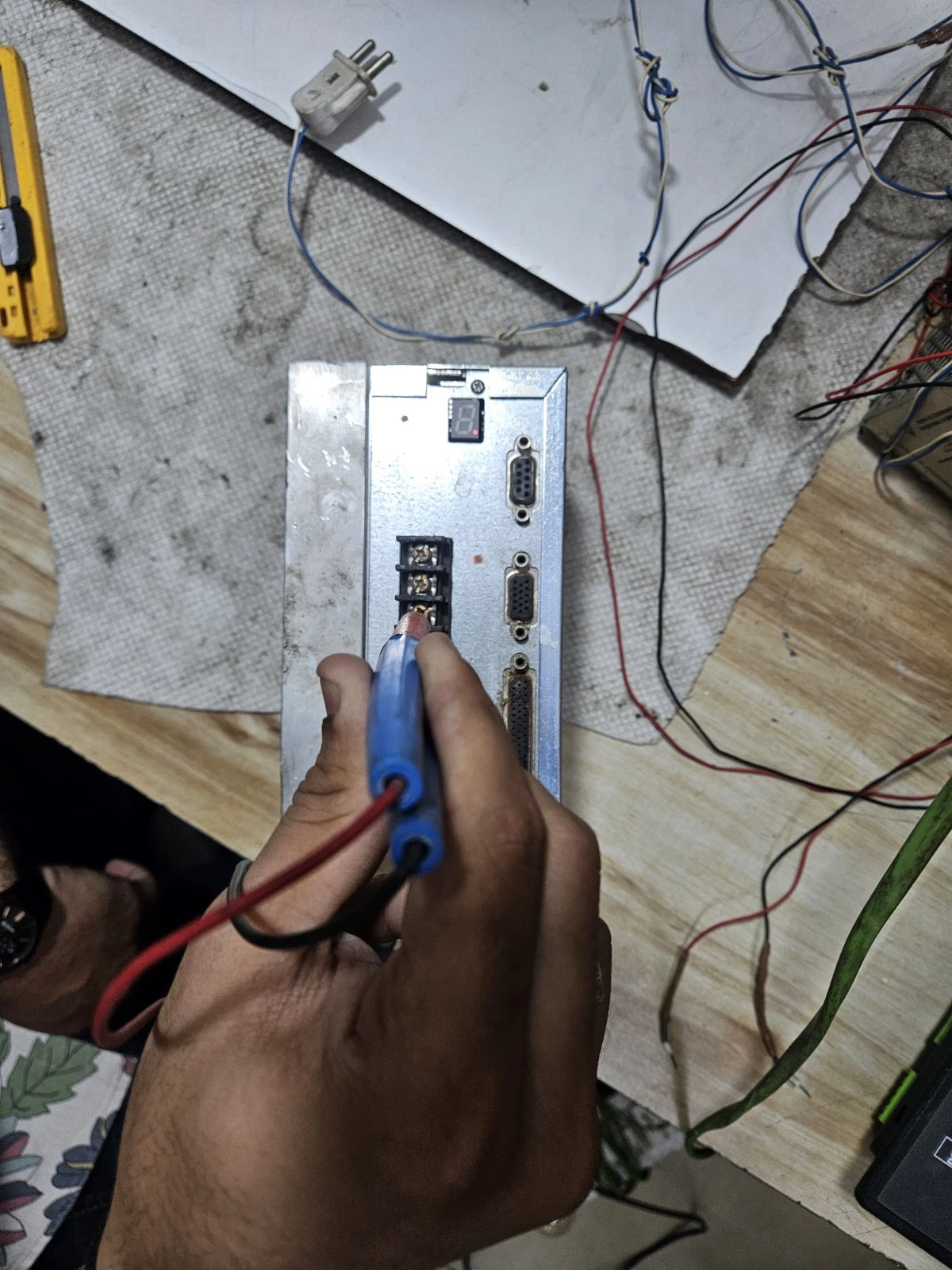

• Functional Status: Used Working. This drive has been professionally removed from a functional motion control cabinet. It has been power-tested, and the internal logic, cooling fan, and power stage have been verified.

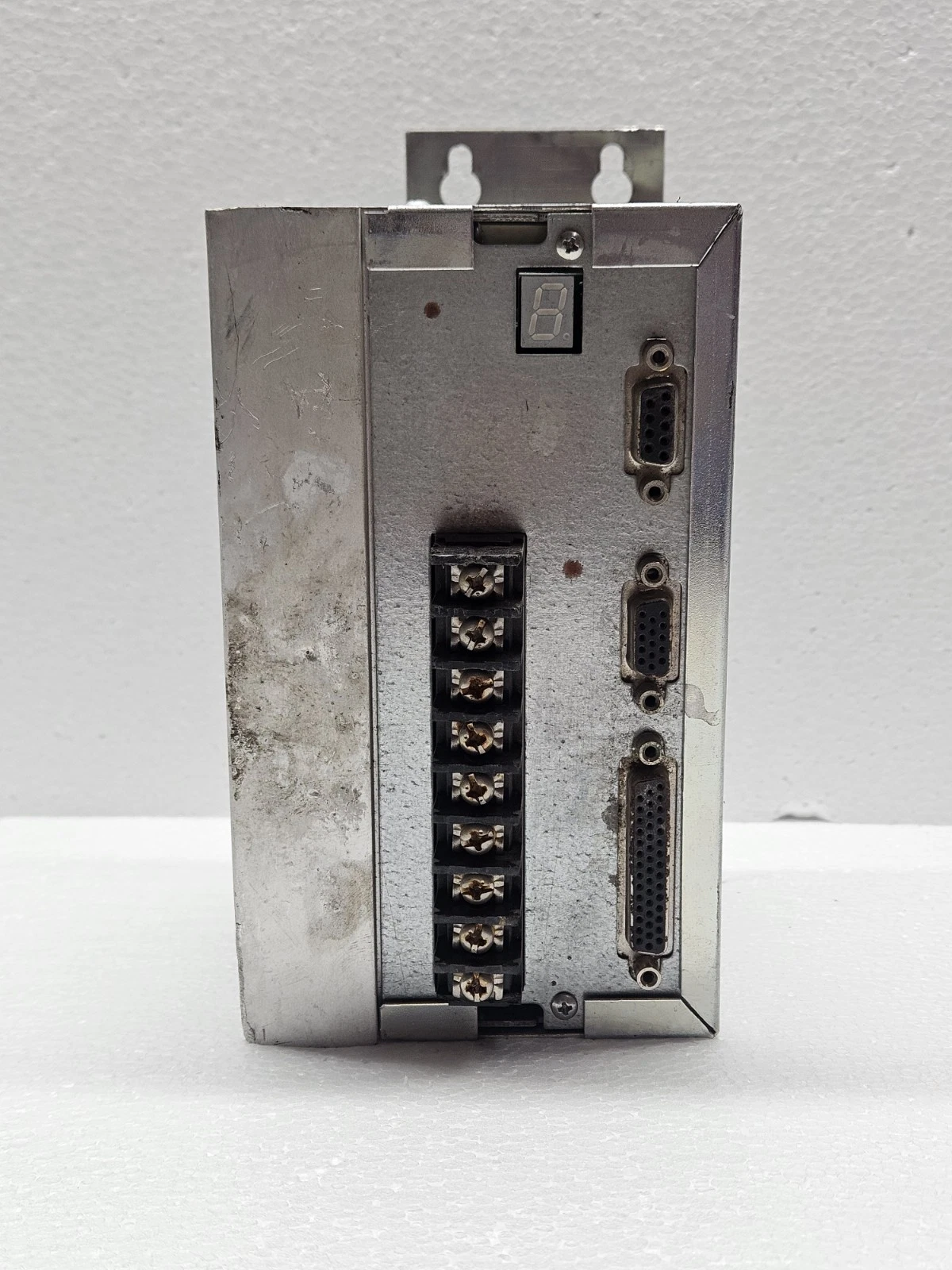

• Physical State: Good industrial condition. The terminal blocks are intact, and the heat sink fins are clear of debris. The front-panel status display is bright and legible.
• Technical Integrity: No "E01" or "E02" (IPM/Overcurrent) faults detected during testing. The unit successfully communicates with Ultraware software.
• Note: Professional installation by a motion control technician is recommended. Please ensure the drive's parameters (Motor ID, Feedback type) are correctly configured for your specific servo motor before commissioning.

Package Includes

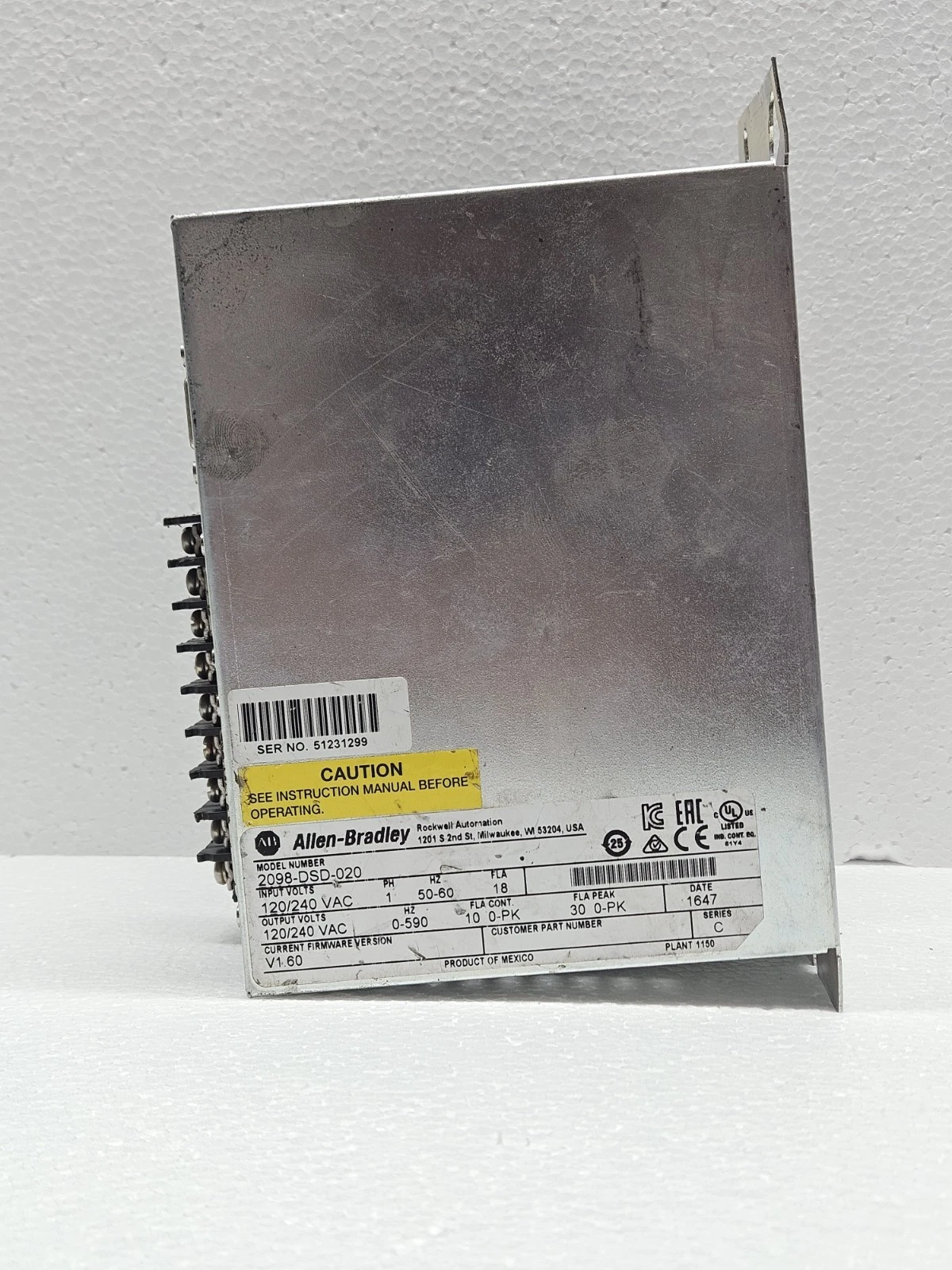

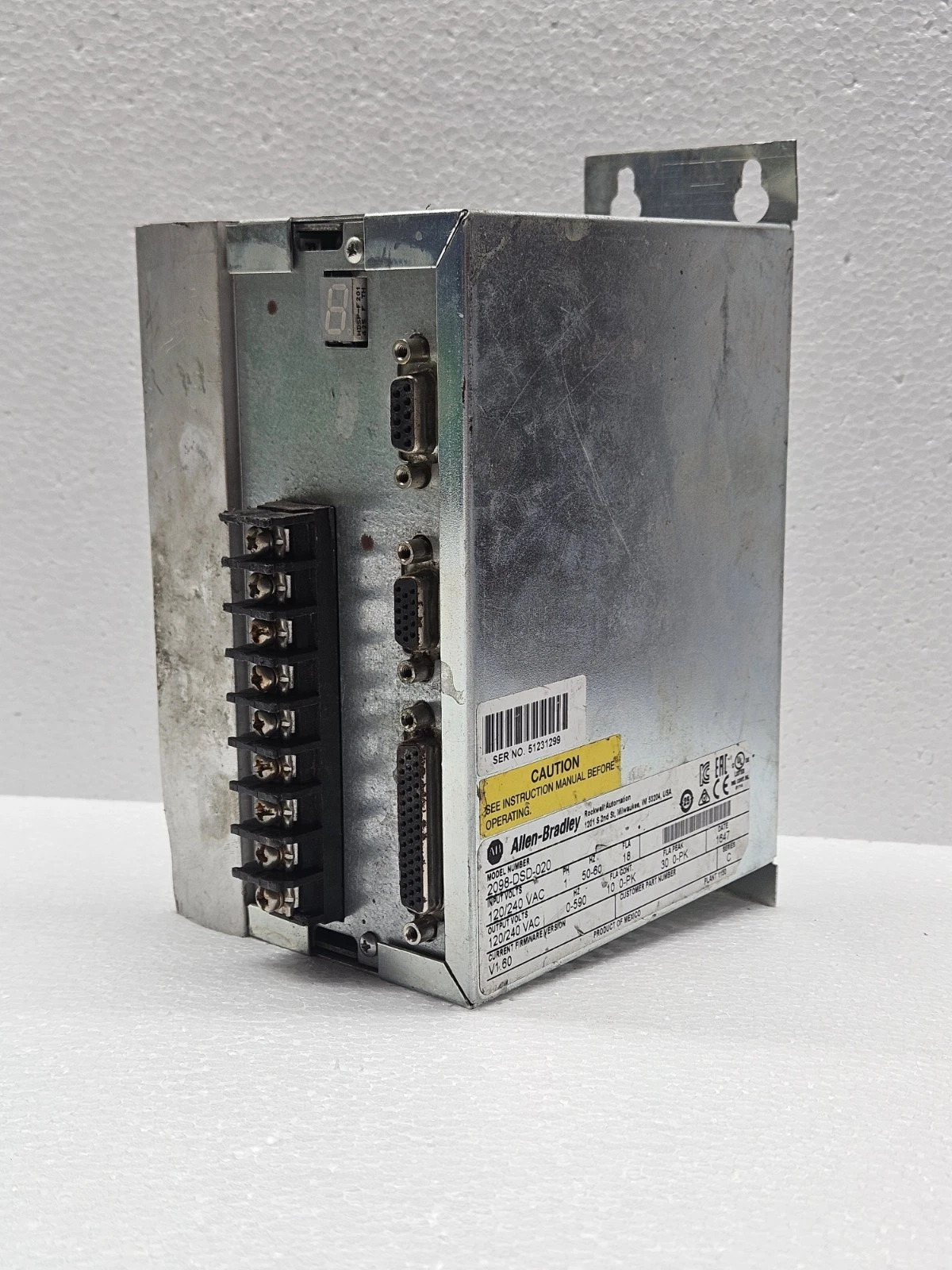

1. 1 x Allen-Bradley 2098-DSD-020 Ultra 3000 Servo Drive (Series C)
