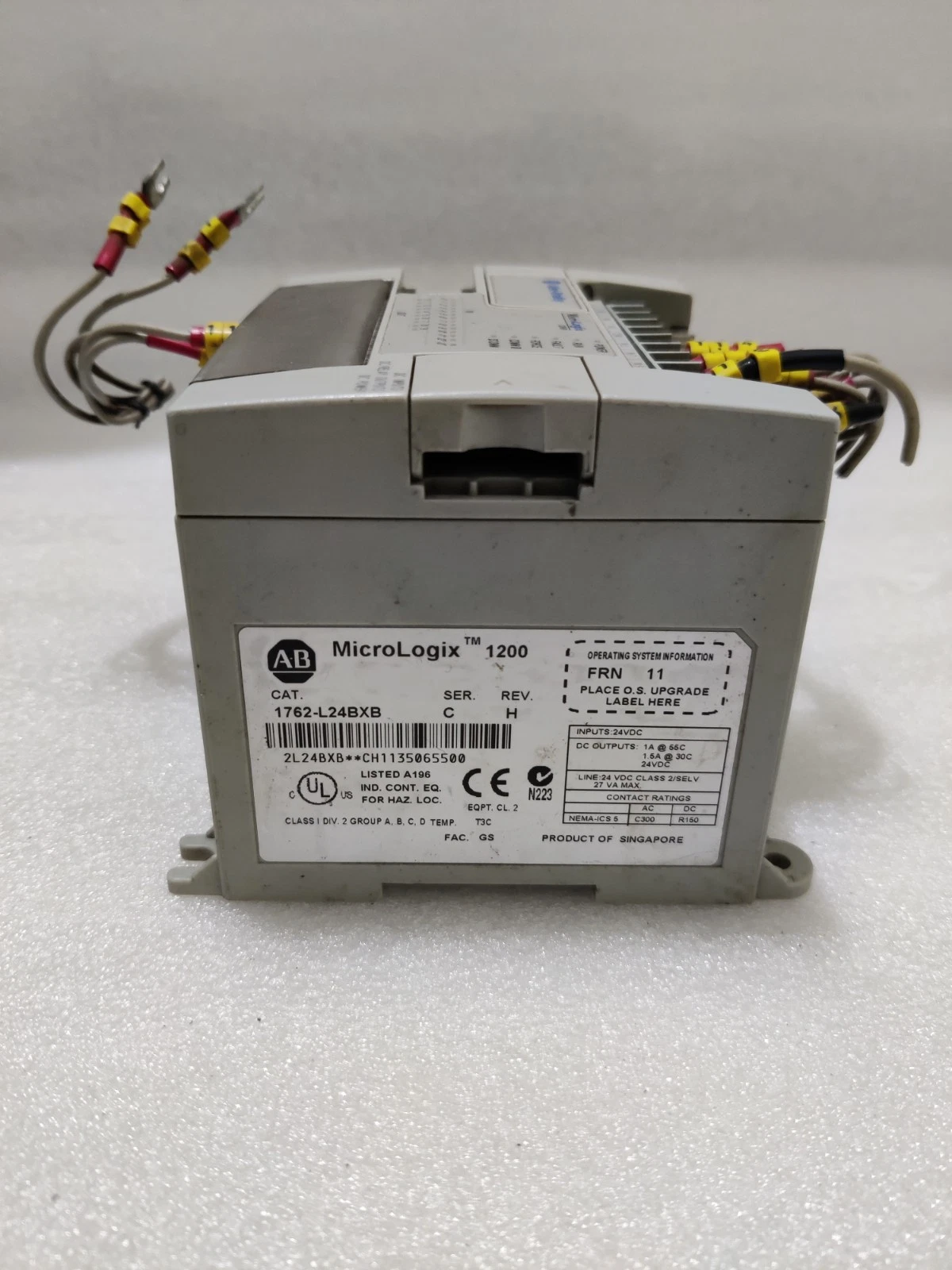

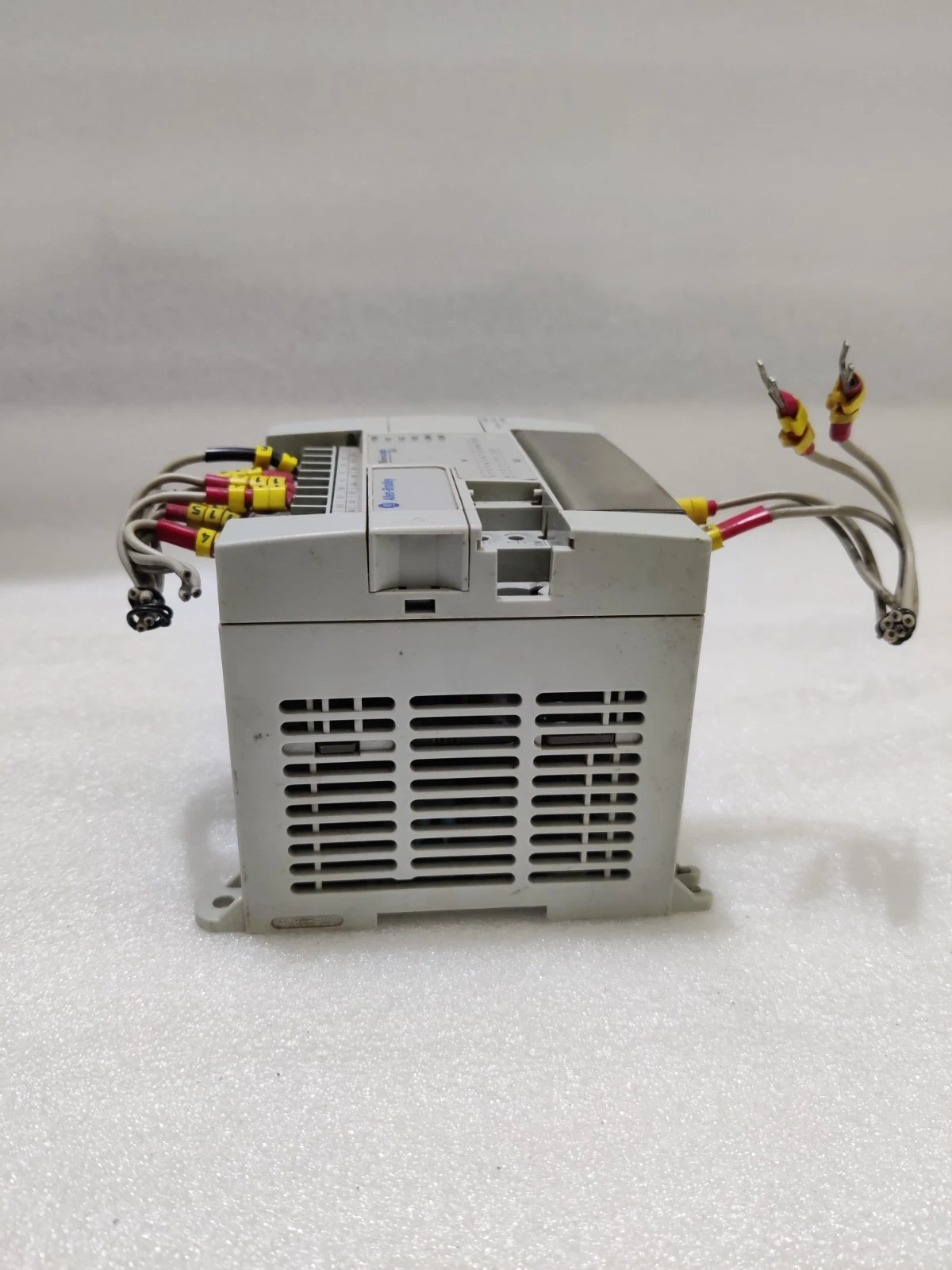

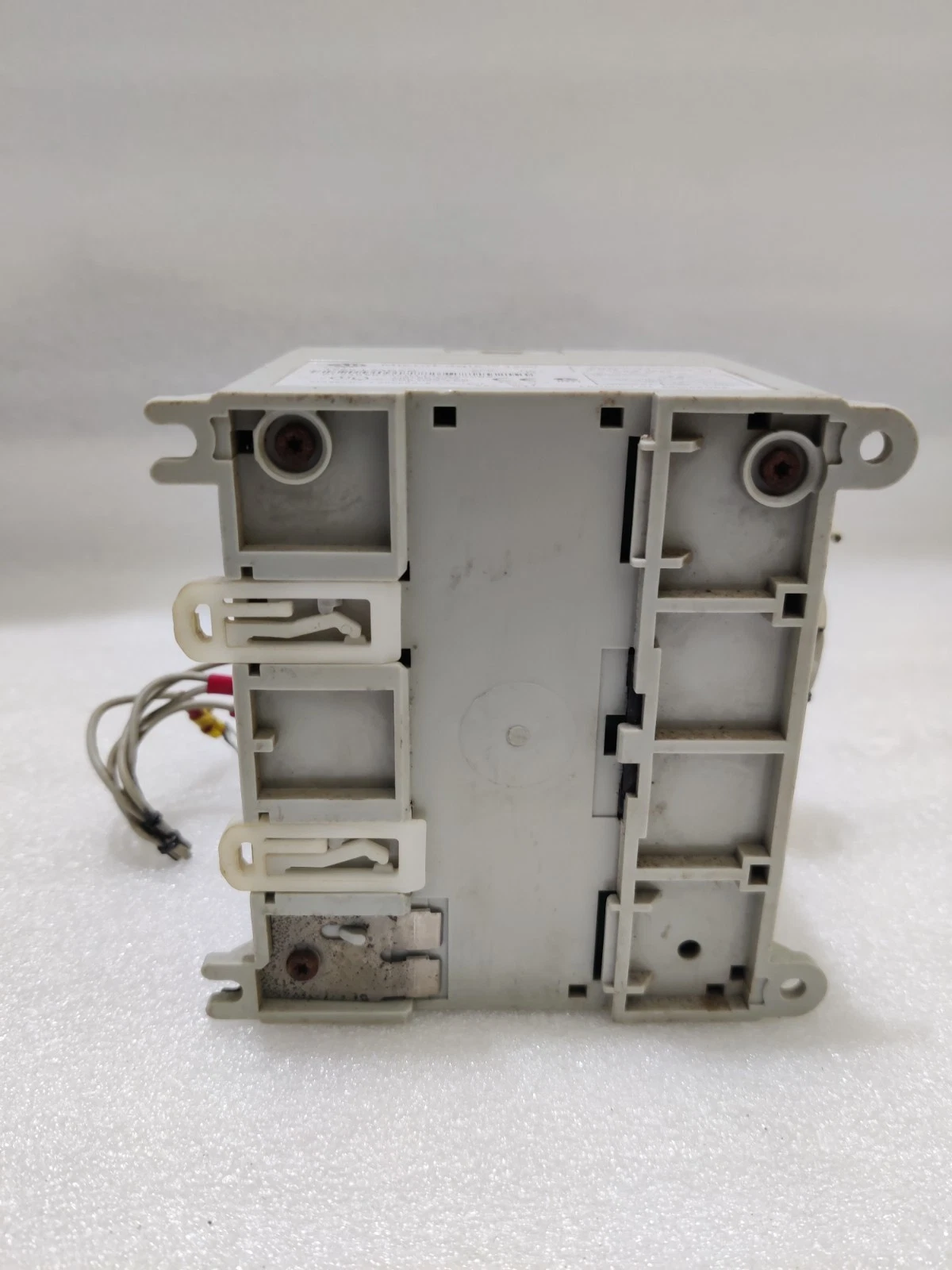

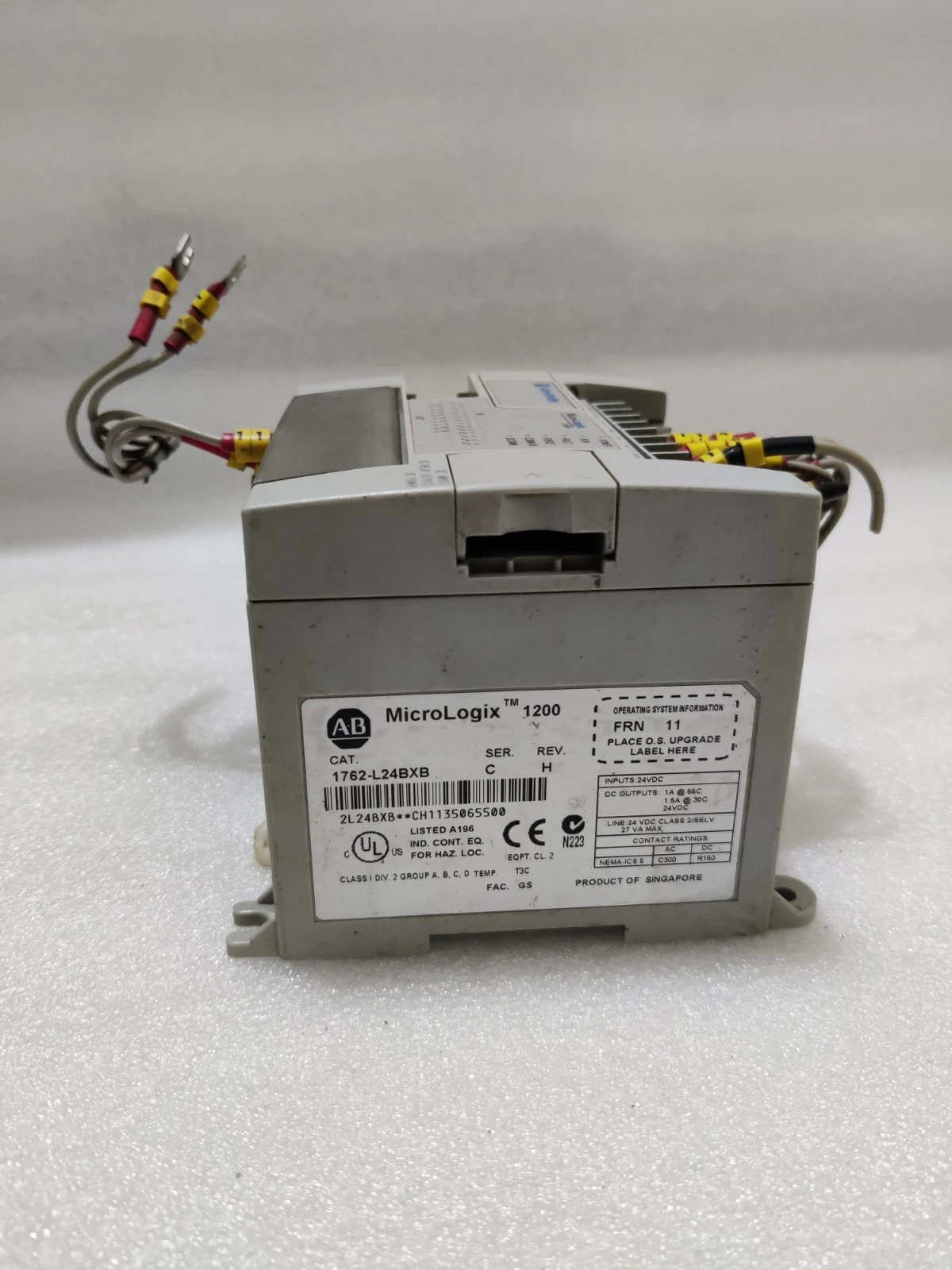

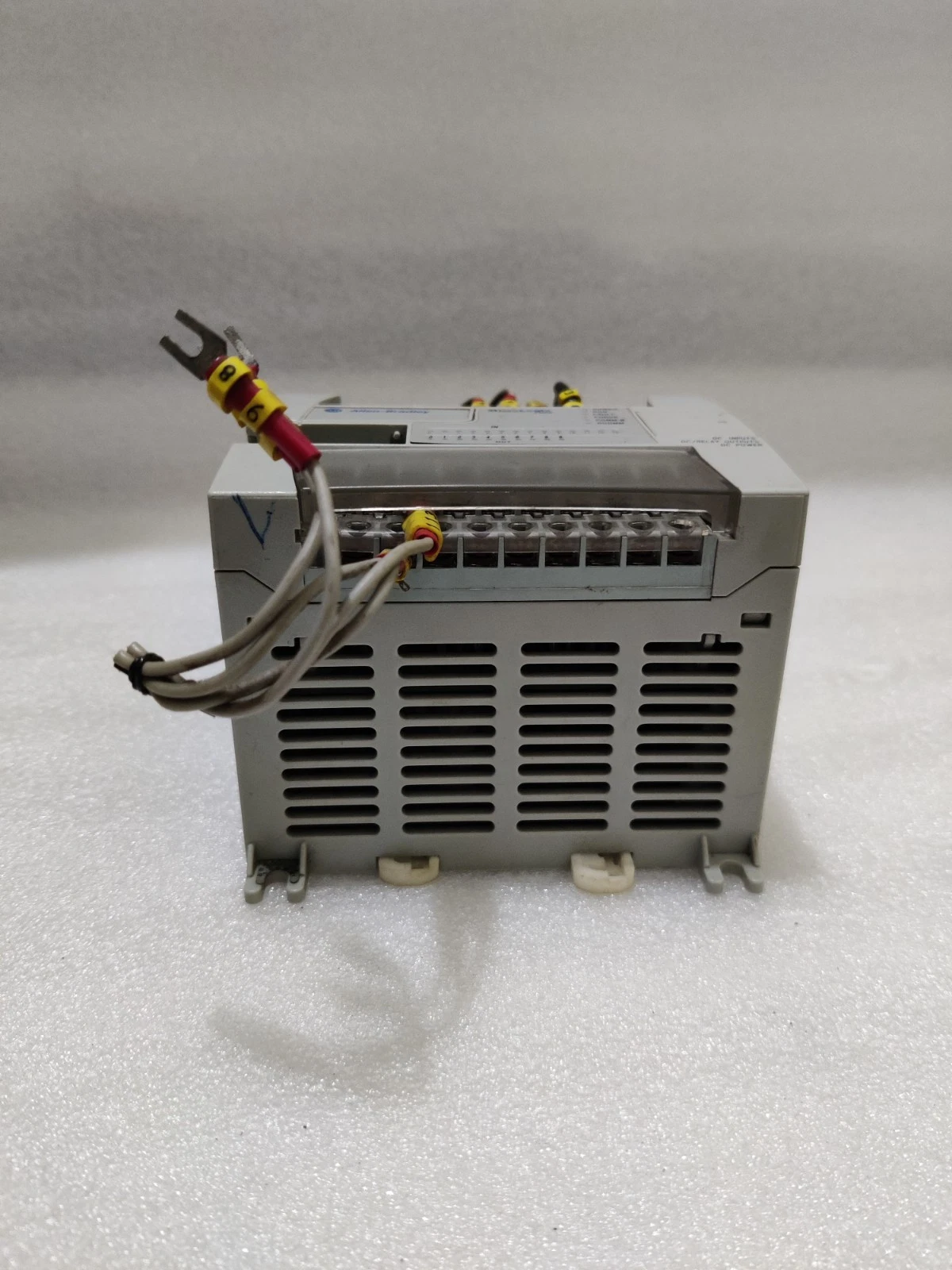

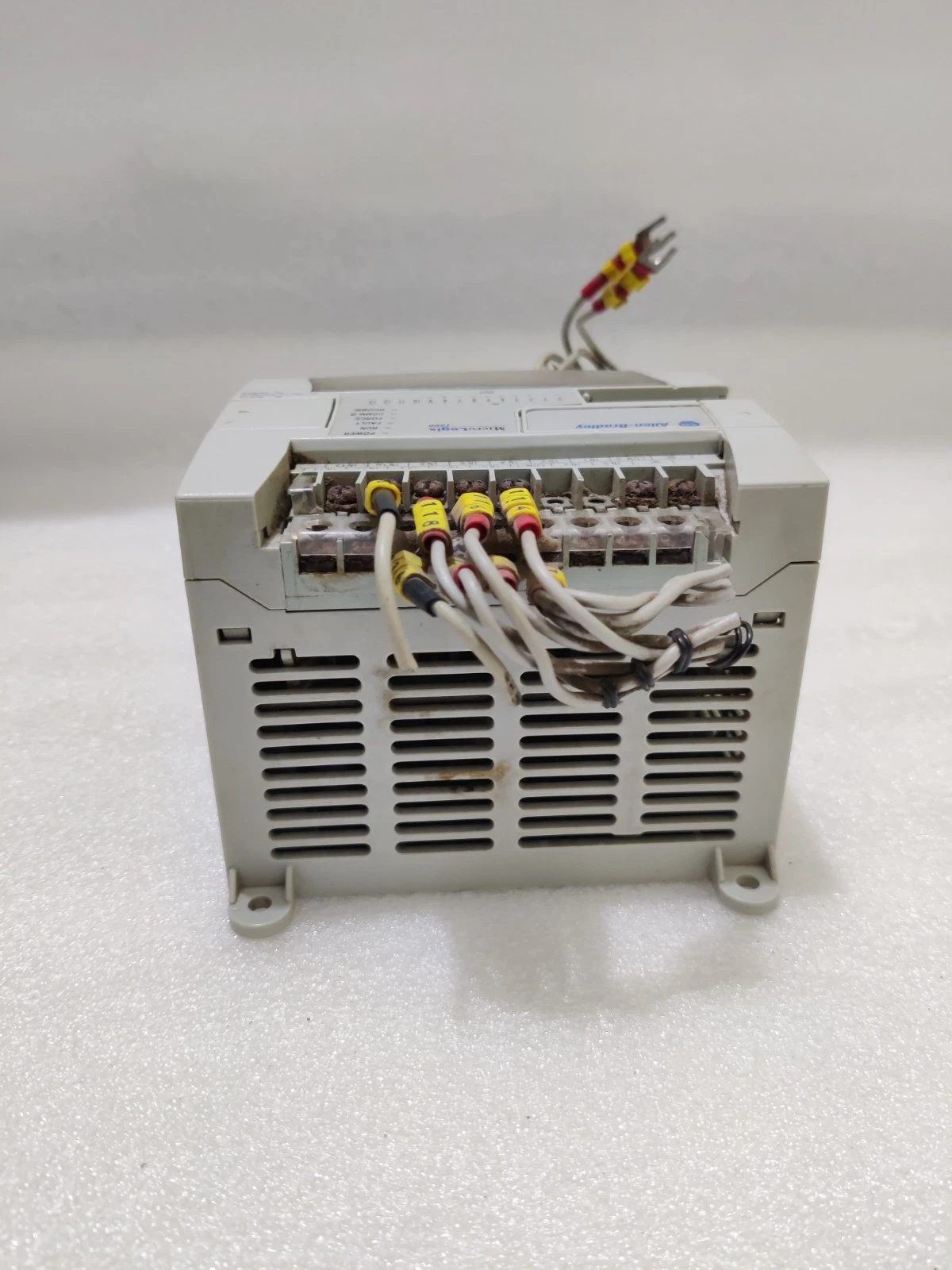

ALLEN BRADLEY 1762-L24BXB Used Working MicroLogix 1200 PLC Controller

Product Overview

The Allen-Bradley 1762-L24BXB (MicroLogix 1200) is a versatile and compact controller designed for robust industrial automation. As a Series C unit with Firmware Revision 11 (FRN:11), it offers refined performance and advanced features for mid-range applications. This specific "BXB" model features a hybrid output configuration, providing both high-speed FET outputs for precision control and relay outputs for high-current switching. As a Used Working unit, it is a reliable choice for maintaining existing control systems or developing cost-effective automation for packaging, material handling, and general manufacturing.

Key Features

• Flexible Hybrid Outputs: Equipped with 10 Relay outputs for high-load switching and 4 FET outputs (including 2 high-speed outputs) for pulse-width modulation (PWM) or high-speed motion control.
• Integrated 24V DC Inputs: Features 14 digital inputs, including several high-speed inputs (up to 20 kHz) for interfacing with encoders or high-speed sensors.
• Advanced Series C Enhancements: Series C hardware provides improved diagnostic capabilities and enhanced reliability over earlier versions.
• Firmware Revision 11 (FRN:11): Supports modern instruction sets and communication enhancements compatible with RSLogix 500 programming software.
• Expandability: Supports up to six 1762 expansion I/O modules, allowing the system to grow with your application's complexity.
• Dual Communication Capability: Features an integrated RS-232 (8-pin mini-DIN) port that supports DF1, DH-485, Modbus RTU, and ASCII protocols.
• Trim Potentiometers: Includes two built-in analog trim pots, allowing operators to manually adjust internal data values (like timers or counters) without a programming terminal.

Item Condition (Used Working)

• Functional Status: Used Working. This PLC has been professionally bench-tested. The unit powers up correctly, the "OK" status LED is green, and communication with RSLogix 500 has been verified.
• Physical State: Clean industrial condition. The terminal doors are intact, and the screw terminals are free of corrosion. The plastic housing shows minor signs of previous mounting but no cracks.
• Technical Integrity: All 14 inputs and 14 outputs have been cycle-tested for responsiveness. The internal memory has been cleared of any previous ladder logic.
• Note: Professional installation is required. This unit operates on a 24V DC power supply; connecting it to AC power will cause permanent damage. Ensure proper polarity at the +24V and COM terminals.

Package Includes

1. 1 x Allen-Bradley 1762-L24BXB Series C FRN:11 Controller
