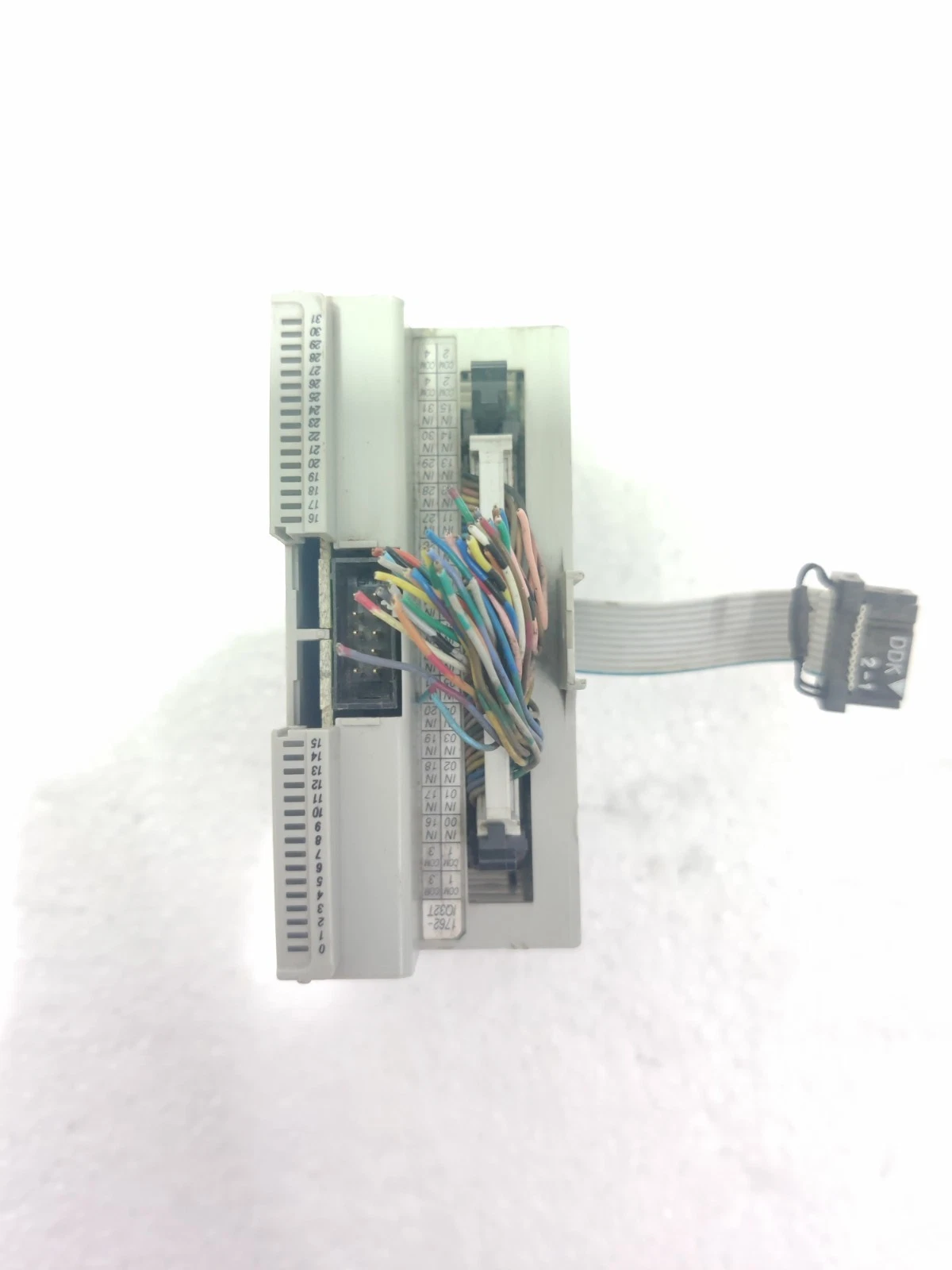

ALLEN BRADLEY 1762-IQ32T Used Working Digital Input

Product Overview

The Allen-Bradley 1762-IQ32T is a high-density MicroLogix Expansion Digital Input Module, specifically designed to expand the I/O capacity of MicroLogix 1100, 1200, and 1500 controller systems. This module features 32 discrete input points, allowing for significant sensing capability in a very small footprint. As a Used Working unit, it provides a reliable and cost-effective way to monitor a large number of 24V DC field devices, such as push buttons, limit switches, and proximity sensors, while conserving valuable DIN rail space in compact control cabinets.

Key Features

• High-Density Inputs: Provides 32 digital input channels in a single expansion module, maximizing the efficiency of your PLC rack.
• 24V DC Sink/Source: Supports both sink and source wiring configurations, offering flexibility to match various industrial sensor types.
• Fast Response Time: Optimized for high-speed signal processing, ensuring that state changes in the field are captured accurately by the MicroLogix CPU.
• Compact Modular Design: The slim profile allows for easy mounting and connection via the integrated ribbon cable expansion bus.
• Status Diagnostics: Equipped with front-panel LED indicators that provide immediate visual confirmation of individual input activity and module health.
• Rugged Construction: Built to Allen-Bradley’s industrial standards for shock, vibration, and temperature resistance in demanding factory environments.

Item Condition (Used Working)

• Functional Status: Used Working. This module has been professionally removed from an operational system. It has been powered up and all 32 input points have been verified for signal detection using a MicroLogix test bench.
• Physical State: Clean industrial condition. The expansion ribbon cable and connector are in excellent shape. The terminal screws are free of stripping and turn easily.
• Technical Integrity: No signs of overheating or electrical stress. The unit is ready for immediate installation and configuration within your RSLogix 500 project.
• Note: Professional installation is recommended. This module utilizes a high-density terminal block; please ensure your wiring is properly organized to maintain clear diagnostics.

Package Includes

1. 1 x Allen-Bradley 1762-IQ32T MicroLogix 32-Point Digital Input Module
2. Integrated expansion bus ribbon cable
